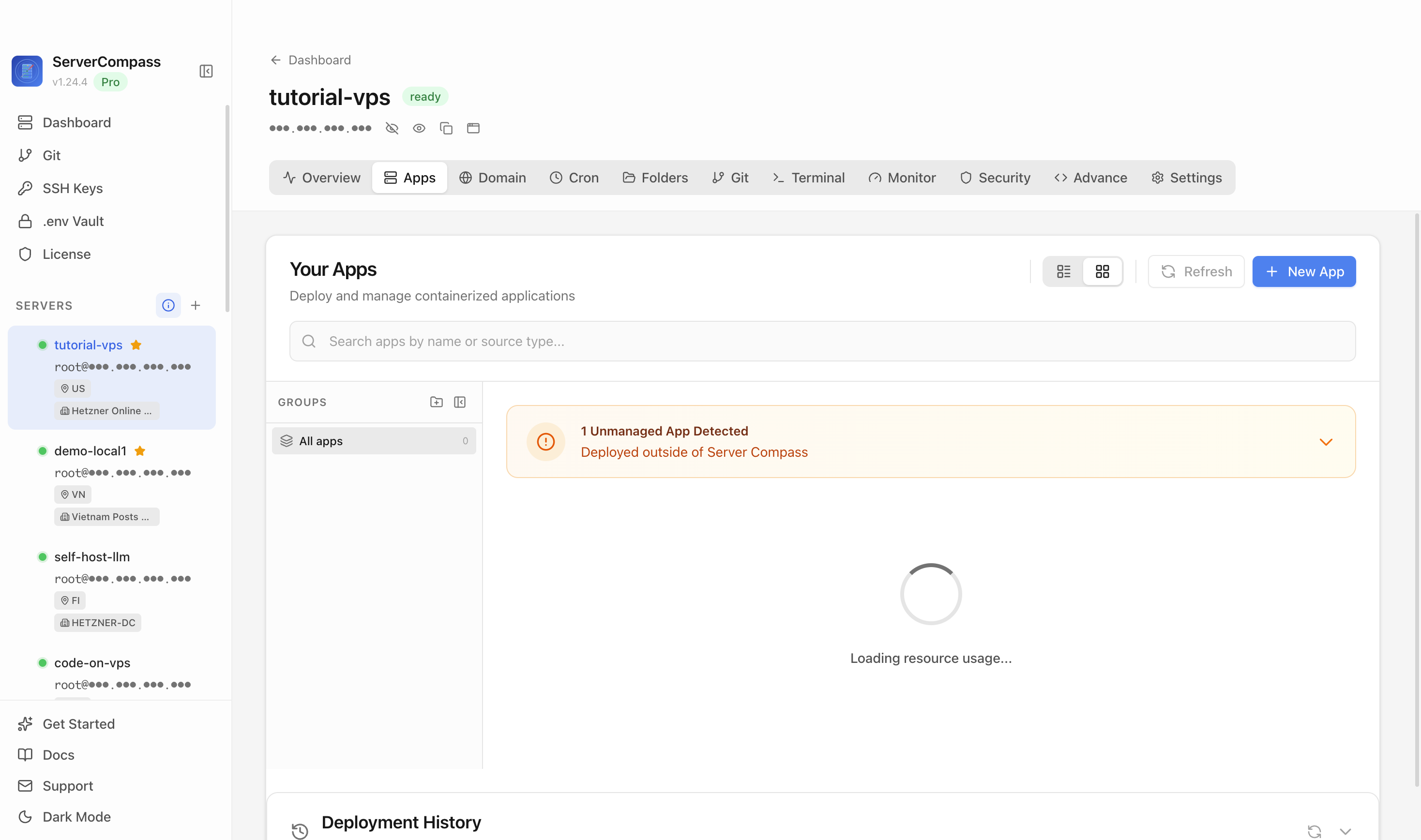

Step 1Open the server Apps tab
Select the tutorial-vps VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
Elasticsearch
Database2048MB+ RAM
Distributed search and analytics engine (512MB heap for development)
databasesearchanalyticselasticsearch
Deploy Elasticsearch in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select Elasticsearch
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy Elasticsearch on a VPS with Server Compass
Use the Elasticsearch template in Server Compass to deploy a secured single-node search and analytics engine on your VPS, then verify cluster health from inside the container.
About 10 minutesBrowser verified
2

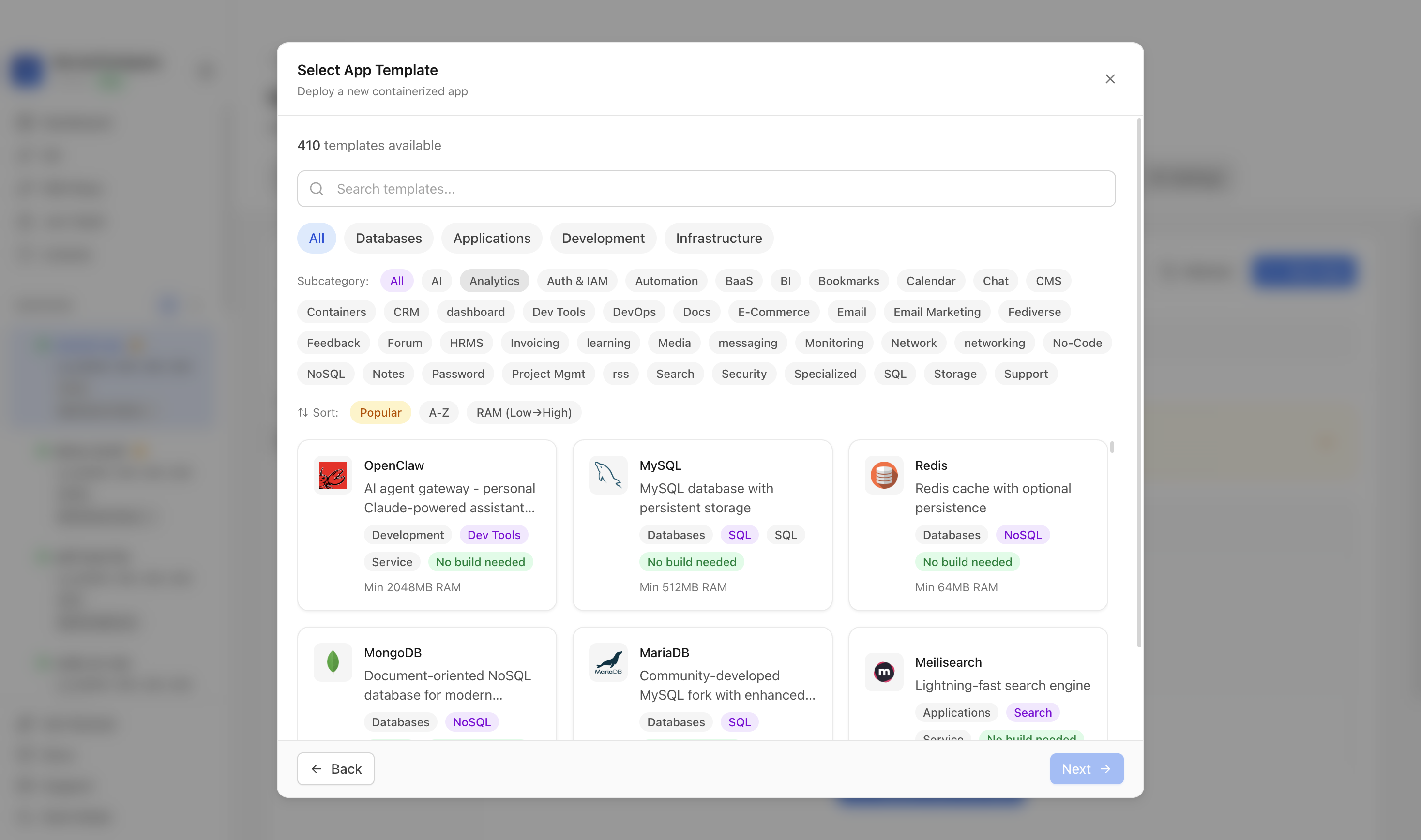

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

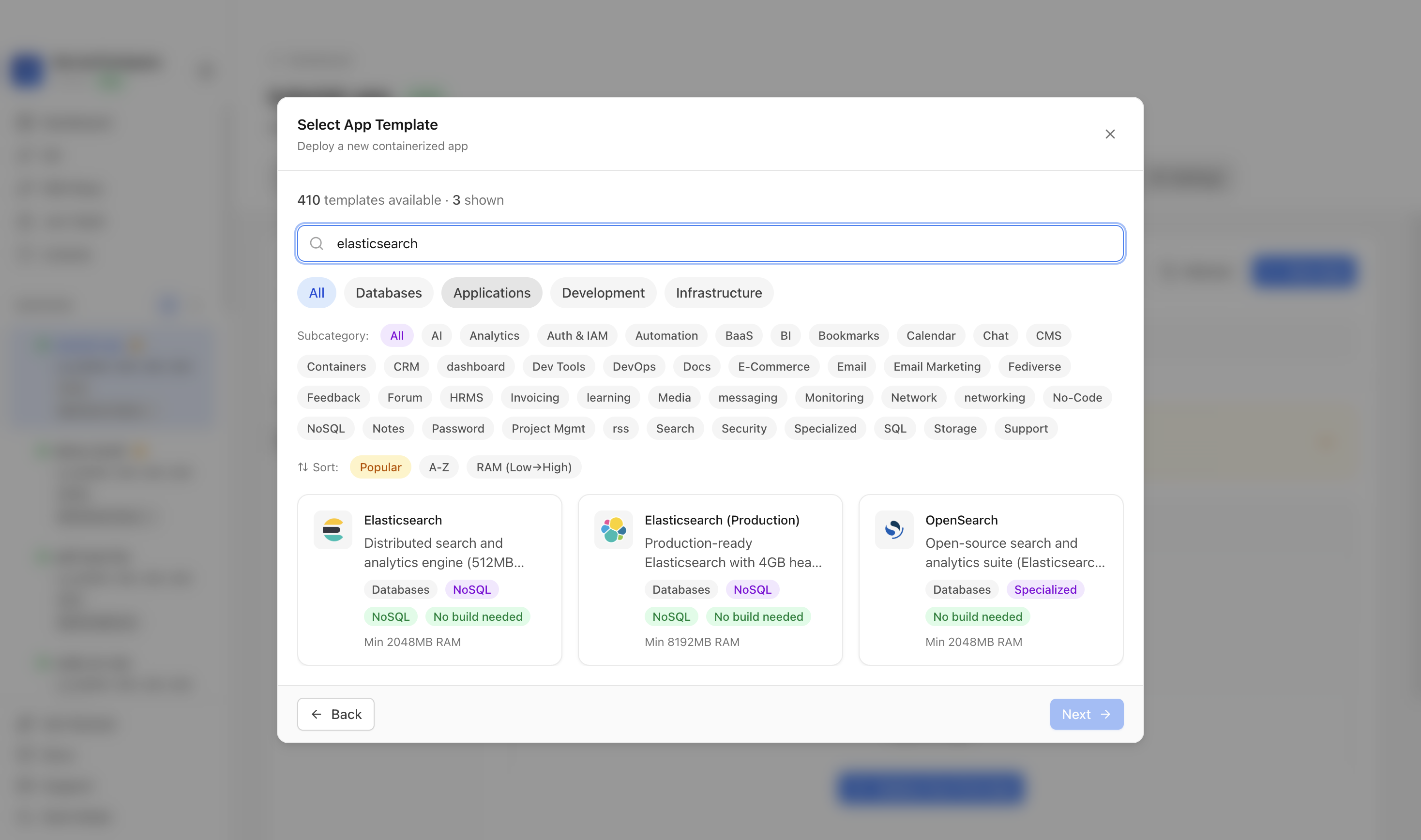

Step 3Search for Elasticsearch
Use the template picker search to find Elasticsearch in the Server Compass template catalog.
4

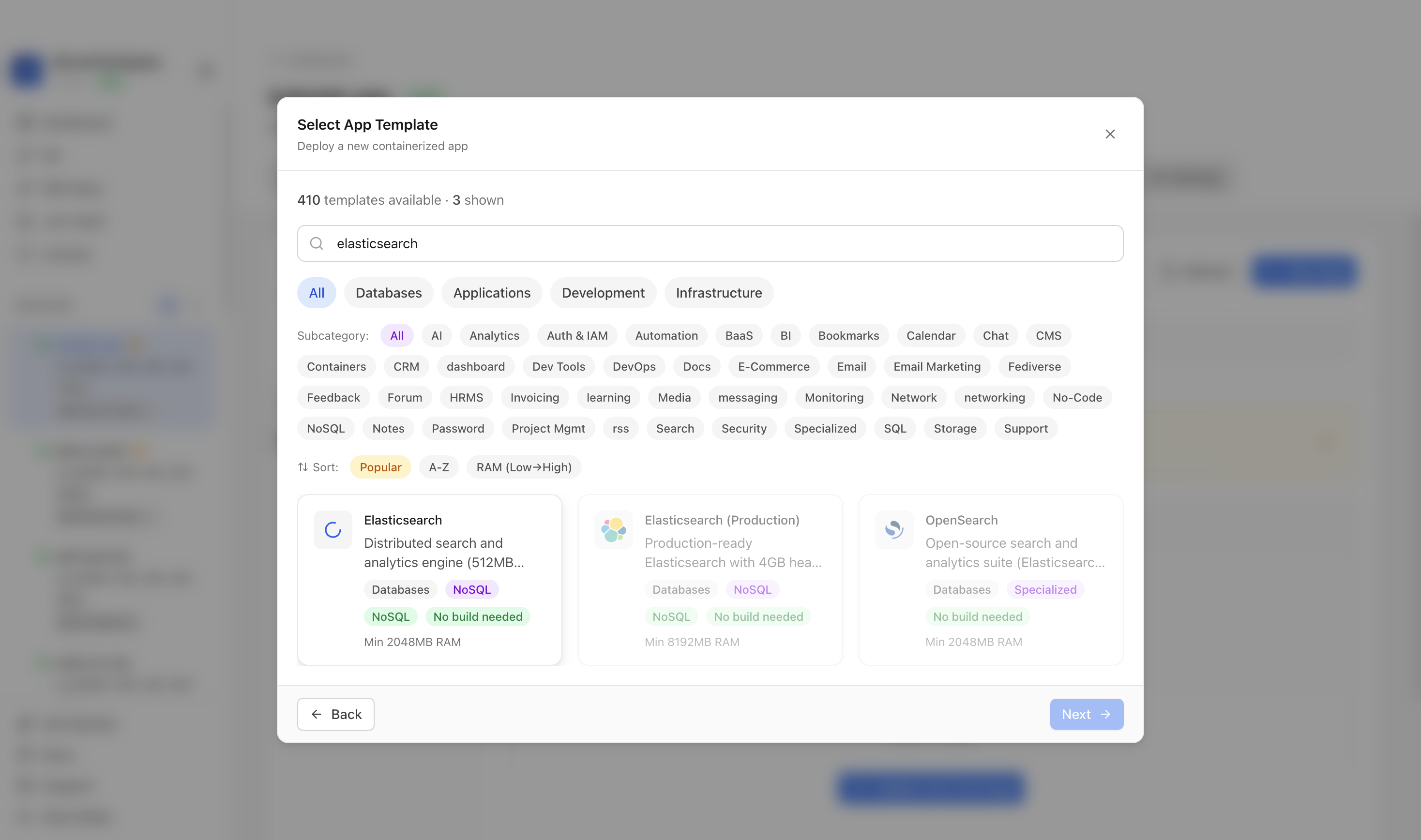

Step 4Select the Elasticsearch template
Choose the Elasticsearch template. Server Compass fills the secured Elasticsearch container, persistent data volume, HTTP port, transport port, heap settings, and generated elastic password.
5

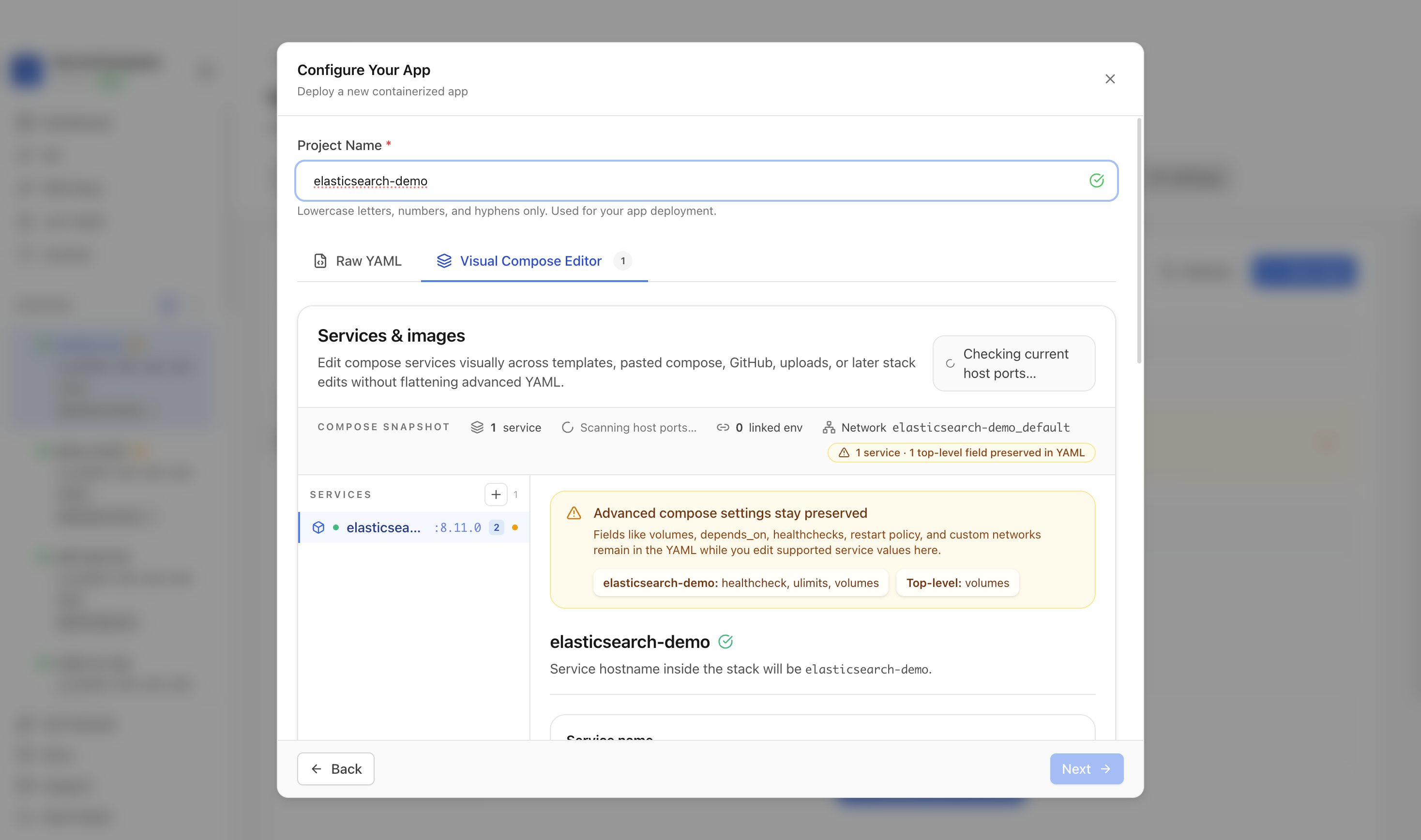

Step 5Review the Elasticsearch settings
Confirm the app name and compose service. In this run, the app was named elasticsearch-demo and used host port 9200.
6

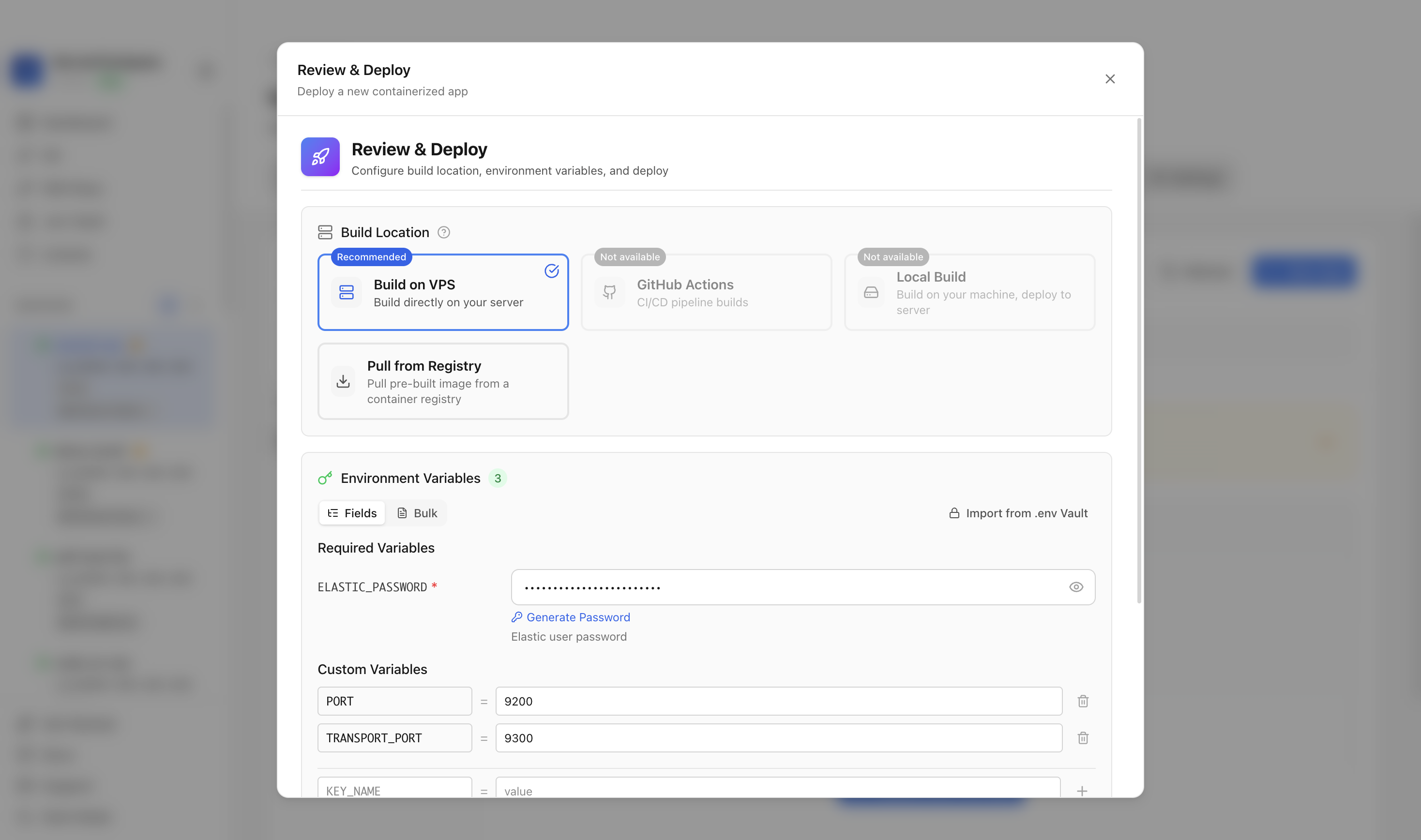

Step 6Deploy Elasticsearch
Review the generated environment values, keep the elastic password masked, confirm the HTTP and transport ports are available, and click Deploy Now.
7

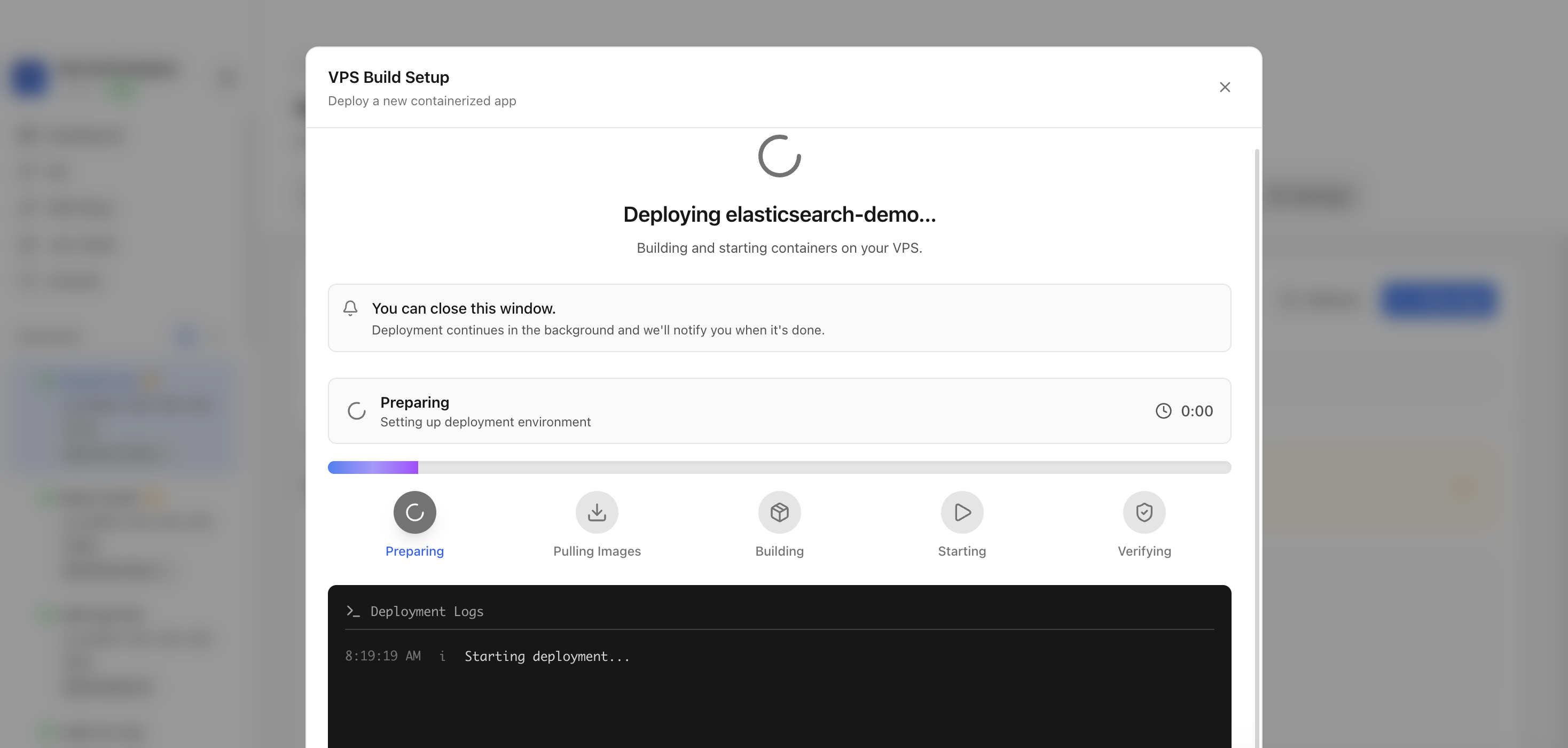

Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass uploads the compose file, pulls the Elasticsearch image, starts the container, and verifies the stack.
8

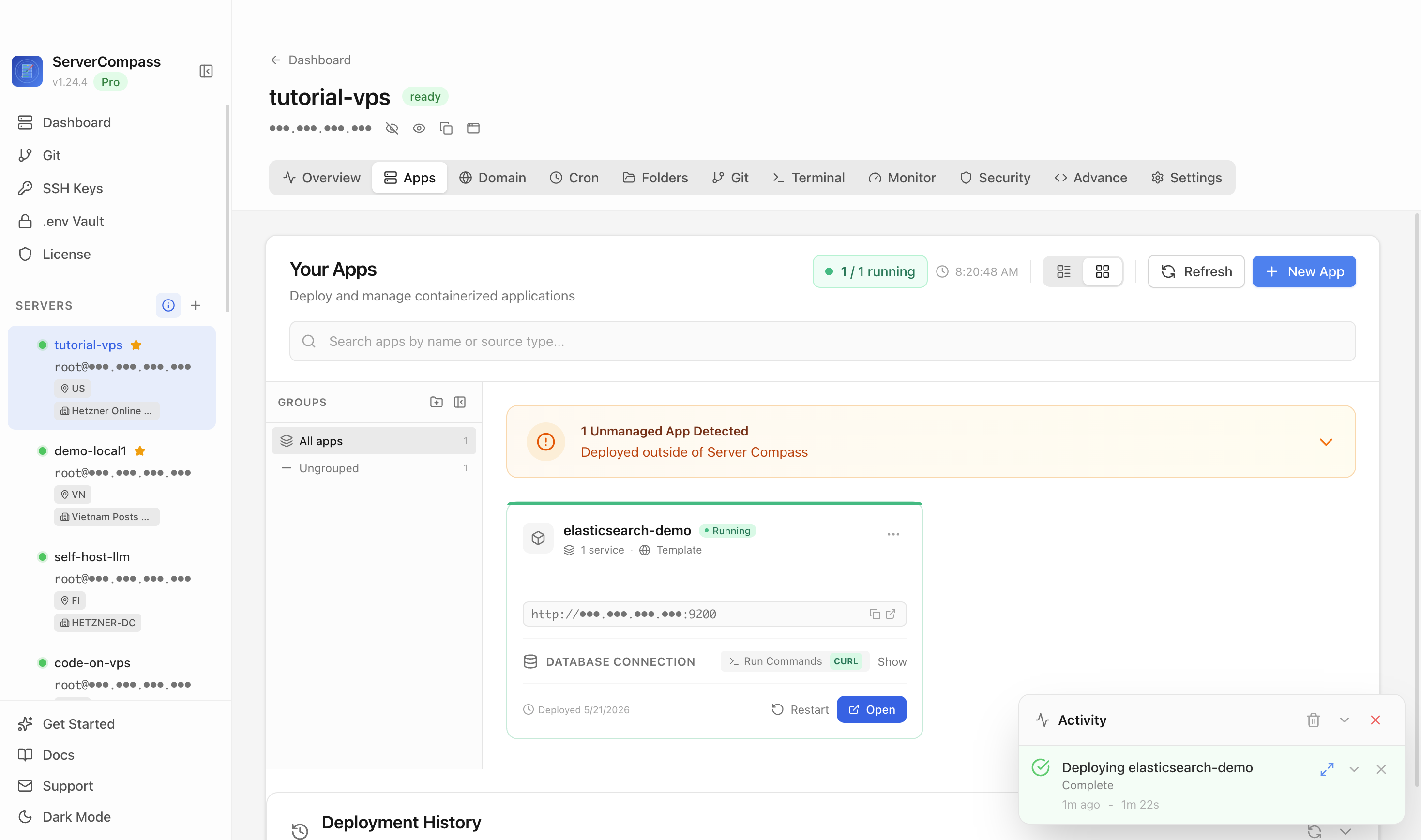

Step 8Confirm Elasticsearch is running
After deployment finishes, return to the Apps tab and confirm the Elasticsearch app is marked Running with the database port available.
9

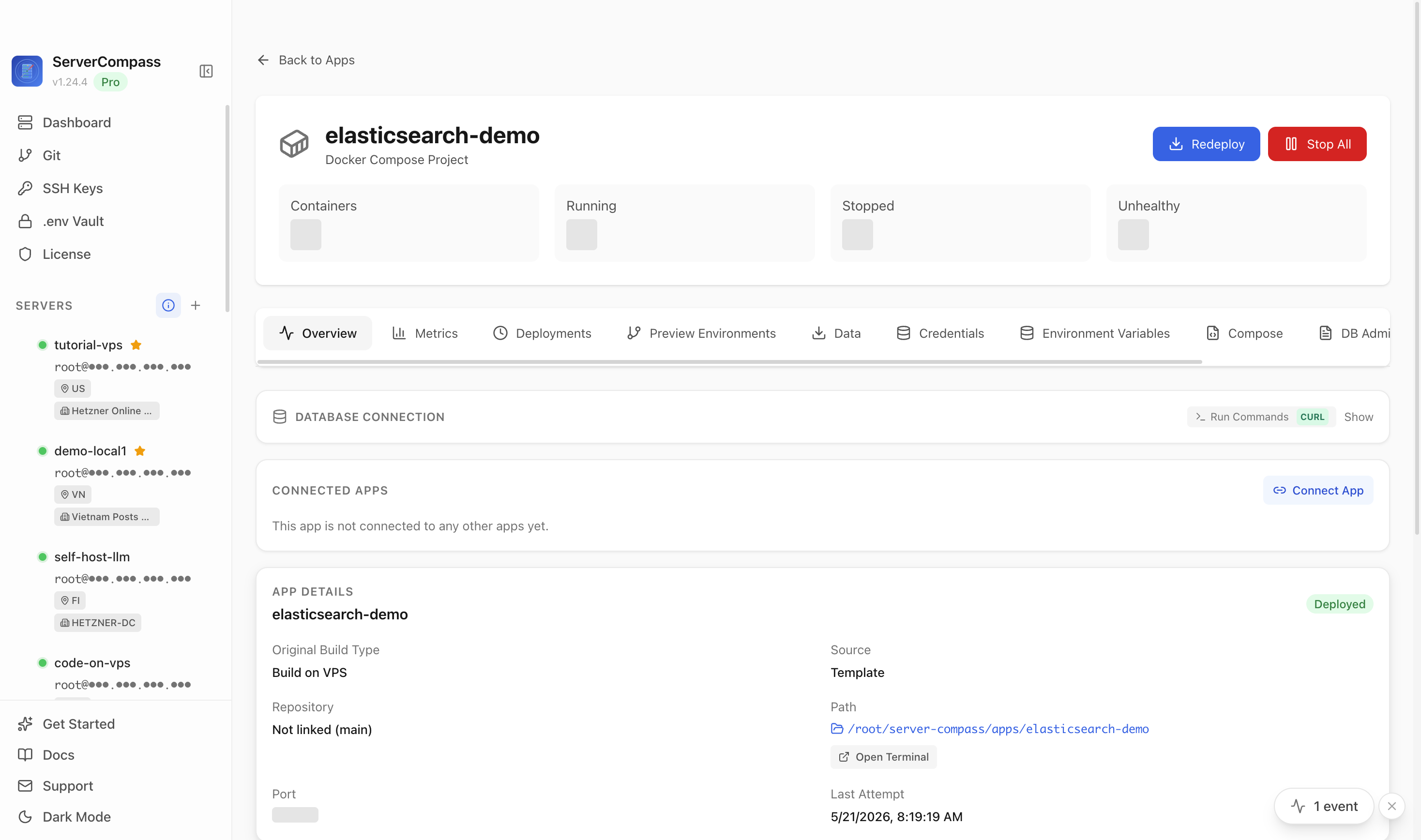

Step 9Verify Elasticsearch is reachable
Open the app detail view and verify the running Elasticsearch container. In this tutorial run, the internal cluster health endpoint returned a healthy status without exposing the generated password.
After Elasticsearch Opens
- Store the generated elastic password in a secure password manager.
- Create application-specific Elasticsearch users and roles before production use.
- Restrict external access to port 9200 unless remote clients explicitly need it.
- Configure regular backups for the Elasticsearch data volume before storing production data.
- Tune heap size and disk watermarks before production workloads.
Verified Result
The Elasticsearch container returned an accepted cluster health status from the internal HTTP endpoint.
Elasticsearch deployment questions
What does the Elasticsearch template deploy?
It deploys a secured single-node Elasticsearch container with a persistent data volume, HTTP port, transport port, generated elastic password, and configured JVM heap.
Which port did the tutorial use?
The tutorial used host port 9200, which maps to Elasticsearch HTTP port 9200. The template also checks the transport port used by Elasticsearch internals.
Why is there no browser verification screenshot?
Elasticsearch is a service API, not a normal browser application. The tutorial verifies it with an authenticated cluster health request inside the running container.
Should this become a blog post?
No. The deployment guide should live on the Elasticsearch template detail page and be linked from the reusable template deployment docs page.
Command Line Setup
Install Elasticsearch Manually
Set up Elasticsearch yourself using Docker Compose and the command line.
1
Establish SSH Connection
Connect to your remote server using SSH. Make sure you have your server credentials ready.
terminal
# Log into your server
ssh root@<your-server-ip>
# If using key-based auth
ssh -i ~/.ssh/my-key root@<your-server-ip>First time? Docker not installed? Run: curl -fsSL https://get.docker.com | sh
2
Create Project Directory
Set up a directory to store your Docker configuration.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/elasticsearch
cd ~/apps/elasticsearch3
Configure Docker Compose
Add this configuration to your docker-compose.yml file:
docker-compose.yml
services:
elasticsearch:
image: elasticsearch:8.11.0
ports:
- "9200:9200"
- "9300:9300"
environment:
- discovery.type=single-node
- xpack.security.enabled=true
- ELASTIC_PASSWORD=<your-elastic-password>
- "ES_JAVA_OPTS=-Xms512m -Xmx512m"
volumes:
- elasticsearch_data:/usr/share/elasticsearch/data
ulimits:
memlock:
soft: -1
hard: -1
restart: unless-stopped
healthcheck:
test: ["CMD-SHELL", "curl -s -u elastic:<your-elastic-password> http://localhost:9200/_cluster/health | grep -q 'green\\|yellow'"]
interval: 30s
timeout: 10s
retries: 5
volumes:
elasticsearch_data:
Configuration Options
PORTHTTP API port(default: 9200)TRANSPORT_PORTTransport port for cluster communication(default: 9300)ELASTIC_PASSWORDElastic user password4
Start the Services
Execute the deployment and check the container status.
terminal
# Deploy the application
docker compose up -d
# Check container health
docker compose ps
# Monitor logs
docker compose logs -f --tail=1005
Allow Incoming Connections
Enable network access by updating your firewall rules.
terminal
# Allow the application port through firewall
sudo ufw allow 9200/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:9200Skip the Terminal
Too complicated? Let Server Compass handle it.
No terminal needed. Deploy Elasticsearch through a visual dashboard with automatic configuration.
- Intuitive dashboard
- Deploy in 3 minutes
- Free SSL included
- Blue-green deploys
- Real-time logs
- Version history
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying Elasticsearch with Server Compass, complete these steps to finish setup
1
Test cluster health via API
2
Create indices for your data
3
Set up index templates and mappings
4
Configure ILM policies for data retention
5
Set up monitoring with Kibana
6
For production, upgrade to Elasticsearch Production template
Need help? Check out our documentation for detailed guides.
Elasticsearch FAQ
Common questions about self-hosting Elasticsearch
How do I deploy Elasticsearch with Server Compass?
Simply download Server Compass, connect to your VPS, and select Elasticsearch from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.
What are the system requirements for Elasticsearch?
Elasticsearch requires a minimum of 2048MB RAM. We recommend a VPS with at least 4096MB RAM for optimal performance. Any modern Linux server with Docker support will work.
Can I migrate my existing Elasticsearch data?
Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard Elasticsearch backup and restore procedures.
How do I update Elasticsearch to the latest version?
Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest Elasticsearch image will be pulled and deployed with zero downtime.
Is Elasticsearch free to self-host?
Elasticsearch is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
