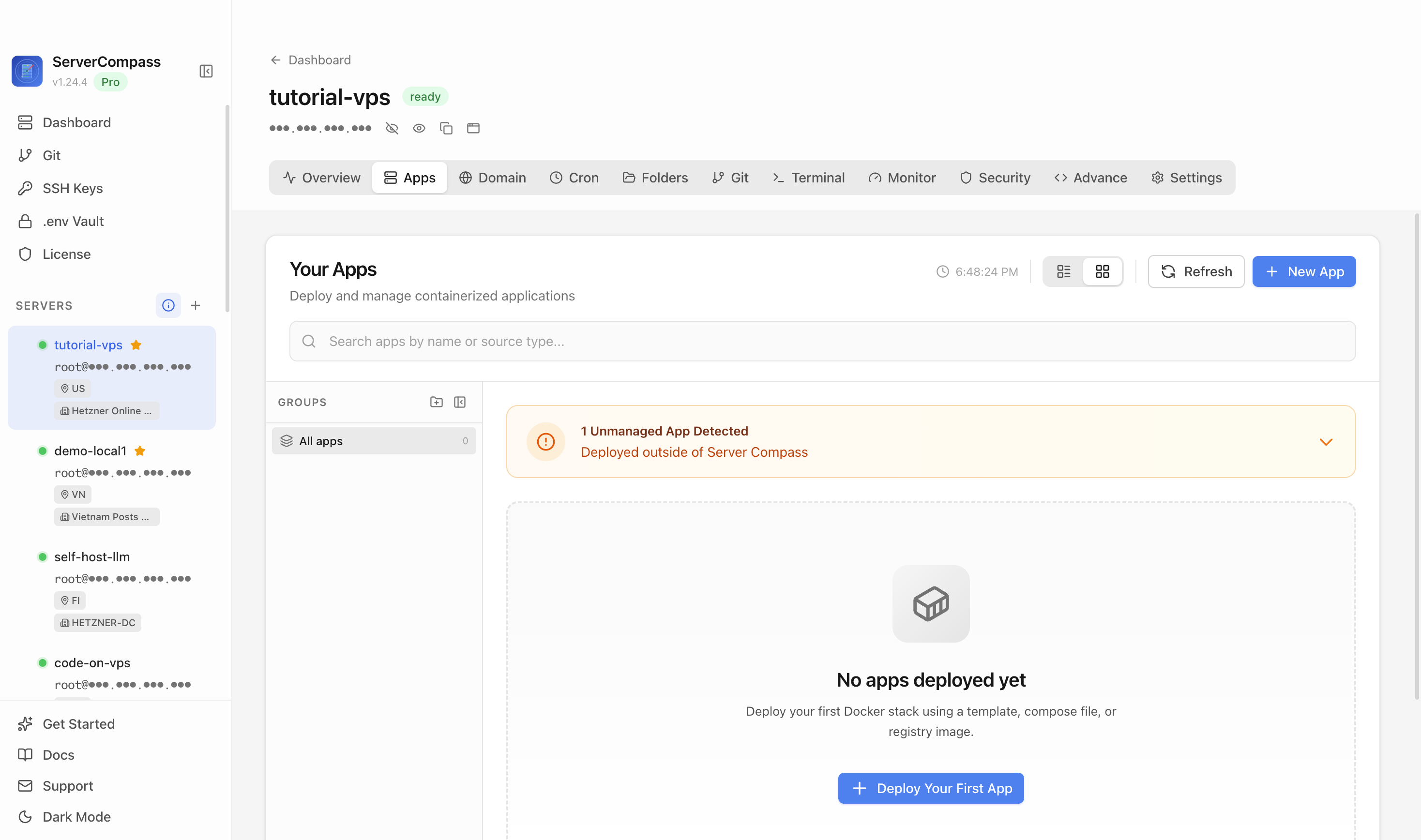

Step 1Open the server Apps tab
Select your VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
EspoCRM
Application512MB+ RAM
Open-source CRM for business with customizable entities
crmsalesbusiness
Deploy EspoCRM in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select EspoCRM
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy EspoCRM on a VPS with Server Compass
Use the EspoCRM template in Server Compass to deploy a self-hosted open-source CRM with MySQL on your VPS, then verify the EspoCRM web UI in a browser.
About 7 minutesBrowser verified
2

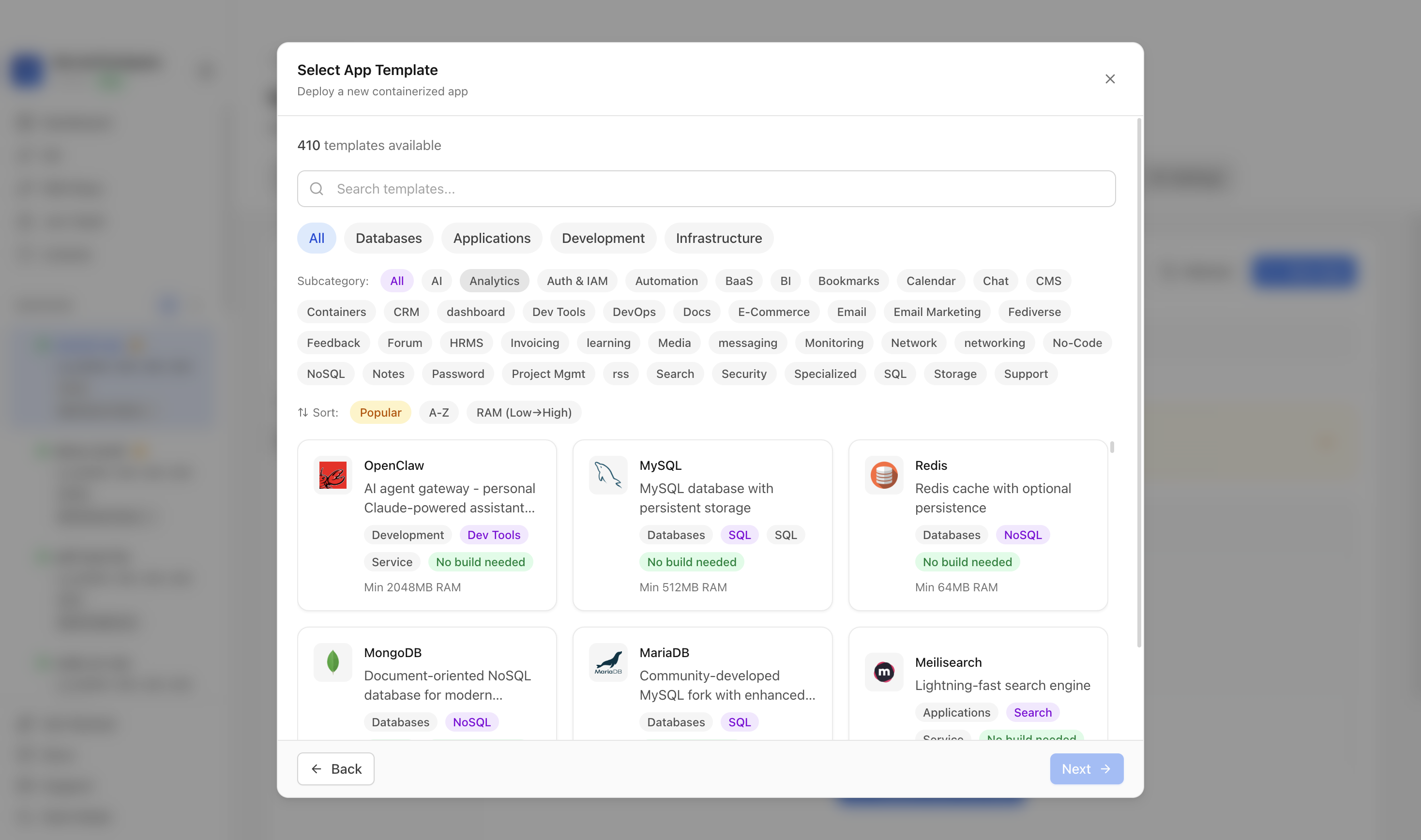

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

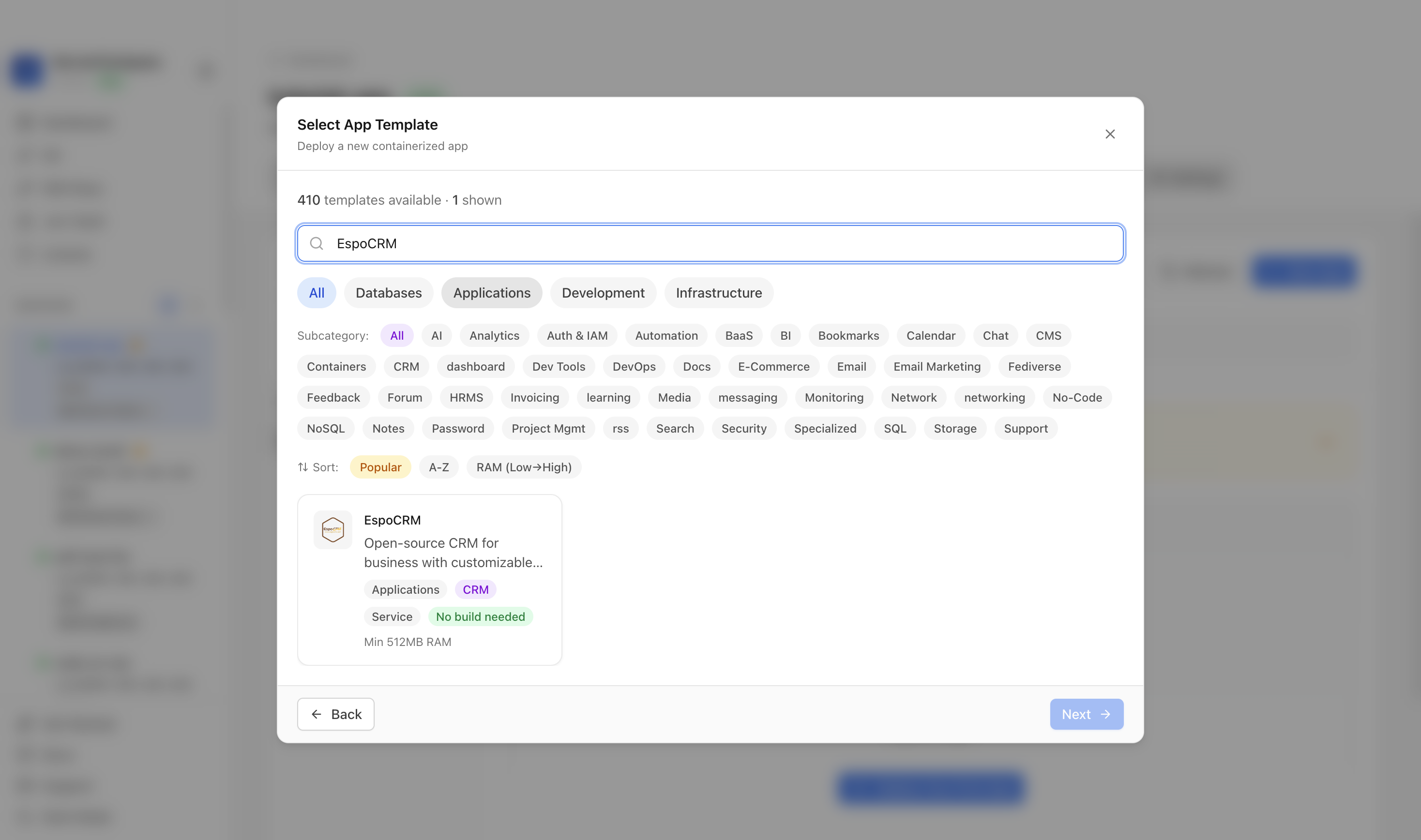

Step 3Search for EspoCRM
Use the template picker search to find EspoCRM in the Server Compass template catalog.
4

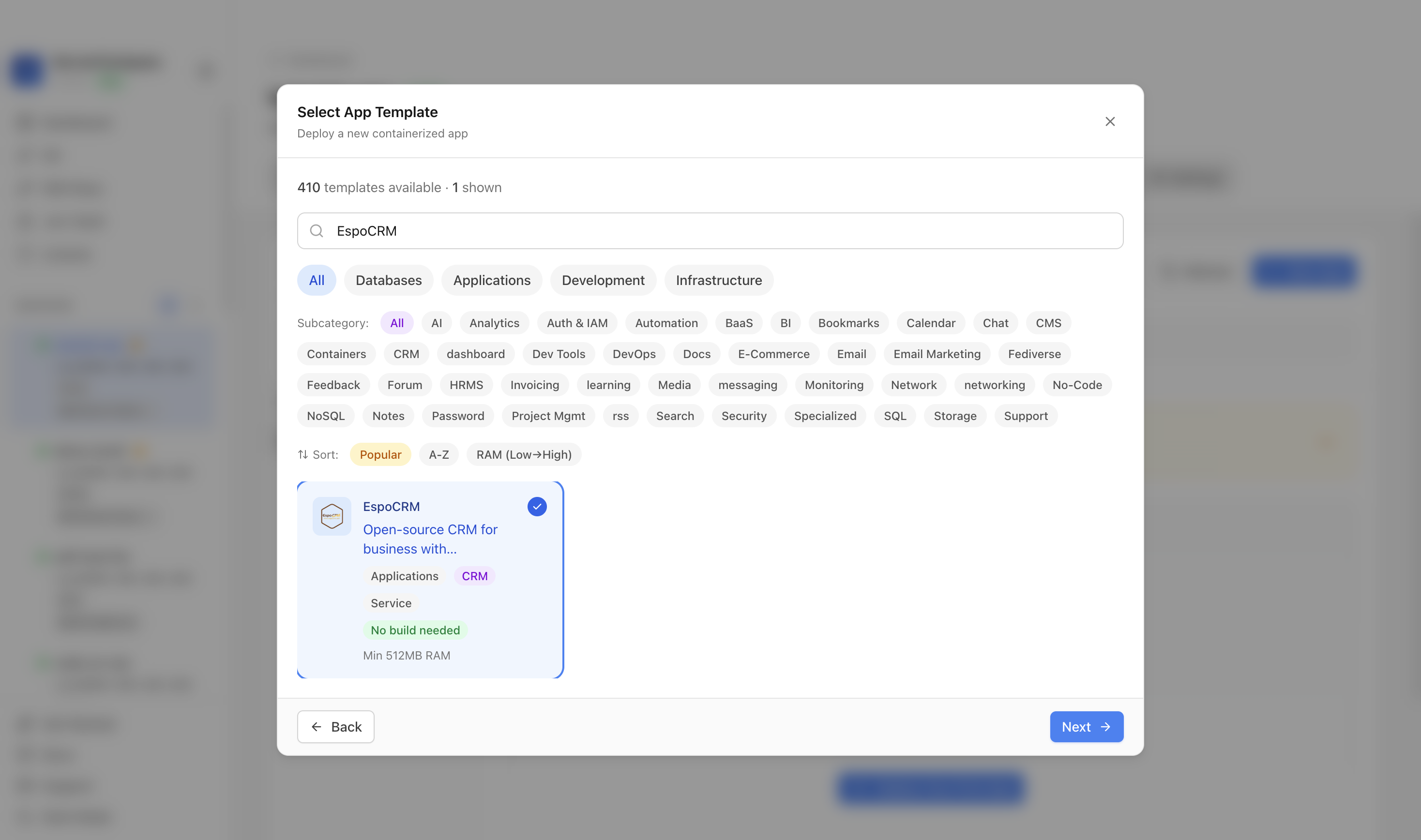

Step 4Select the EspoCRM template
Choose the EspoCRM template. Server Compass fills the EspoCRM image, MySQL service, persistent site volumes, database settings, and required secret value.
5

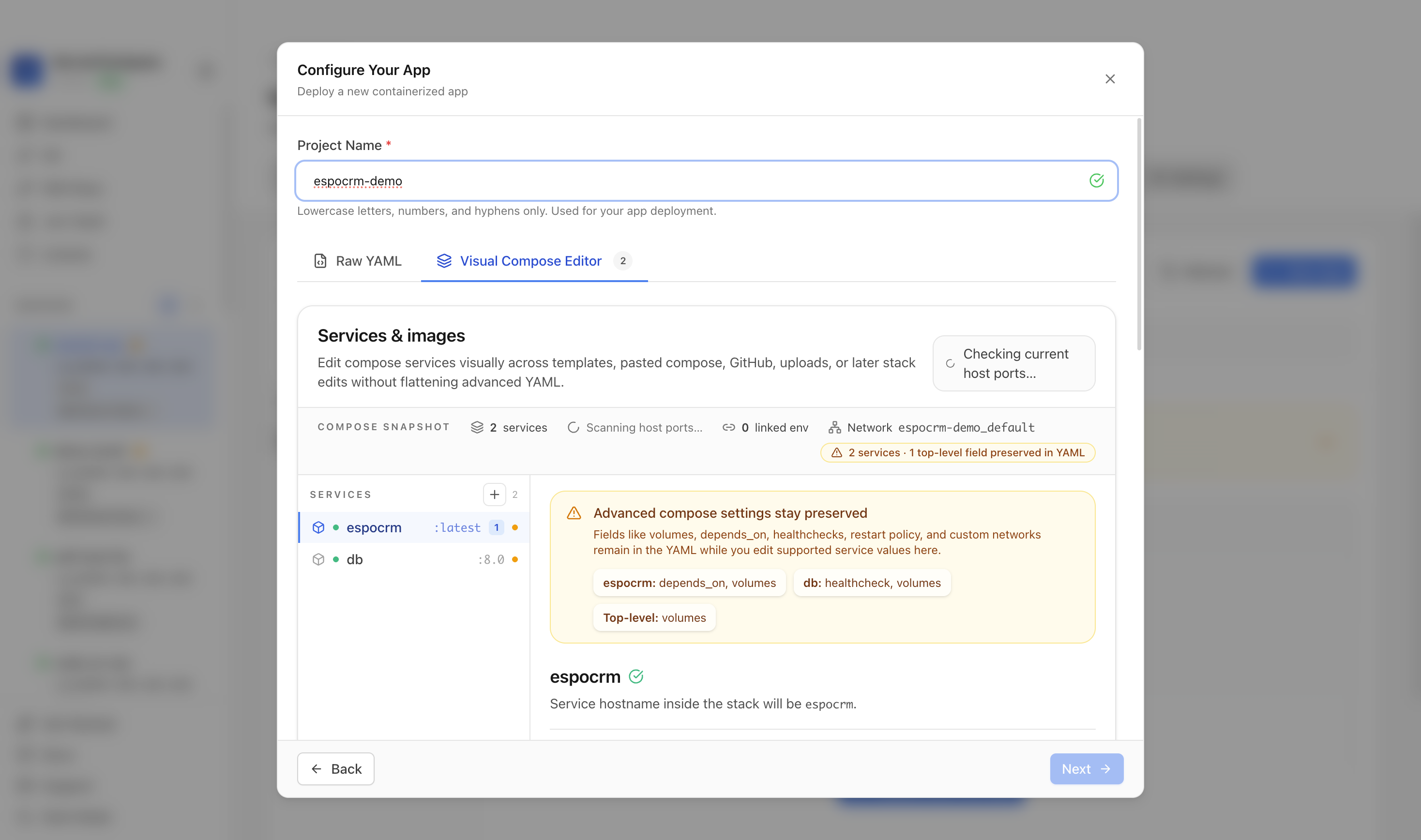

Step 5Review the EspoCRM settings
Confirm the app name and compose services. In this run, the app was named espocrm-demo and used host port 8080.
6

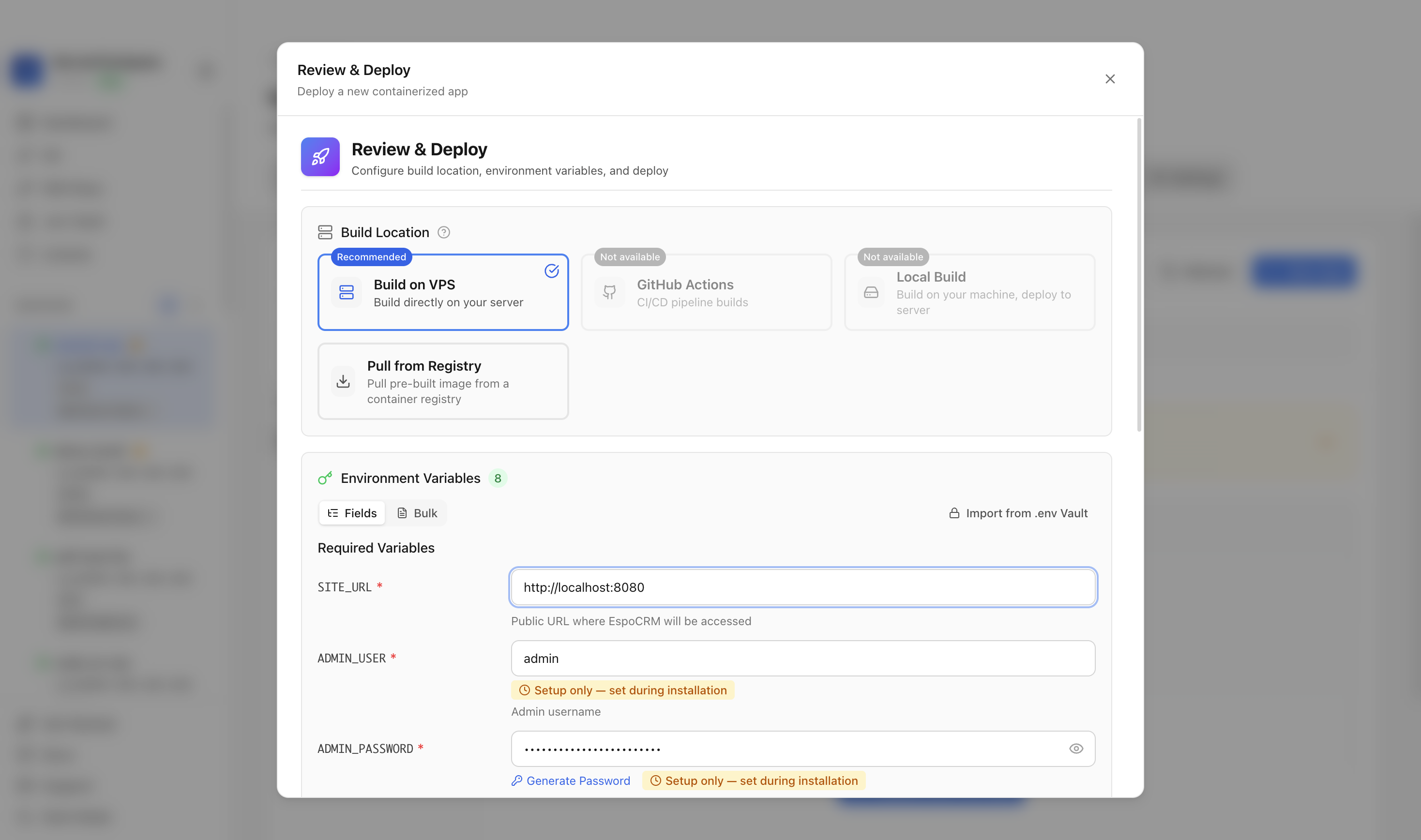

Step 6Deploy EspoCRM
Review the generated environment values, keep the database password masked, confirm the port is available, and click Deploy Now.
7

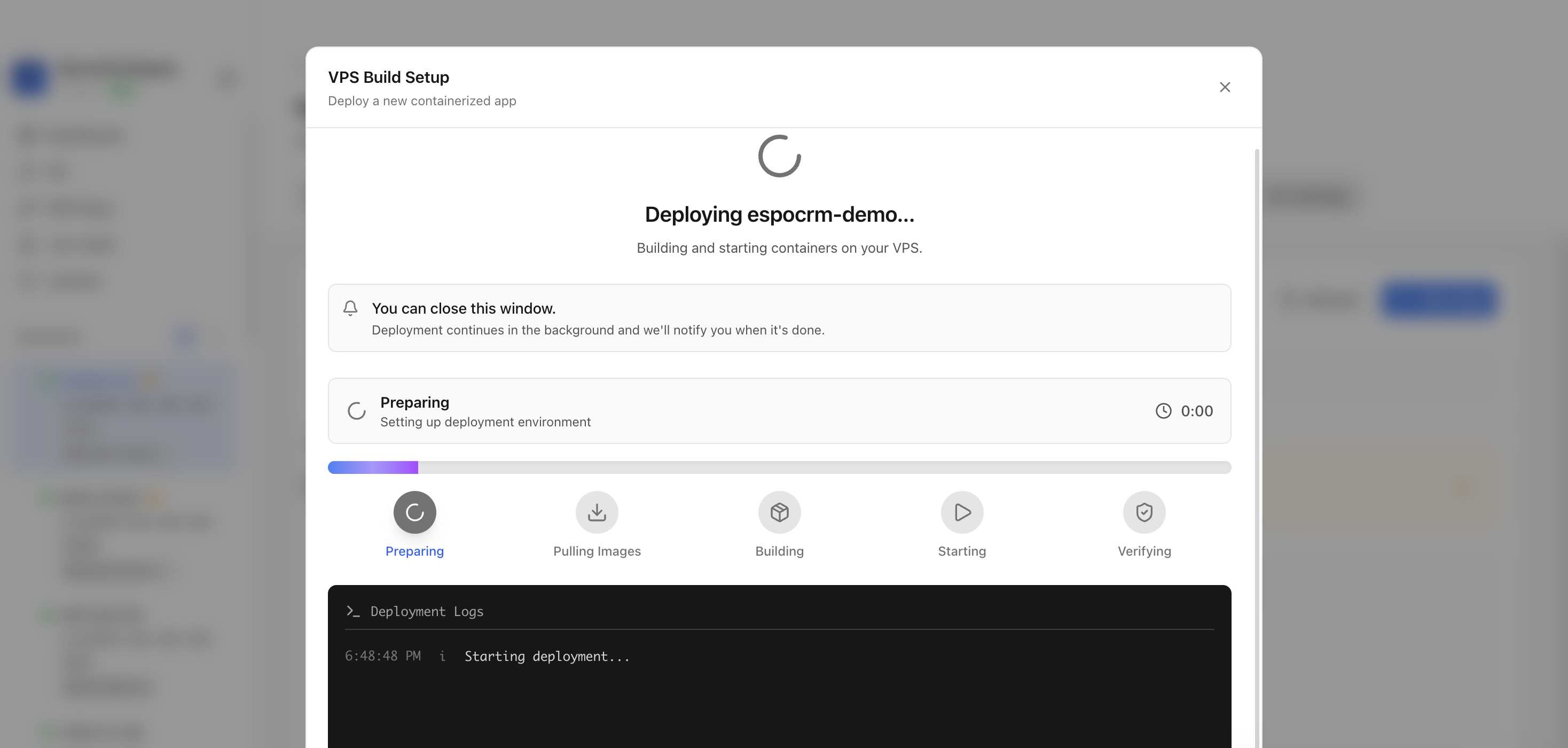

Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass uploads the compose file, pulls the EspoCRM and MySQL images, starts the containers, and verifies the stack.
8

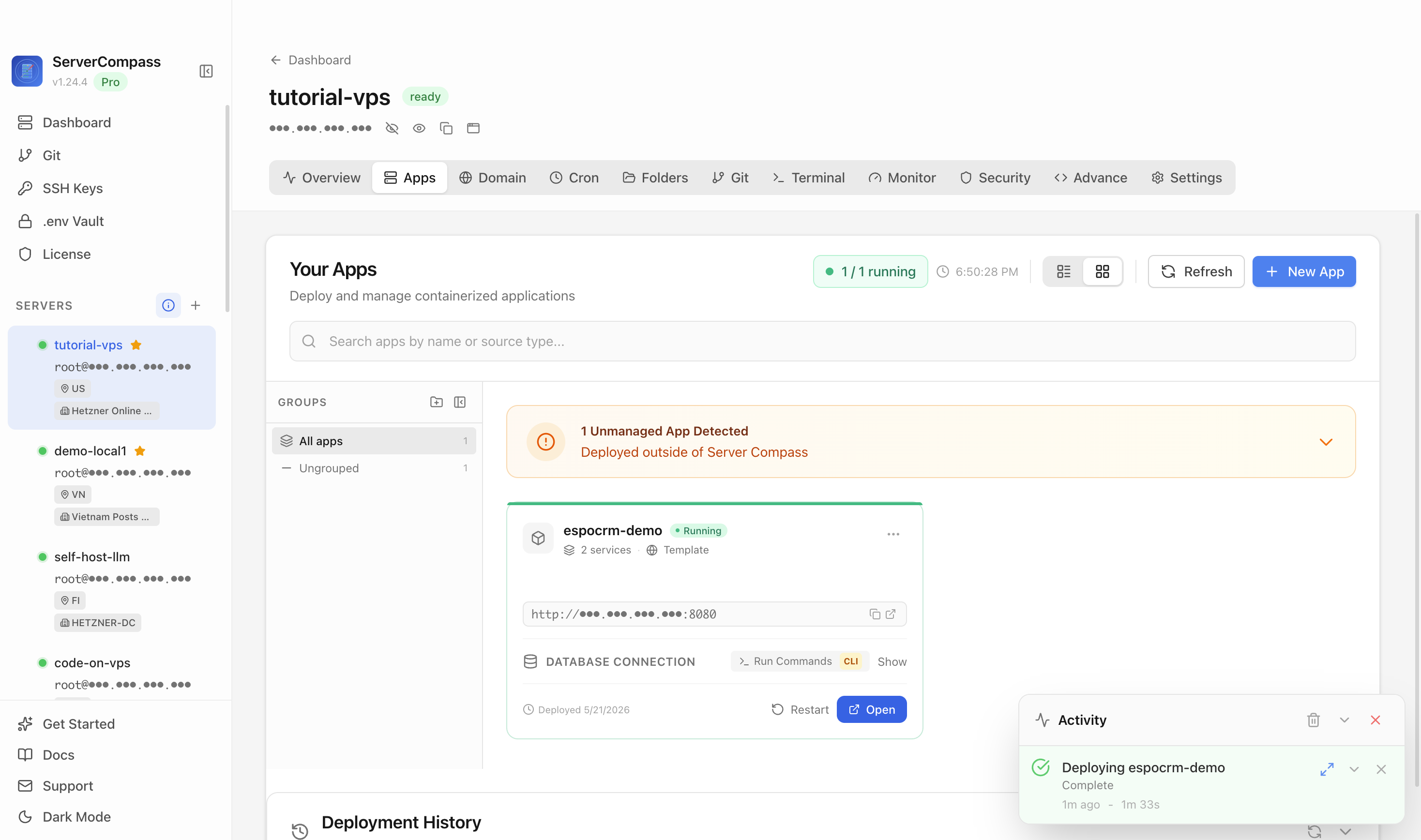

Step 8Confirm EspoCRM is running
After deployment finishes, return to the Apps tab and confirm the EspoCRM app is marked Running with its application URL available.
9
Step 9Open EspoCRM in the browser
Click Open Application or open the application URL in a browser. The EspoCRM install wizard confirms the deployed app is reachable and ready for the database credentials.
After EspoCRM Opens
- Complete the EspoCRM installer with the generated MySQL password from Server Compass.
- Keep the database password masked in screenshots and docs.
- Add a domain and HTTPS before inviting users or publishing content publicly.
- Create roles and permissions before publishing editorial workflows.
- Back up both the EspoCRM application volume and the MySQL data volume before storing production content.
Verified Result
The EspoCRM app loaded successfully in a browser and displayed the install wizard.
EspoCRM deployment questions
What does the EspoCRM template deploy?
It deploys EspoCRM with MySQL 8.0 and persistent application and database volumes.
Which port did the tutorial use?
The tutorial used host port 8080, which maps to the EspoCRM web server on container port 80.
Why does the browser verification stop at the install wizard?
A fresh EspoCRM deployment is considered reachable when the install wizard loads. Continuing further would require entering generated database credentials, so the public guide verifies the safe pre-install wizard.
Should this become a blog post?
No. The deployment guide should live on the EspoCRM template detail page and be linked from the reusable template deployment docs page.
CLI Deployment
Deploy EspoCRM Yourself
Want full control? Here's how to deploy EspoCRM yourself using Docker Compose.
1
Log into Your Server
Access your server's command line by opening a terminal and running the SSH command below.
terminal
# SSH into your server
ssh root@your-server-ip
# Using a custom SSH key
ssh -i ~/.ssh/id_rsa root@your-server-ipFirst time? Need Docker? Install it: curl -fsSL https://get.docker.com | sh
2
Prepare the Install Location
Set up the folder structure for your Docker deployment.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/espocrm
cd ~/apps/espocrm3
Create docker-compose.yml
Set up your Docker Compose file with this configuration:
docker-compose.yml
services:
espocrm:
image: espocrm/espocrm:latest
ports:
- "8080:80"
environment:
- ESPOCRM_DATABASE_HOST=db
- ESPOCRM_DATABASE_NAME=espocrm
- ESPOCRM_DATABASE_USER=espocrm
- ESPOCRM_DATABASE_PASSWORD=<your-db-password>
- ESPOCRM_ADMIN_USERNAME=admin
- ESPOCRM_ADMIN_PASSWORD=<your-admin-password>
- ESPOCRM_SITE_URL=<your-site-url>
volumes:
- espocrm_data:/var/www/html
restart: unless-stopped
depends_on:
db:
condition: service_healthy
db:
image: mysql:8.0
environment:
- MYSQL_ROOT_PASSWORD=<your-db-root-password>
- MYSQL_DATABASE=espocrm
- MYSQL_USER=espocrm
- MYSQL_PASSWORD=<your-db-password>
volumes:
- db_data:/var/lib/mysql
restart: unless-stopped
healthcheck:
test: ["CMD-SHELL", "mysqladmin ping -h localhost -u root -p$$MYSQL_ROOT_PASSWORD || exit 1"]
interval: 10s
timeout: 5s
retries: 5
start_period: 30s
volumes:
espocrm_data:
db_data:
Required Settings
PORTHost port to expose(default: 8080)SITE_URLSite URLADMIN_USERAdmin username(default: admin)ADMIN_PASSWORDAdmin passwordDB_NAMEDatabase name(default: espocrm)DB_USERDatabase user(default: espocrm)4
Run the Deployment
Start all services defined in your compose file.
terminal
# Start the containers in detached mode
docker compose up -d
# Check if containers are running
docker compose ps
# View logs
docker compose logs -f5
Configure Network Access
Open the port so you can access the application externally.
terminal
# Allow the application port through firewall
sudo ufw allow 8080/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:8080Skip the Terminal
Want one-click deploys? Try Server Compass.
Skip the terminal and deploy EspoCRM with a visual interface. Configure everything with clicks, not commands.
- Visual configuration UI
- One-click deployment
- Automatic SSL setup
- Zero-downtime updates
- Built-in monitoring
- One-click rollbacks
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying EspoCRM with Server Compass, complete these steps to finish setup
1
Log in with admin credentials
2
Configure your company settings
3
Customize entities and fields
Need help? Check out our documentation for detailed guides.
EspoCRM FAQ
Common questions about self-hosting EspoCRM
How do I deploy EspoCRM with Server Compass?
Simply download Server Compass, connect to your VPS, and select EspoCRM from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.
What are the system requirements for EspoCRM?
EspoCRM requires a minimum of 512MB RAM. We recommend a VPS with at least 1024MB RAM for optimal performance. Any modern Linux server with Docker support will work.
Can I migrate my existing EspoCRM data?
Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard EspoCRM backup and restore procedures.
How do I update EspoCRM to the latest version?
Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest EspoCRM image will be pulled and deployed with zero downtime.
Is EspoCRM free to self-host?
EspoCRM is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
