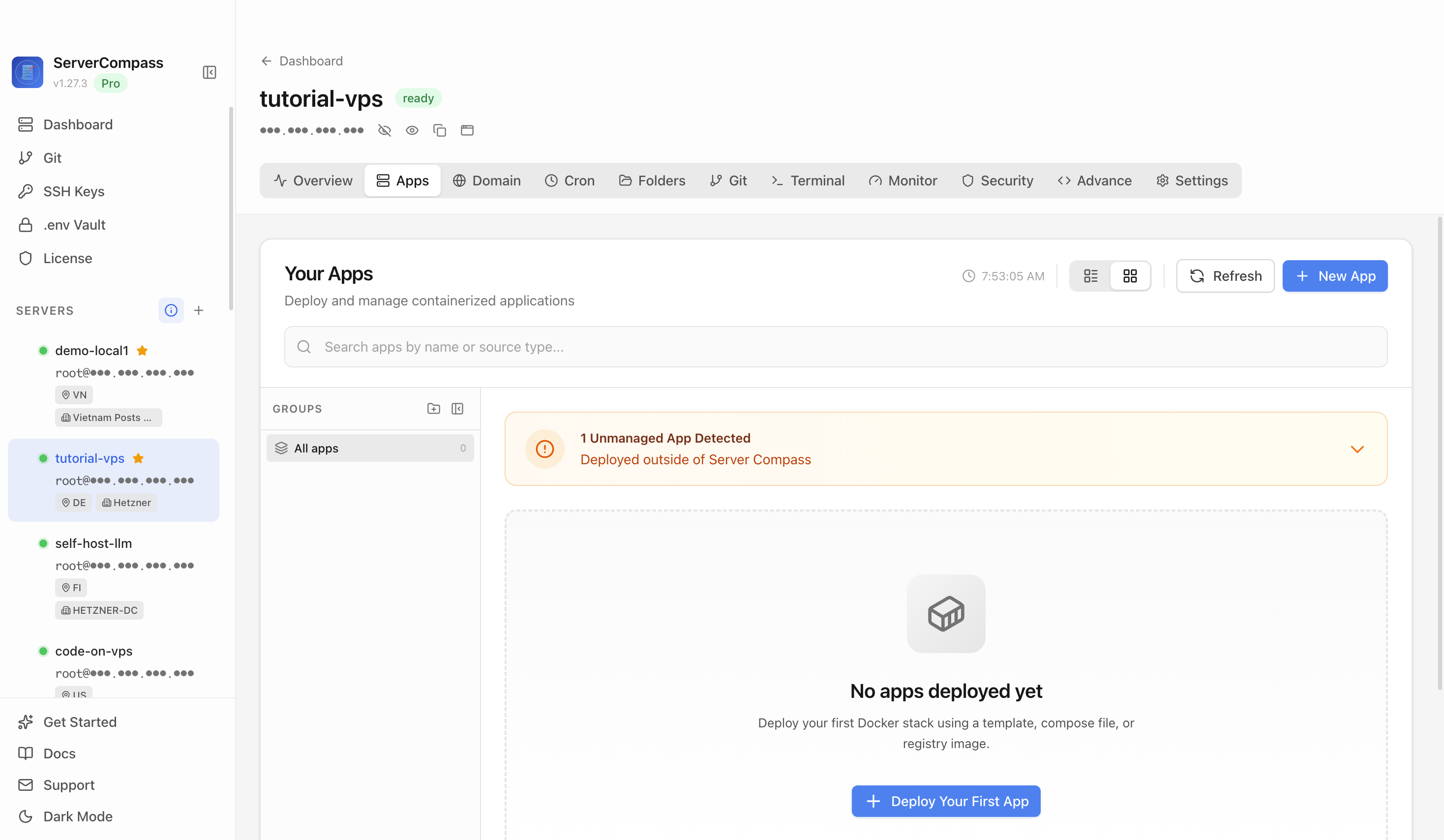

Step 1Open the server Apps tab
Select your VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
Frappe HR
Application1024MB+ RAM
Modern, open-source HRMS by Frappe
hrhrmsfrappepayroll
Deploy Frappe HR in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select Frappe HR
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy Frappe HR on a VPS with Server Compass
Use the Frappe HR template in Server Compass to deploy a branch-aligned Frappe, ERPNext, and HRMS evaluation stack with MariaDB and Redis, then verify the Frappe HR login page in a browser.
About 15 minutesBrowser verified
2

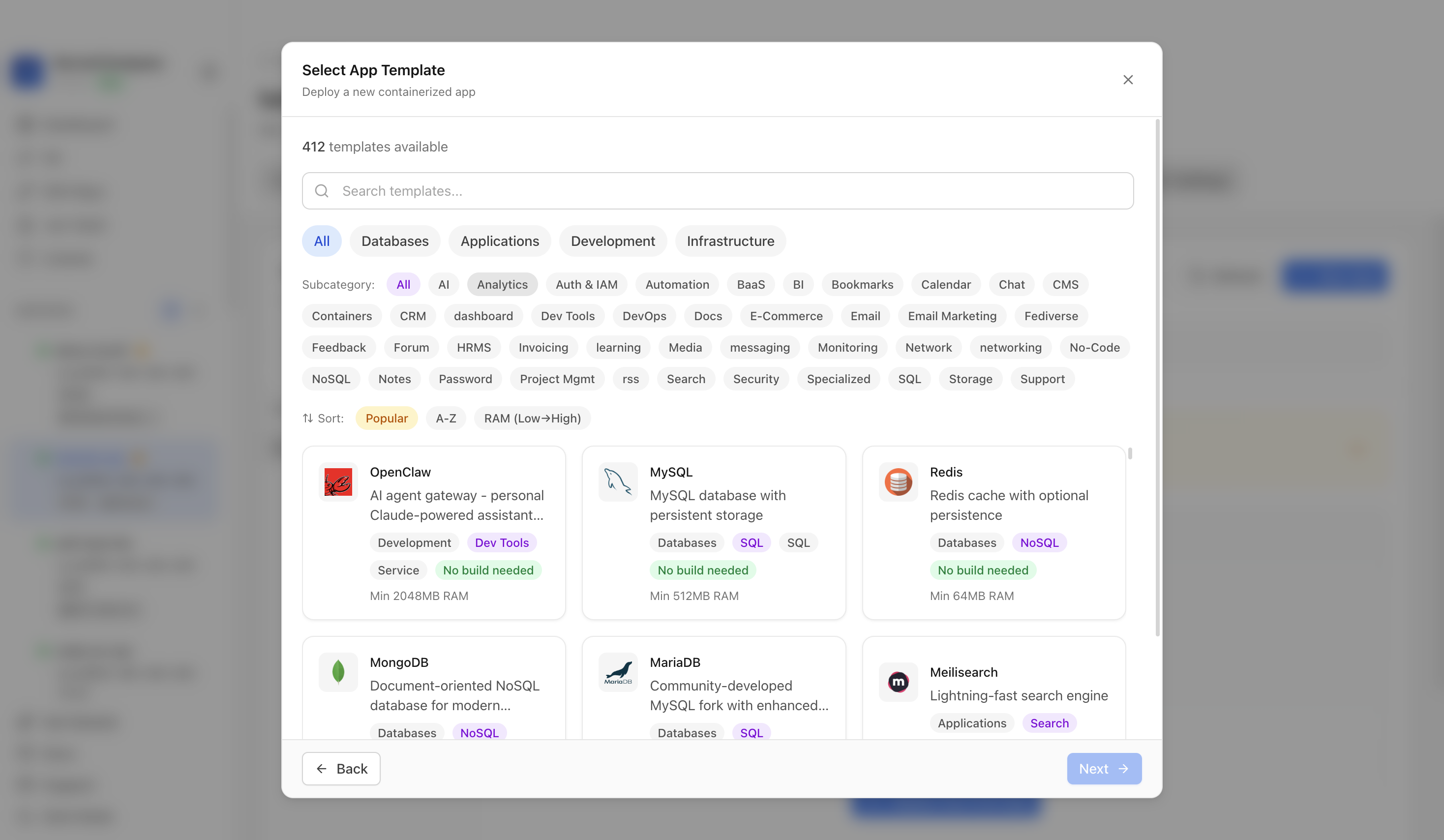

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

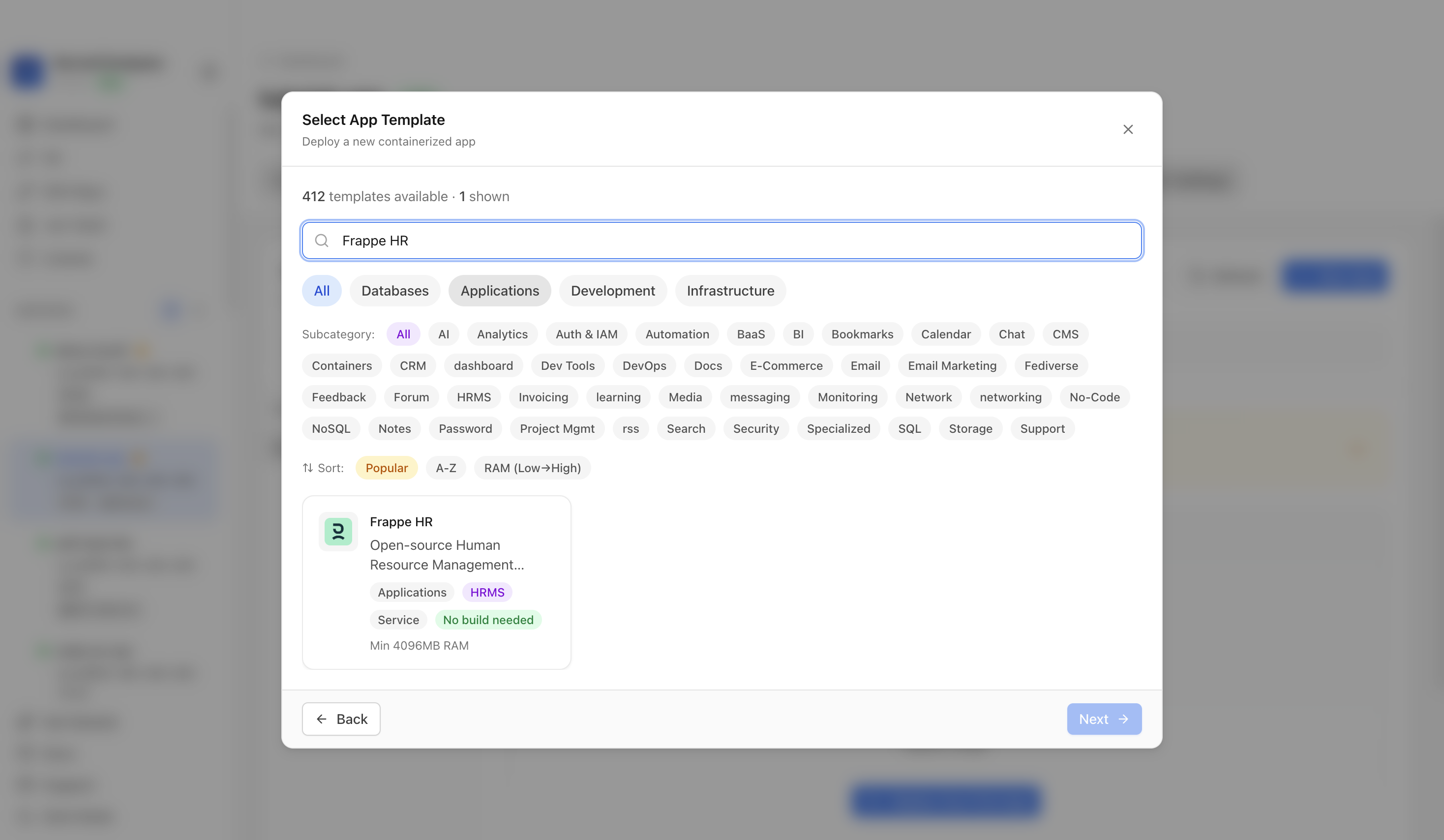

Step 3Search for Frappe HR
Use the template picker search to find Frappe HR in the Server Compass template catalog.
4

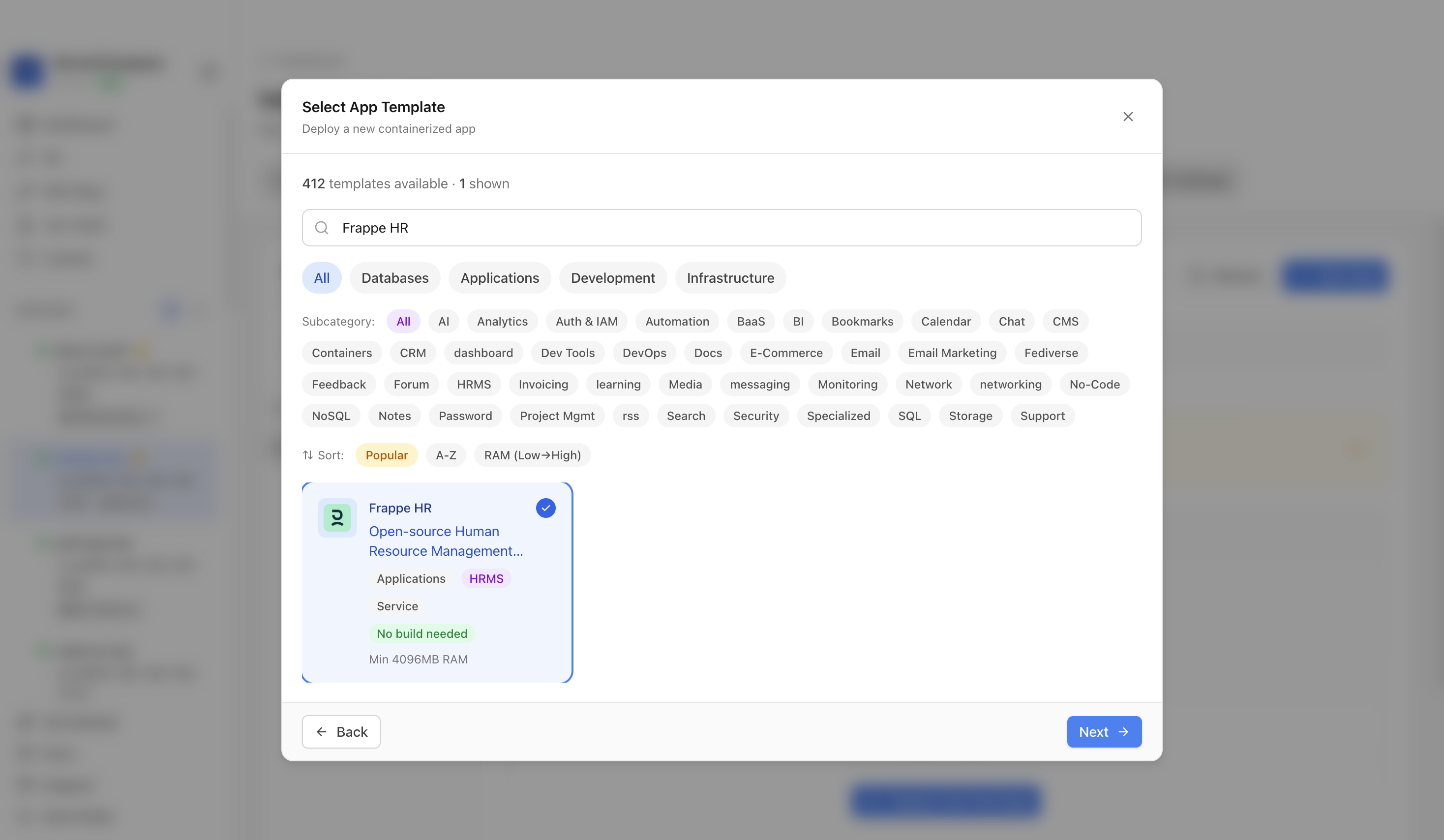

Step 4Select the Frappe HR template
Choose the Frappe HR template. Server Compass prepares the Frappe bench container, MariaDB, Redis, site bootstrap script, and required secret values.
5

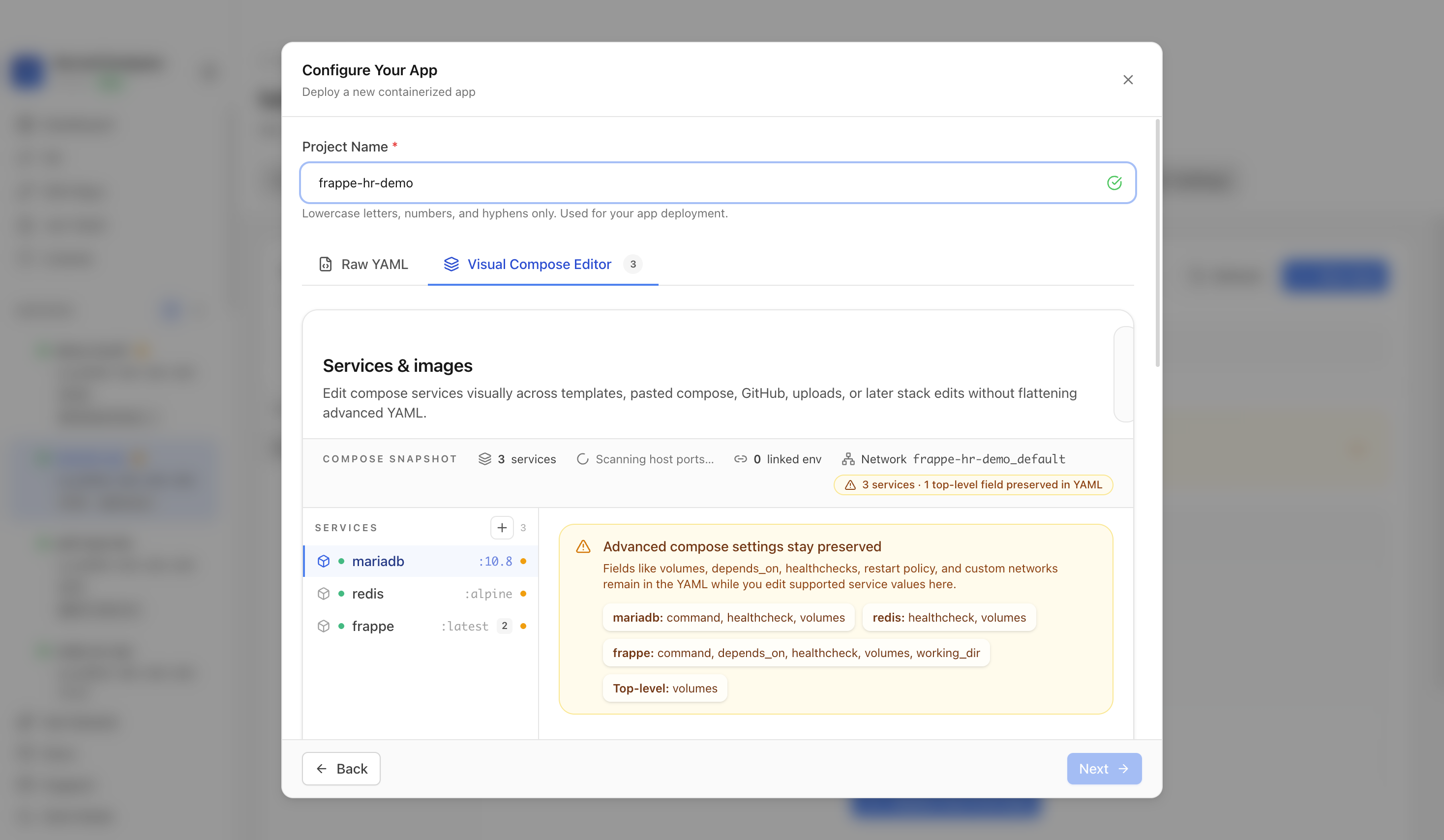

Step 5Review the Frappe HR settings
Confirm the app name and compose services. In this run, the app was named frappe-hr-demo and used host port 8080.
6

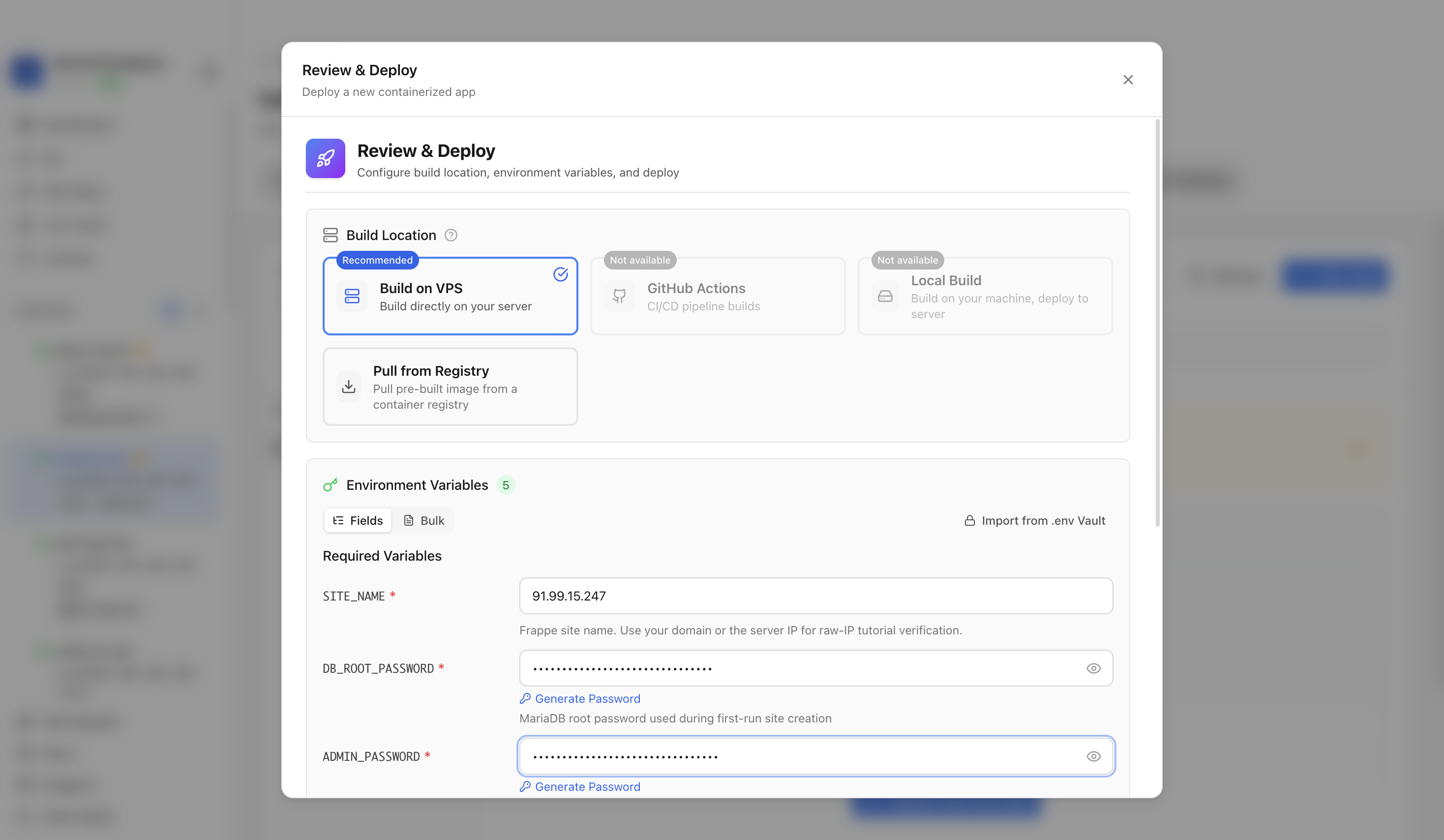

Step 6Deploy Frappe HR
Review the generated environment values, keep the database password masked, confirm the port is available, and click Deploy Now.
7

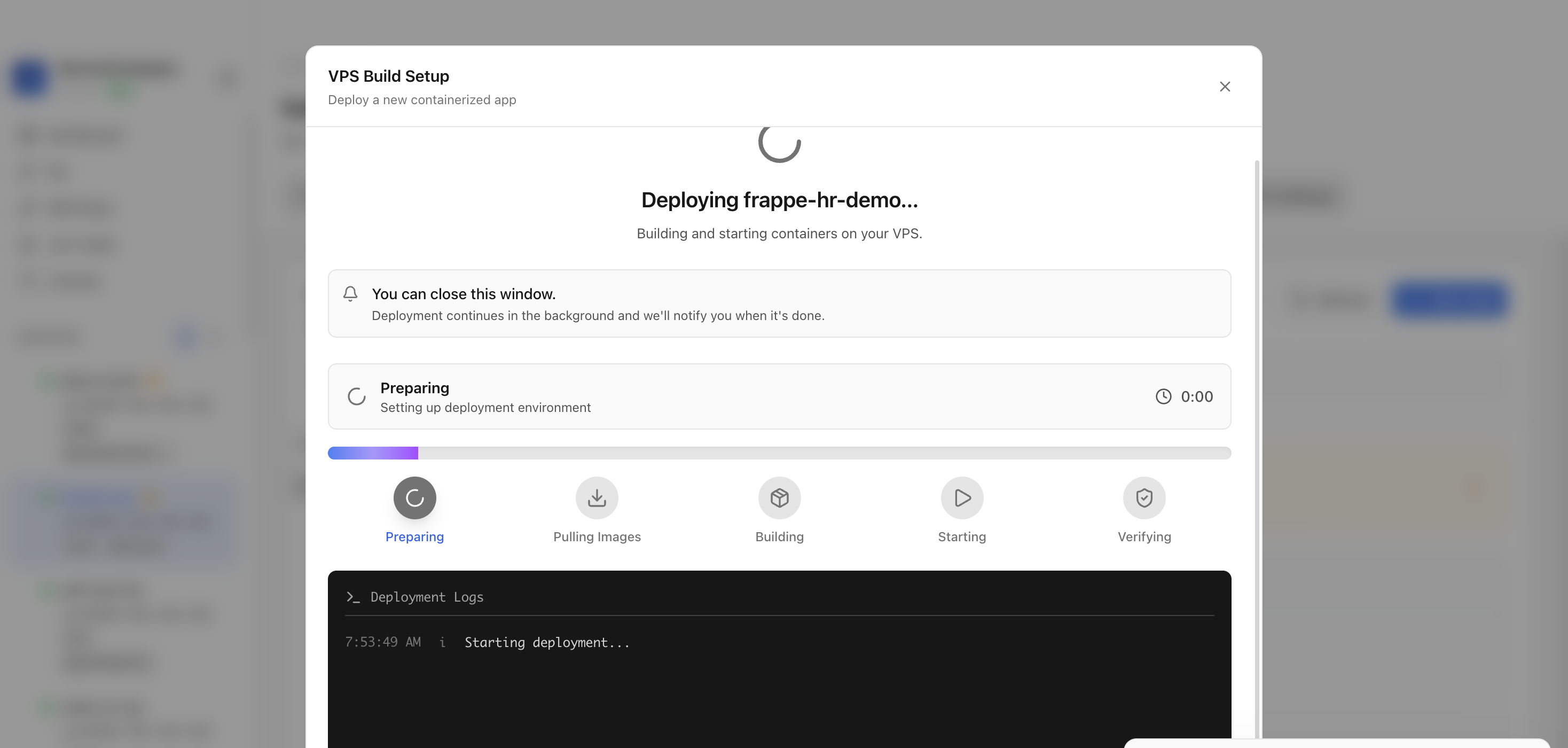

Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass writes the bootstrap script, pulls images, initializes Frappe, fetches ERPNext and HRMS, creates the site, installs HRMS, and starts the bench services.
8

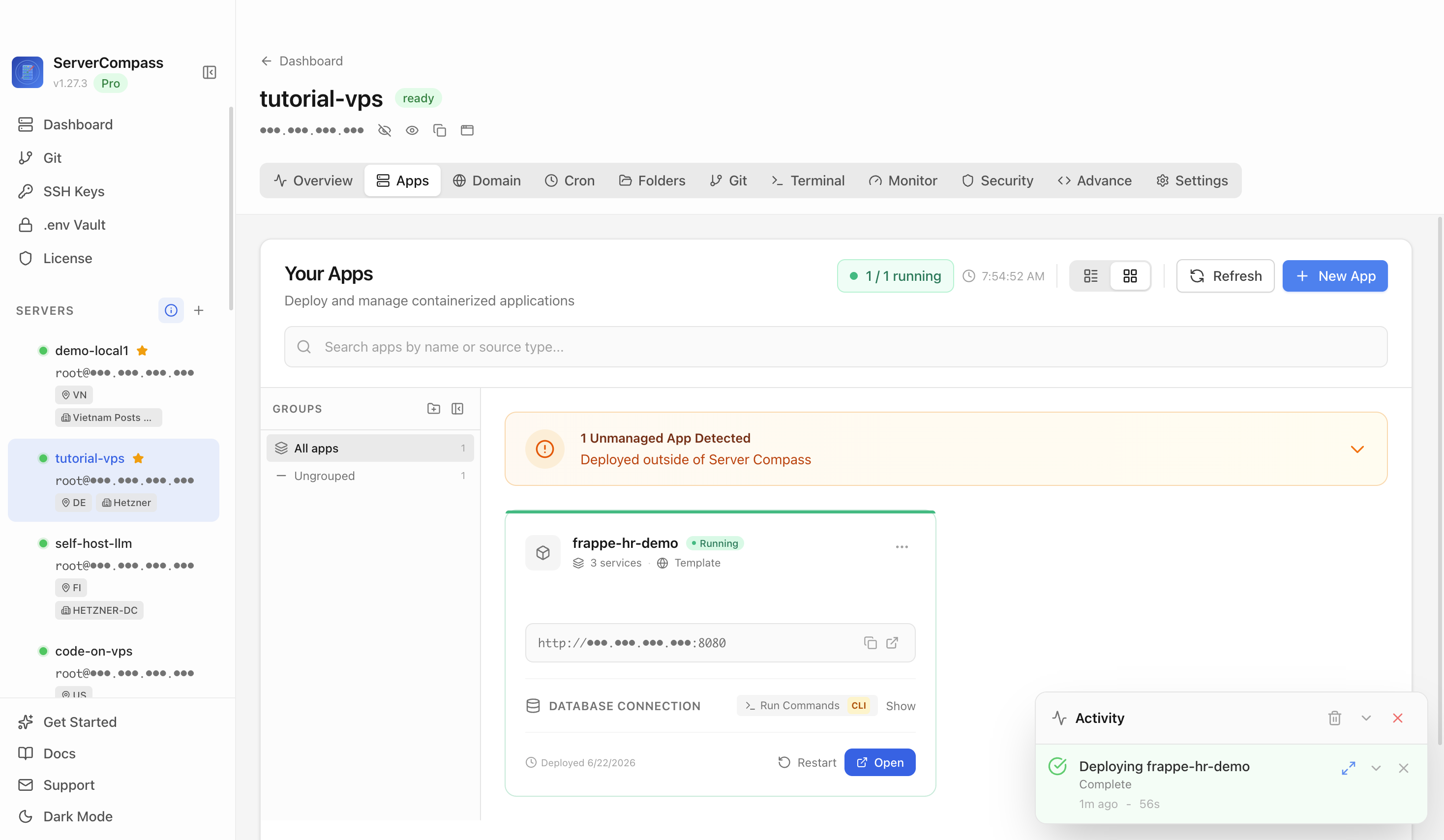

Step 8Confirm Frappe HR is running
After deployment finishes, return to the Apps tab and confirm the Frappe HR app is marked Running with its application URL available.
9

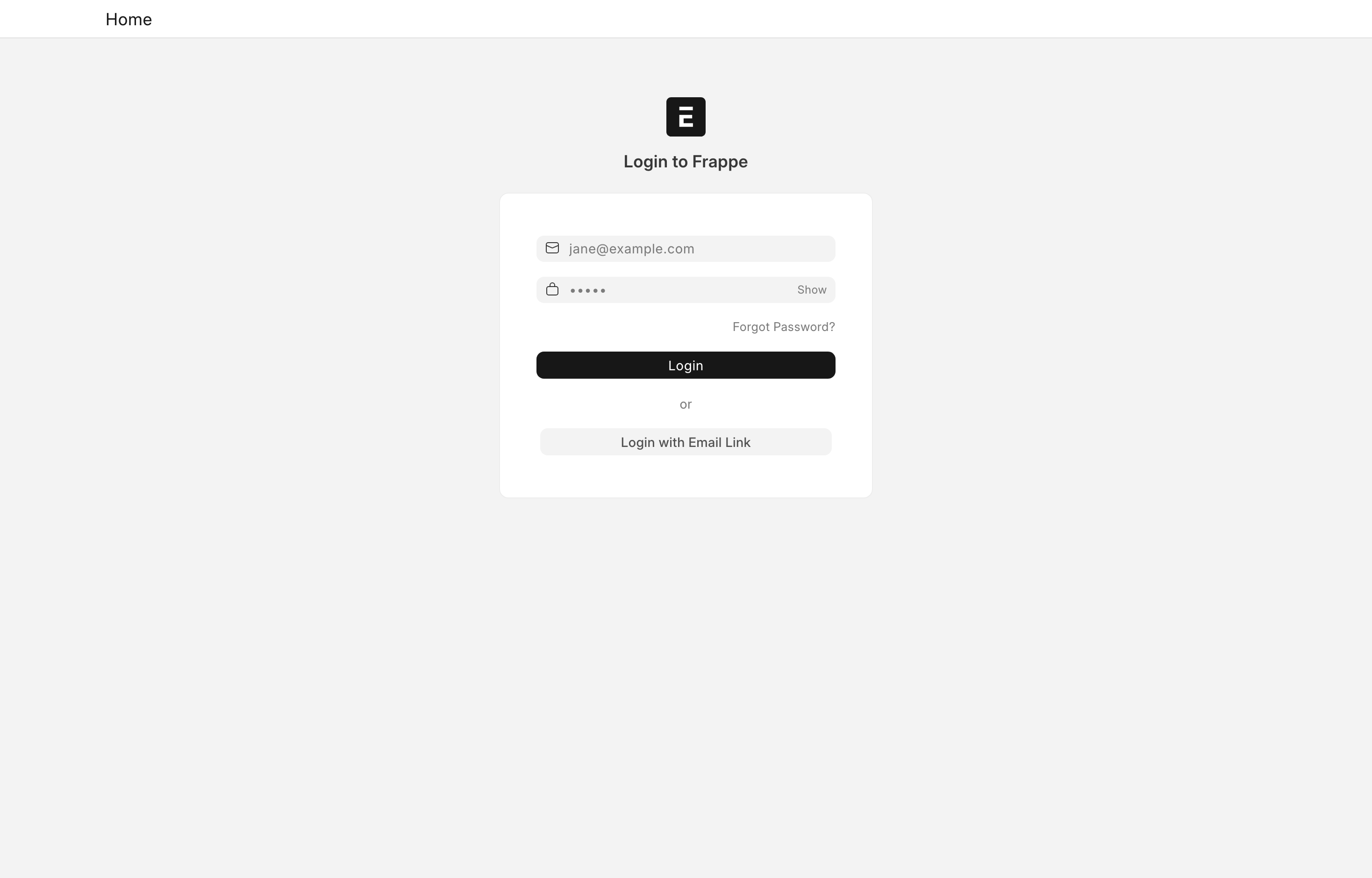

Step 9Open Frappe HR in the browser
Click Open Application or open the application URL in a browser. The Frappe HR login page confirms the deployed site was initialized and is reachable.
After Frappe HR Opens
- Sign in with the Administrator account and the generated Frappe HR administrator password from Server Compass.
- Keep the database and administrator passwords masked in screenshots and docs.
- Add a domain and HTTPS before inviting users or publishing content publicly.
- Create roles and permissions before publishing editorial workflows.
- Use the template for evaluation only; before storing employee data, move to a production Frappe deployment pattern with durable application storage, HTTPS, and tested backups.
Verified Result
The Frappe HR app loaded successfully in a browser and displayed the login page.
Frappe HR deployment questions
What does the Frappe HR template deploy?
It deploys the official Frappe HR Docker bootstrap shape with frappe/bench, MariaDB 10.8, Redis, Frappe version 15, ERPNext version 15, and HRMS version 15.
Which port did the tutorial use?
The tutorial used host port 8080, which maps to the Frappe bench web server on container port 8000.
Why does the browser verification stop at the login page?
A fresh Frappe HR deployment is considered reachable when the initialized site loads the login page. Continuing further would require entering generated administrator credentials, so the public guide verifies the safe pre-login state.
Should this become a blog post?
No. The deployment guide should live on the Frappe HR template detail page and be linked from the reusable template deployment docs page.
CLI Deployment
Deploy Frappe HR Yourself
Want full control? Here's how to deploy Frappe HR yourself using Docker Compose.
1
Remote into Your Server
Initiate a secure shell connection to your server using the command below.
terminal
# Connect to your VPS
ssh root@your-server-ip
# Or with a specific SSH key
ssh -i ~/.ssh/your-key root@your-server-ipFirst time? Docker required! Install it with: curl -fsSL https://get.docker.com | sh
2
Create the App Directory
Organize your deployment by creating a dedicated project folder.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/frappe-hr
cd ~/apps/frappe-hr3
Write Your docker-compose.yml
Create a new docker-compose.yml file and paste this configuration:
docker-compose.yml
services:
frappe:
image: frappe/erpnext:latest
ports:
- "8080:8000"
environment:
- SITE_NAME=<your-site-name>
- DB_HOST=db
- DB_PORT=3306
- REDIS_CACHE=redis:6379
- REDIS_QUEUE=redis:6379
volumes:
- frappe_sites:/home/frappe/frappe-bench/sites
- frappe_logs:/home/frappe/frappe-bench/logs
restart: unless-stopped
depends_on:
- db
- redis
db:
image: mariadb:11
environment:
- MARIADB_ROOT_PASSWORD=<your-db-root-password>
volumes:
- mariadb_data:/var/lib/mysql
restart: unless-stopped
redis:
image: redis:7-alpine
restart: unless-stopped
volumes:
frappe_sites:
frappe_logs:
mariadb_data:
Required Settings
PORTHost port(default: 8080)SITE_NAMESite nameDB_ROOT_PASSWORDRoot password4
Launch the Containers
Start the services and tail the logs to verify startup.
terminal
# Spin up containers
docker compose up -d
# Verify deployment
docker compose ps
# Check logs for errors
docker compose logs -f5
Open Firewall Ports
Open the required port in your firewall to allow access.
terminal
# Allow the application port through firewall
sudo ufw allow 8080/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:8080Skip the Terminal
Want the easy way? Try Server Compass.
Skip the terminal and deploy Frappe HR with a visual interface. Configure everything with clicks, not commands.
- Visual config editor
- Instant deployment
- Automatic HTTPS
- Smooth updates
- Live monitoring
- Quick rollbacks
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying Frappe HR with Server Compass, complete these steps to finish setup
1
Create site
2
Install HRMS app
3
Configure HR modules
Need help? Check out our documentation for detailed guides.
Frappe HR FAQ
Common questions about self-hosting Frappe HR
How do I deploy Frappe HR with Server Compass?
Simply download Server Compass, connect to your VPS, and select Frappe HR from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.
What are the system requirements for Frappe HR?
Frappe HR requires a minimum of 1024MB RAM. We recommend a VPS with at least 2048MB RAM for optimal performance. Any modern Linux server with Docker support will work.
Can I migrate my existing Frappe HR data?
Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard Frappe HR backup and restore procedures.
How do I update Frappe HR to the latest version?
Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest Frappe HR image will be pulled and deployed with zero downtime.
Is Frappe HR free to self-host?
Frappe HR is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
