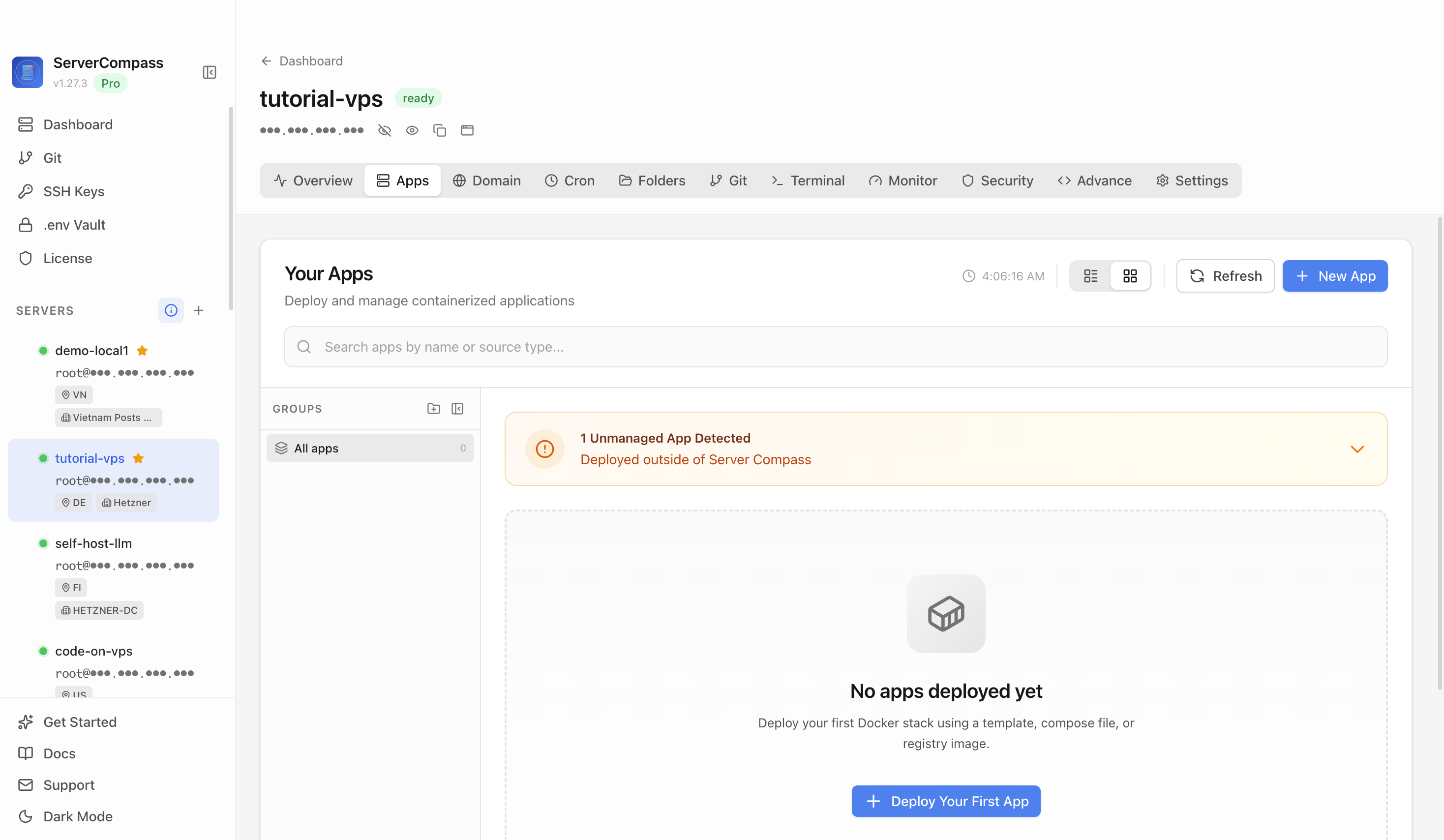

Step 1Open the server Apps tab
Select the tutorial-vps VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
Mastodon
Application2048MB+ RAM
Decentralized social network (Twitter alternative)
socialfediversetwitter-alternativeactivitypub
Deploy Mastodon in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select Mastodon
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy Mastodon on a VPS with Server Compass
Use the Mastodon template in Server Compass to deploy the web, streaming, Sidekiq, PostgreSQL, and Redis services, then verify the web health endpoint and public UI.
About 10 minutesBrowser verified
2

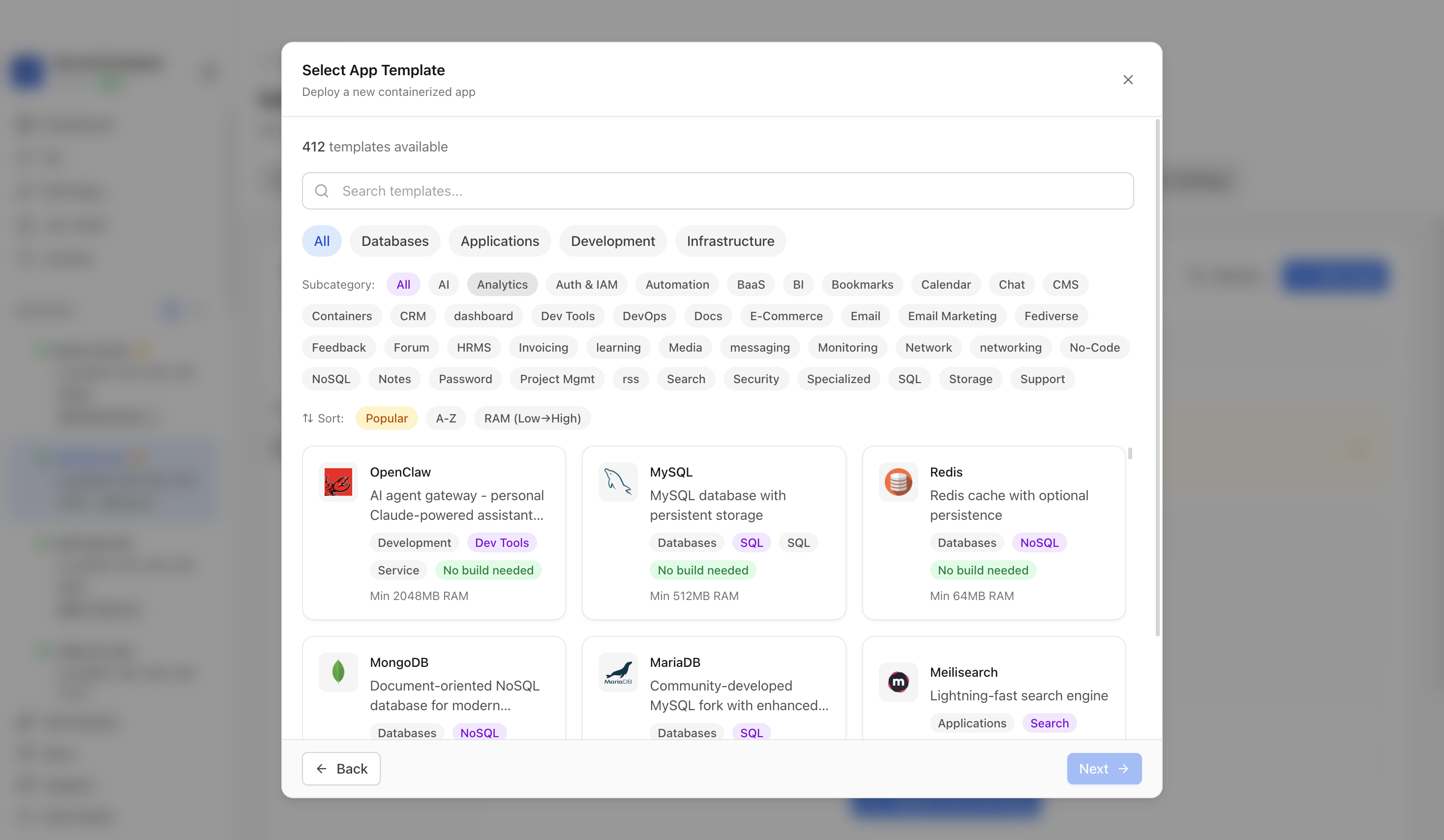

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

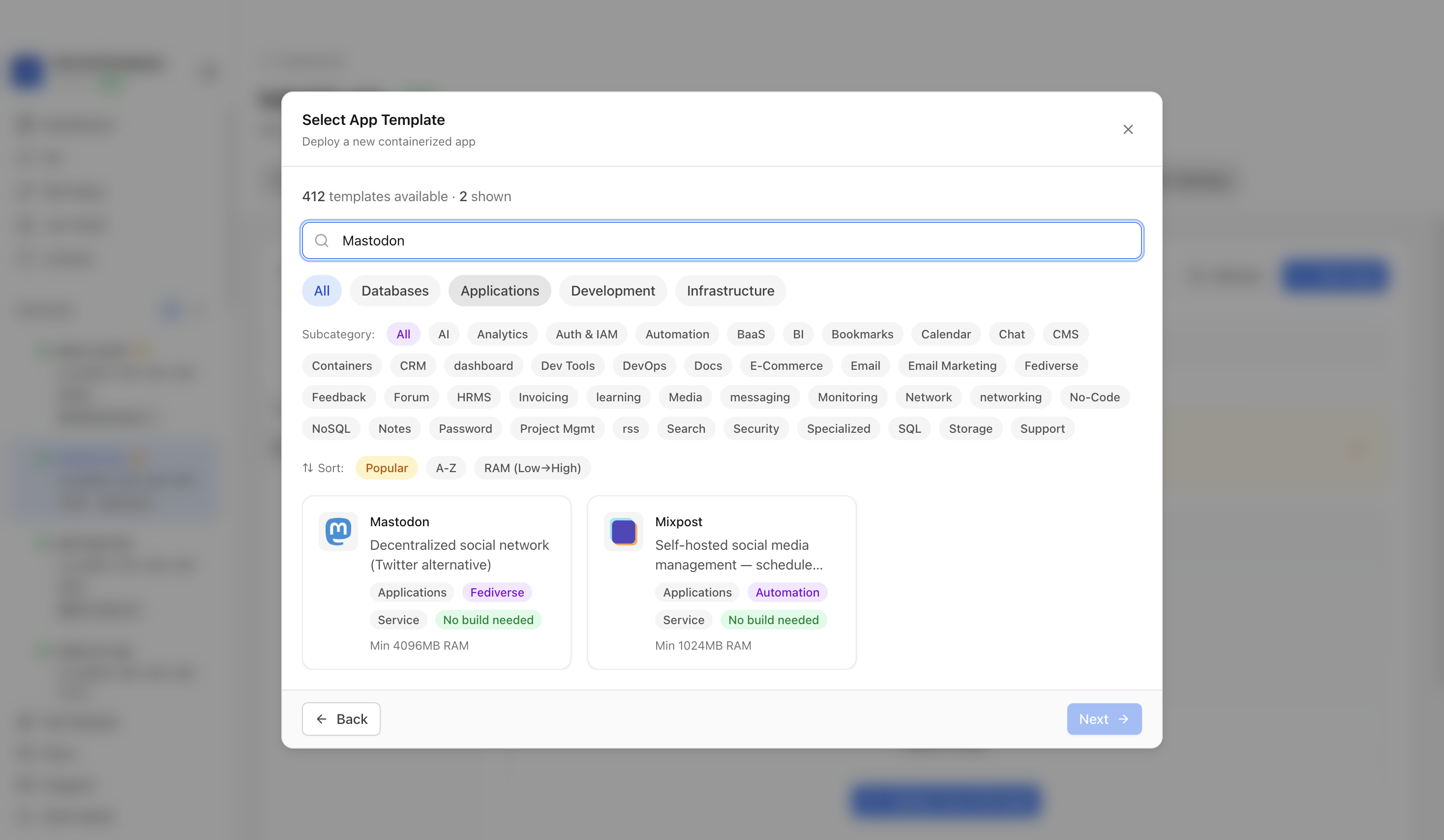

Step 3Search for Mastodon
Use the template picker search to find Mastodon in the Server Compass template catalog.
4

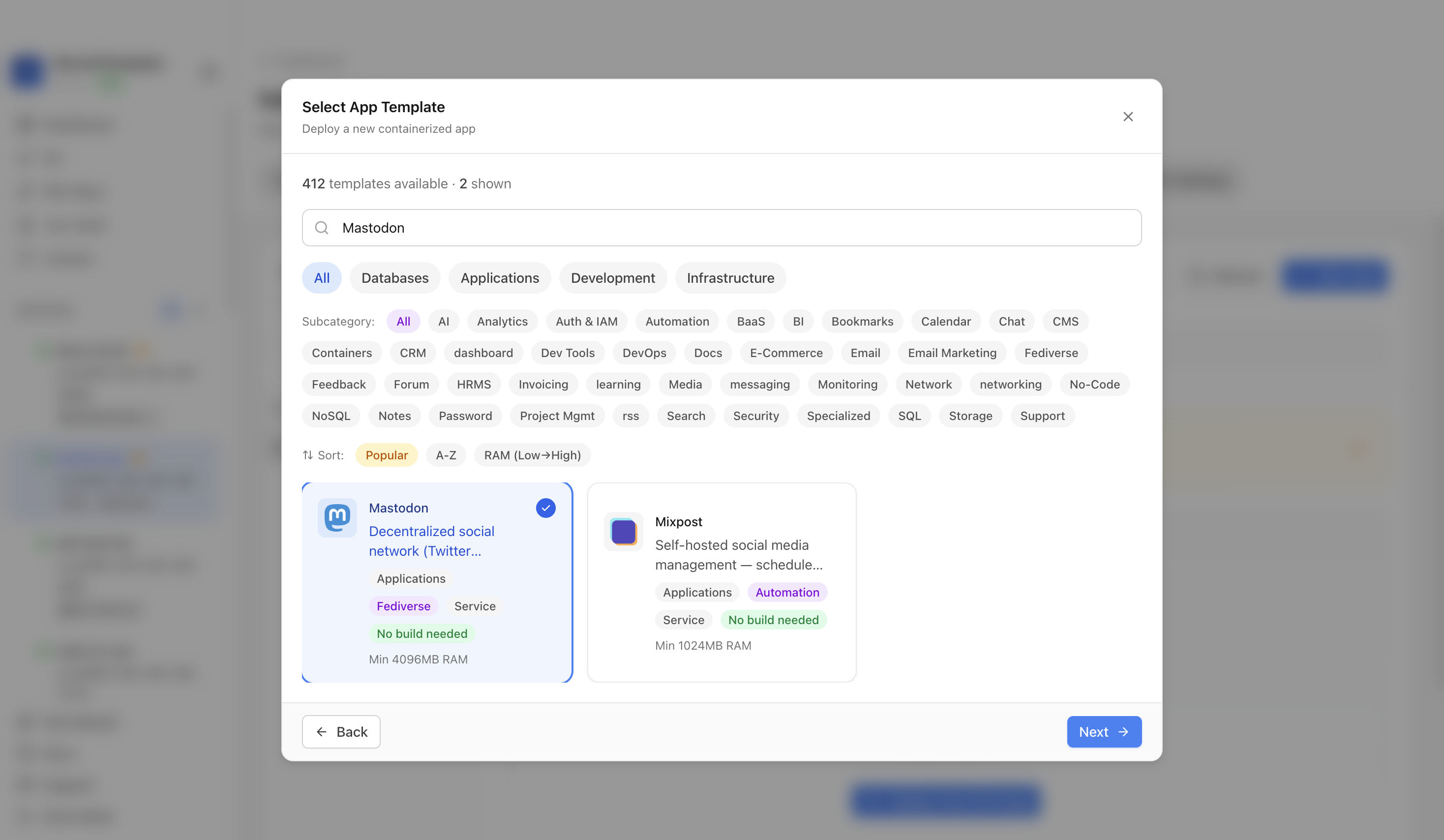

Step 4Select the Mastodon template
Choose the Mastodon template. Server Compass fills the Mastodon web, streaming, Sidekiq, PostgreSQL, Redis, setup migration service, persistent media volume, and required secrets.
5

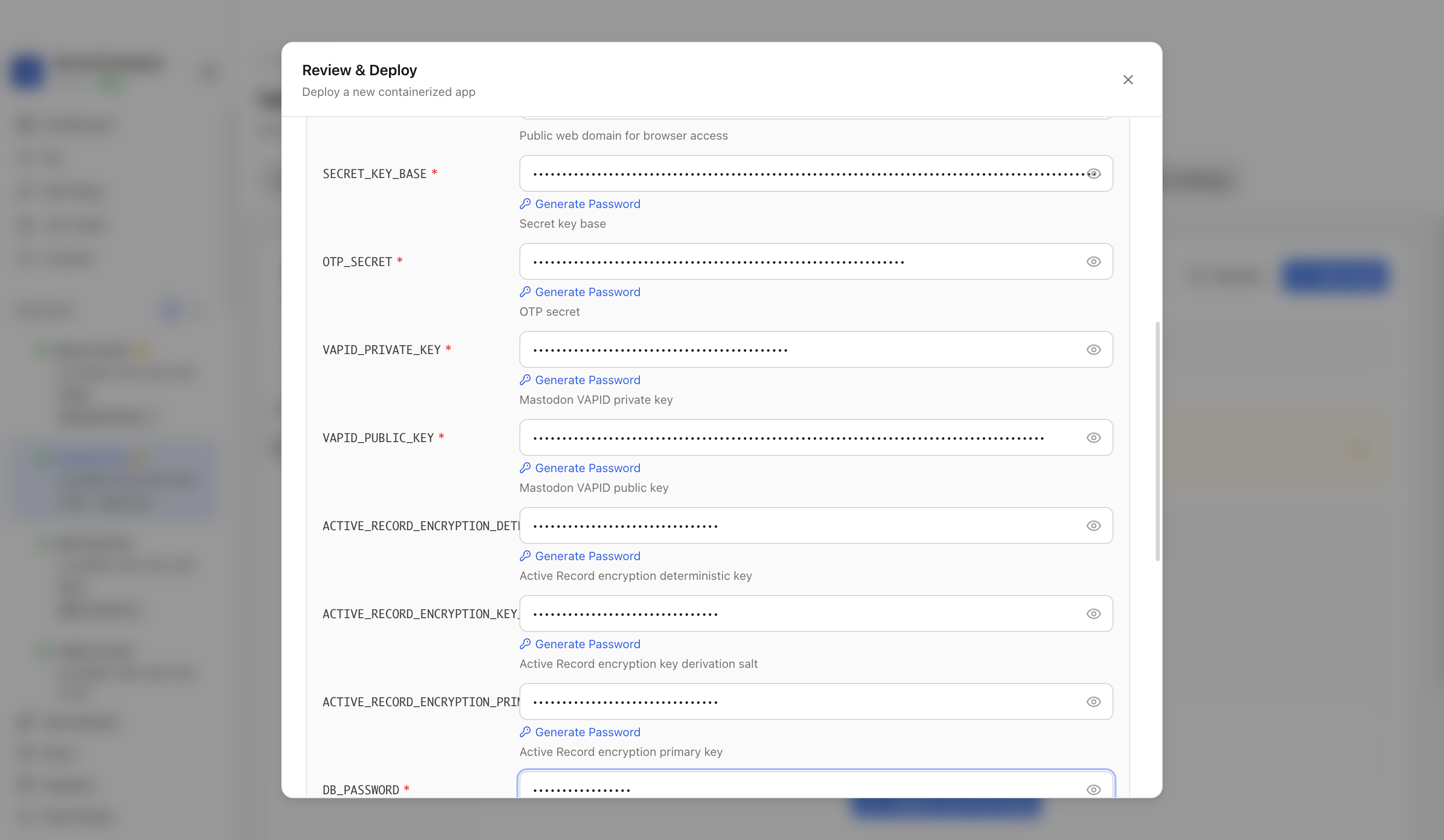

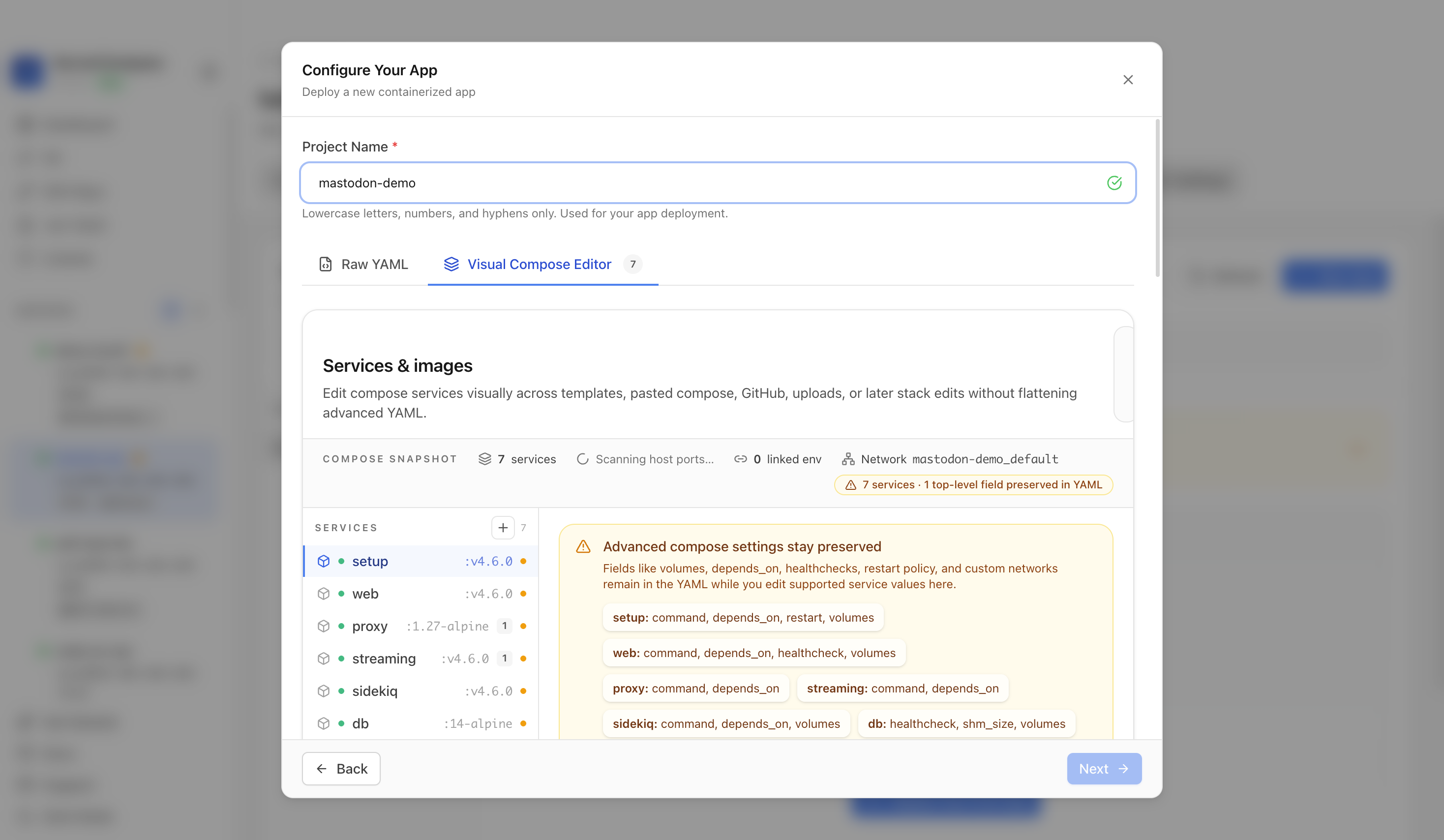

Step 5Review the Mastodon settings
Confirm the app name, local domain, web domain, generated secrets, web port, and streaming port. In this run, the app was named mastodon-demo and used host web port 4300.
6
Step 6Deploy Mastodon
Review the generated compose settings, confirm the Mastodon web and streaming ports are available, and click Deploy.
7

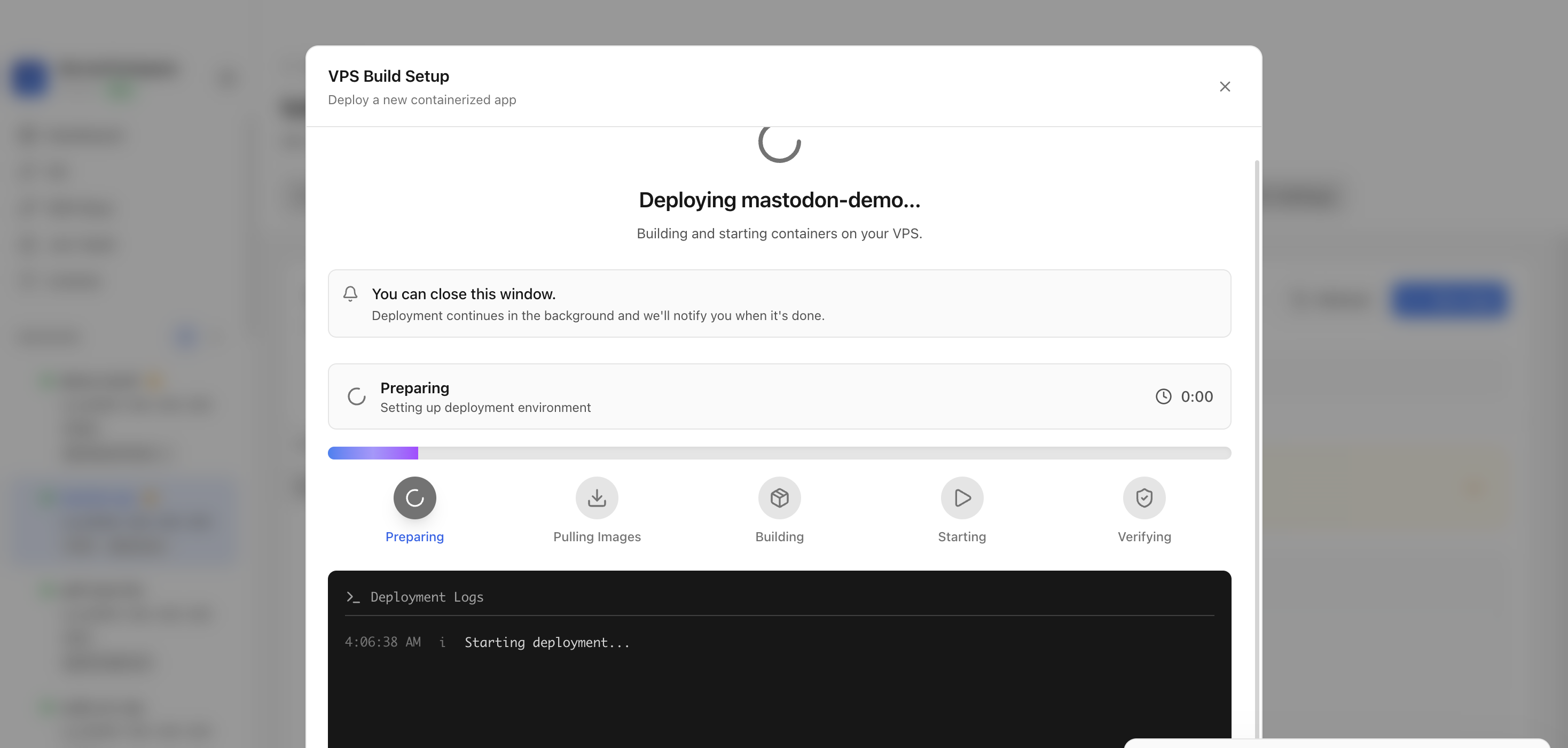

Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass uploads the compose file, pulls the Mastodon images, runs database setup, starts the web, streaming, and Sidekiq services, and verifies the stack.
8

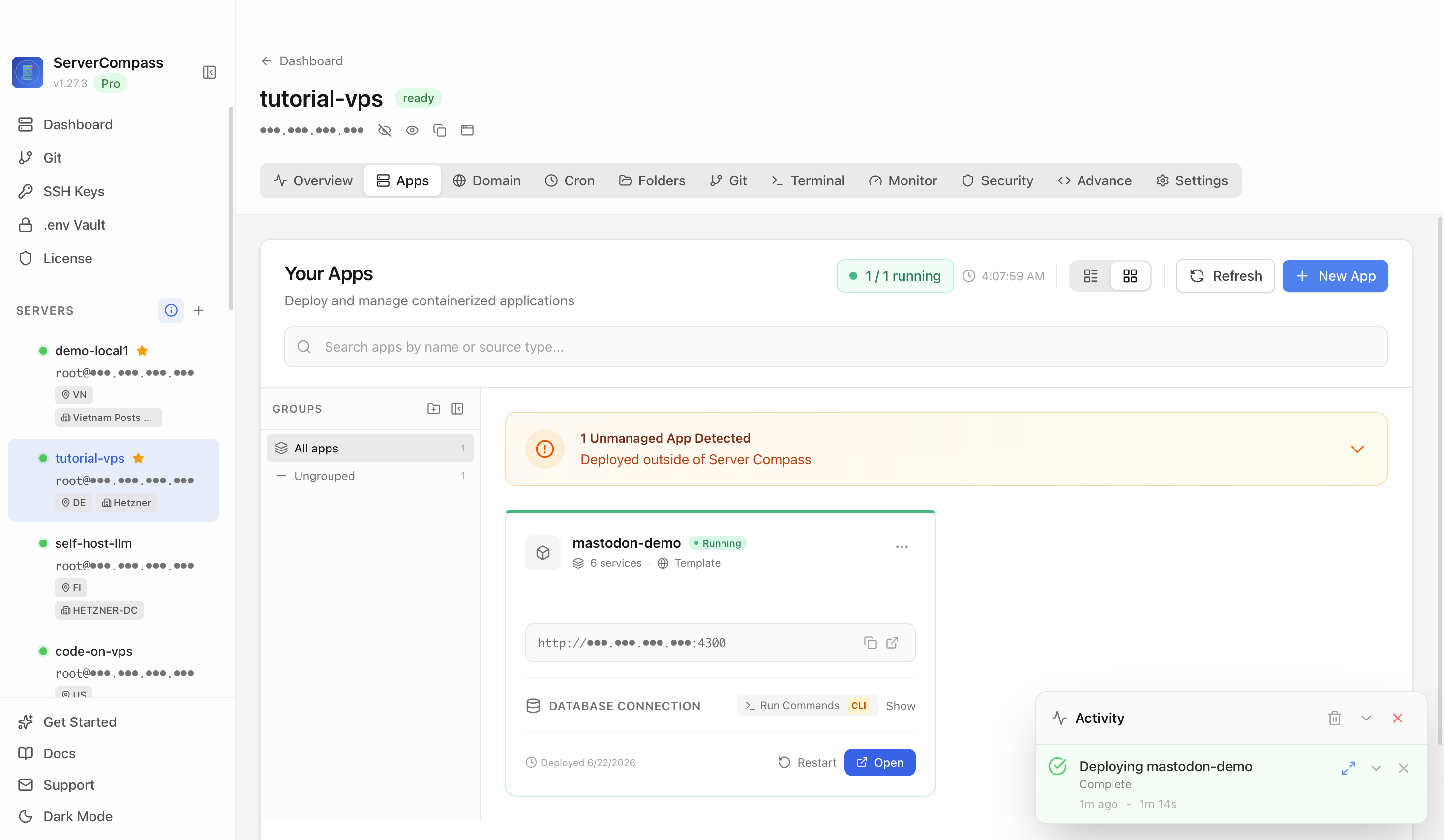

Step 8Confirm Mastodon is running
After deployment finishes, return to the Apps tab and confirm the Mastodon app is marked Running with its application URL available.
9

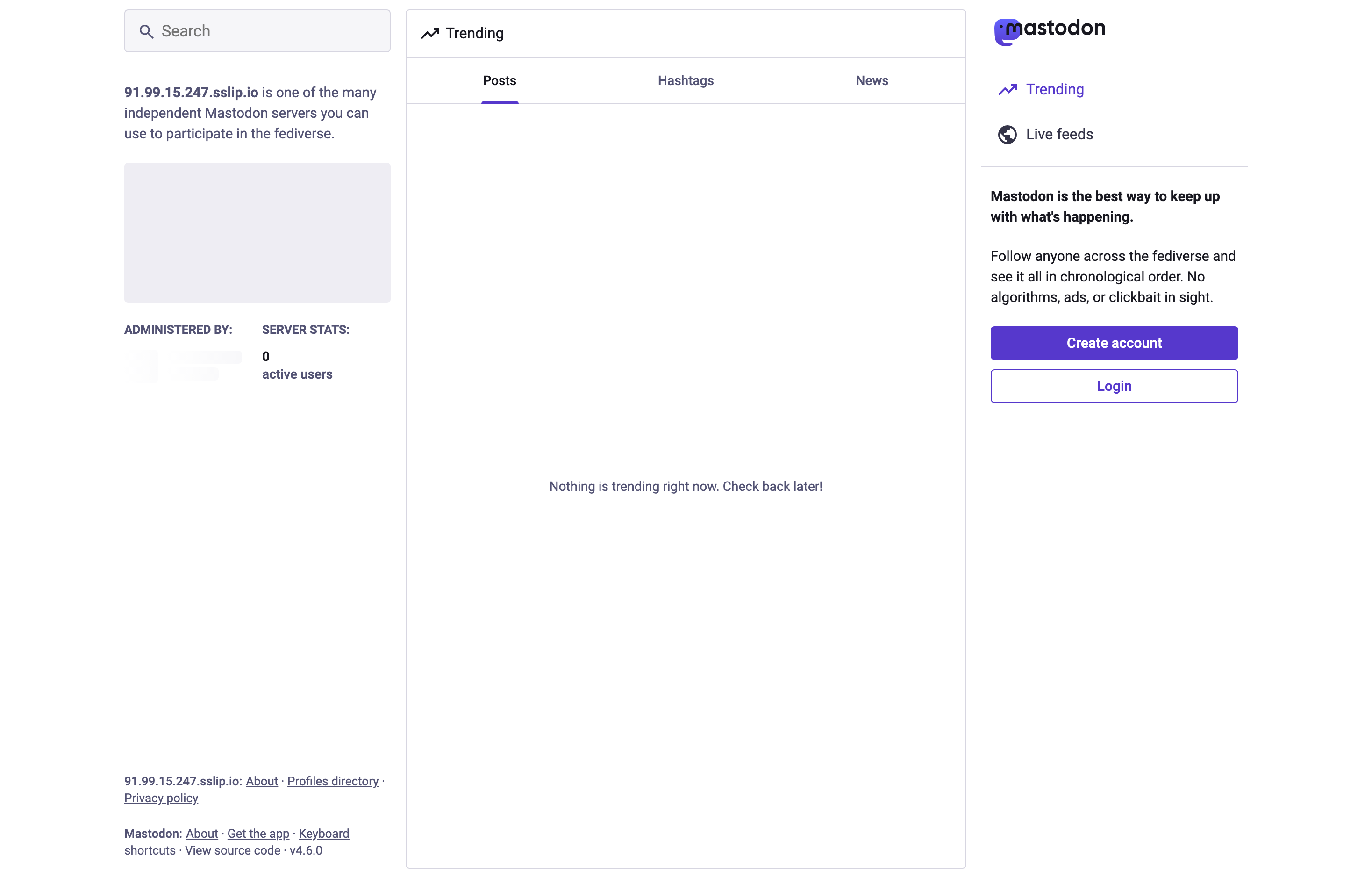

Step 9Open Mastodon in the browser
Open the application URL in a browser. The Mastodon web UI confirms the instance is reachable before you create the first administrator and configure federation requirements.
After Mastodon Opens
- Create the first Mastodon owner account with `tootctl accounts create USERNAME --email [email protected] --confirmed --role Owner`.
- Replace the tutorial sslip.io hostname with a real domain before inviting users.
- Configure HTTPS and SMTP before federation, signups, or notification email.
- Review moderation, registrations, server rules, and federation settings before opening the instance.
- Back up PostgreSQL and the Mastodon media volume before relying on the instance.
Verified Result
The Mastodon `/health` endpoint returned OK and the public web UI loaded through the configured sslip.io domain.
Mastodon deployment questions
What does the Mastodon template deploy?
It deploys Mastodon web, streaming, Sidekiq, PostgreSQL, Redis, a one-shot database setup service, and persistent media storage.
Which port did the tutorial use?
The tutorial used host web port 4300, which maps to the Mastodon web service on container port 3000.
Does Mastodon need setup after deployment?
Yes. Create the first owner account, configure a real domain, HTTPS, SMTP, and moderation settings before using it as a production federated server.
Should this become a blog post?
No. The deployment guide should live on the Mastodon template detail page and be linked from the reusable template deployment docs page.
DIY Deployment
Self-Host Mastodon with Docker
Take the DIY route and deploy Mastodon on your own server using Docker.
1
Remote into Your Server
Initiate a secure shell connection to your server using the command below.
terminal
# Connect to your VPS
ssh root@your-server-ip
# Or with a specific SSH key
ssh -i ~/.ssh/your-key root@your-server-ipFirst time? Docker required! Install it with: curl -fsSL https://get.docker.com | sh
2
Create the App Directory
Organize your deployment by creating a dedicated project folder.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/mastodon
cd ~/apps/mastodon3
Write Your docker-compose.yml
Create a new docker-compose.yml file and paste this configuration:
docker-compose.yml
services:
mastodon:
image: tootsuite/mastodon:latest
ports:
- "3000:3000"
environment:
- LOCAL_DOMAIN=<your-local-domain>
- SECRET_KEY_BASE=<your-secret-key>
- OTP_SECRET=<your-otp-secret>
- DB_HOST=db
- DB_USER=mastodon
- DB_PASS=<your-db-password>
- DB_NAME=mastodon
- REDIS_HOST=redis
command: bundle exec rails s -p 3000
volumes:
- mastodon_data:/mastodon/public/system
restart: unless-stopped
depends_on:
- db
- redis
sidekiq:
image: tootsuite/mastodon:latest
command: bundle exec sidekiq
environment:
- LOCAL_DOMAIN=<your-local-domain>
- SECRET_KEY_BASE=<your-secret-key>
- OTP_SECRET=<your-otp-secret>
- DB_HOST=db
- DB_USER=mastodon
- DB_PASS=<your-db-password>
- DB_NAME=mastodon
- REDIS_HOST=redis
volumes:
- mastodon_data:/mastodon/public/system
restart: unless-stopped
depends_on:
- db
- redis
streaming:
image: tootsuite/mastodon:latest
command: node ./streaming
ports:
- "4000:4000"
environment:
- LOCAL_DOMAIN=<your-local-domain>
- SECRET_KEY_BASE=<your-secret-key>
- DB_HOST=db
- DB_USER=mastodon
- DB_PASS=<your-db-password>
- DB_NAME=mastodon
- REDIS_HOST=redis
restart: unless-stopped
depends_on:
- db
- redis
db:
image: postgres:16-alpine
environment:
- POSTGRES_USER=mastodon
- POSTGRES_PASSWORD=<your-db-password>
- POSTGRES_DB=mastodon
volumes:
- postgres_data:/var/lib/postgresql/data
restart: unless-stopped
redis:
image: redis:7-alpine
volumes:
- redis_data:/data
restart: unless-stopped
volumes:
mastodon_data:
postgres_data:
redis_data:
Configurable Options
PORTHost port(default: 3000)LOCAL_DOMAINDomainSECRET_KEYSecret keyOTP_SECRETOTP secretDB_PASSWORDDB password4
Launch the Containers
Start the services and tail the logs to verify startup.
terminal
# Spin up containers
docker compose up -d
# Verify deployment
docker compose ps
# Check logs for errors
docker compose logs -f5
Open Firewall Ports
Open the required port in your firewall to allow access.
terminal
# Allow the application port through firewall
sudo ufw allow 3000/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:3000Skip the Terminal
Want the easy way? Try Server Compass.
Forget SSH and YAML files. Deploy Mastodon visually with Server Compass in just a few clicks.
- Visual config editor
- Instant deployment
- Automatic HTTPS
- Smooth updates
- Live monitoring
- Quick rollbacks
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying Mastodon with Server Compass, complete these steps to finish setup
1
Run: tootctl db:setup
2
Create admin account
3
Configure SMTP
Need help? Check out our documentation for detailed guides.
Mastodon FAQ
Common questions about self-hosting Mastodon
How do I deploy Mastodon with Server Compass?
Simply download Server Compass, connect to your VPS, and select Mastodon from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.
What are the system requirements for Mastodon?
Mastodon requires a minimum of 2048MB RAM. We recommend a VPS with at least 4096MB RAM for optimal performance. Any modern Linux server with Docker support will work.
Can I migrate my existing Mastodon data?
Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard Mastodon backup and restore procedures.
How do I update Mastodon to the latest version?
Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest Mastodon image will be pulled and deployed with zero downtime.
Is Mastodon free to self-host?
Mastodon is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
