OrangeHRM

Application512MB+ RAM

Open-source human resource management system

Download Server Compass View Documentation

hrhrmsemployeesmanagement

Deploy OrangeHRM in 3 Steps

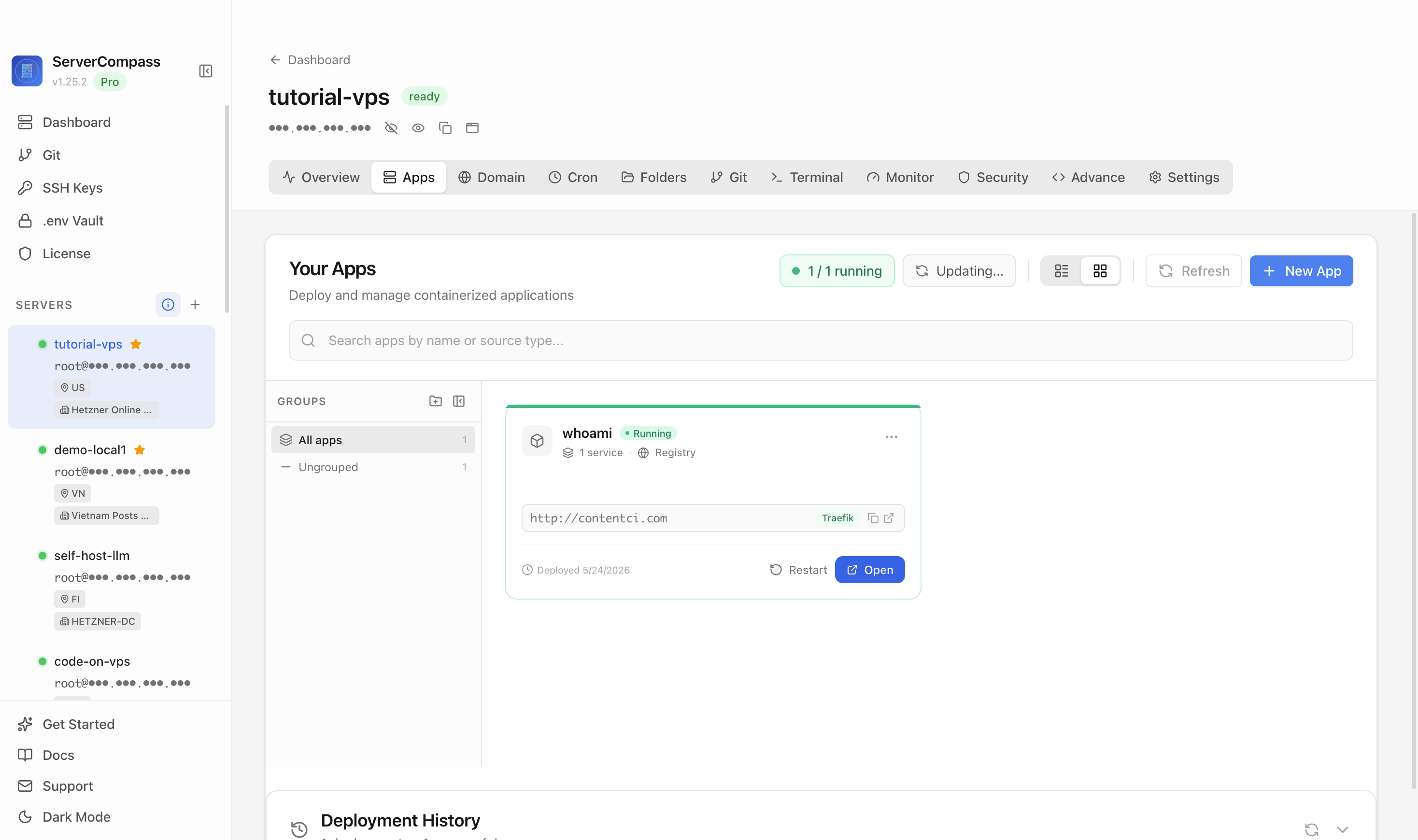

Connect Your VPS

Add your server credentials to Server Compass

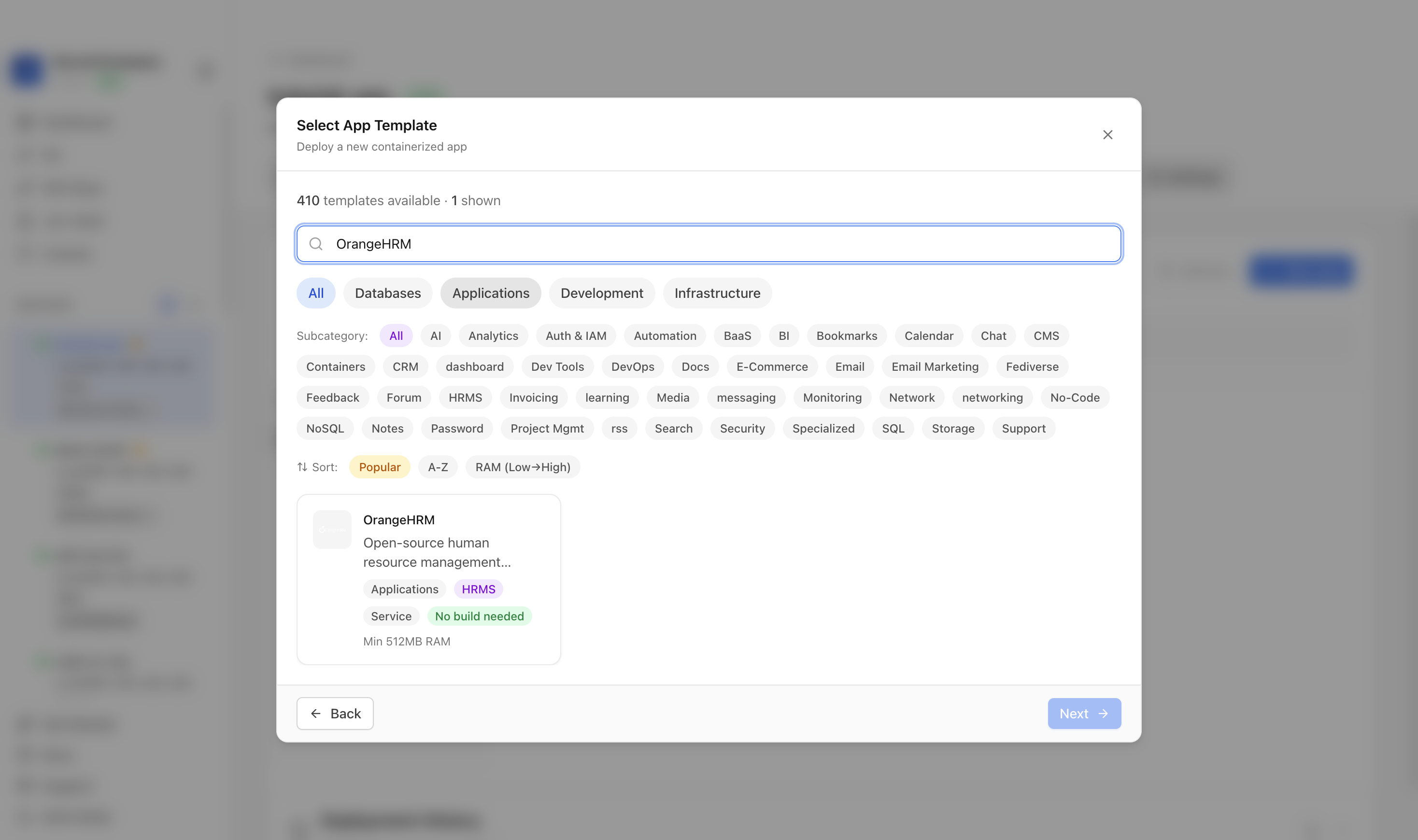

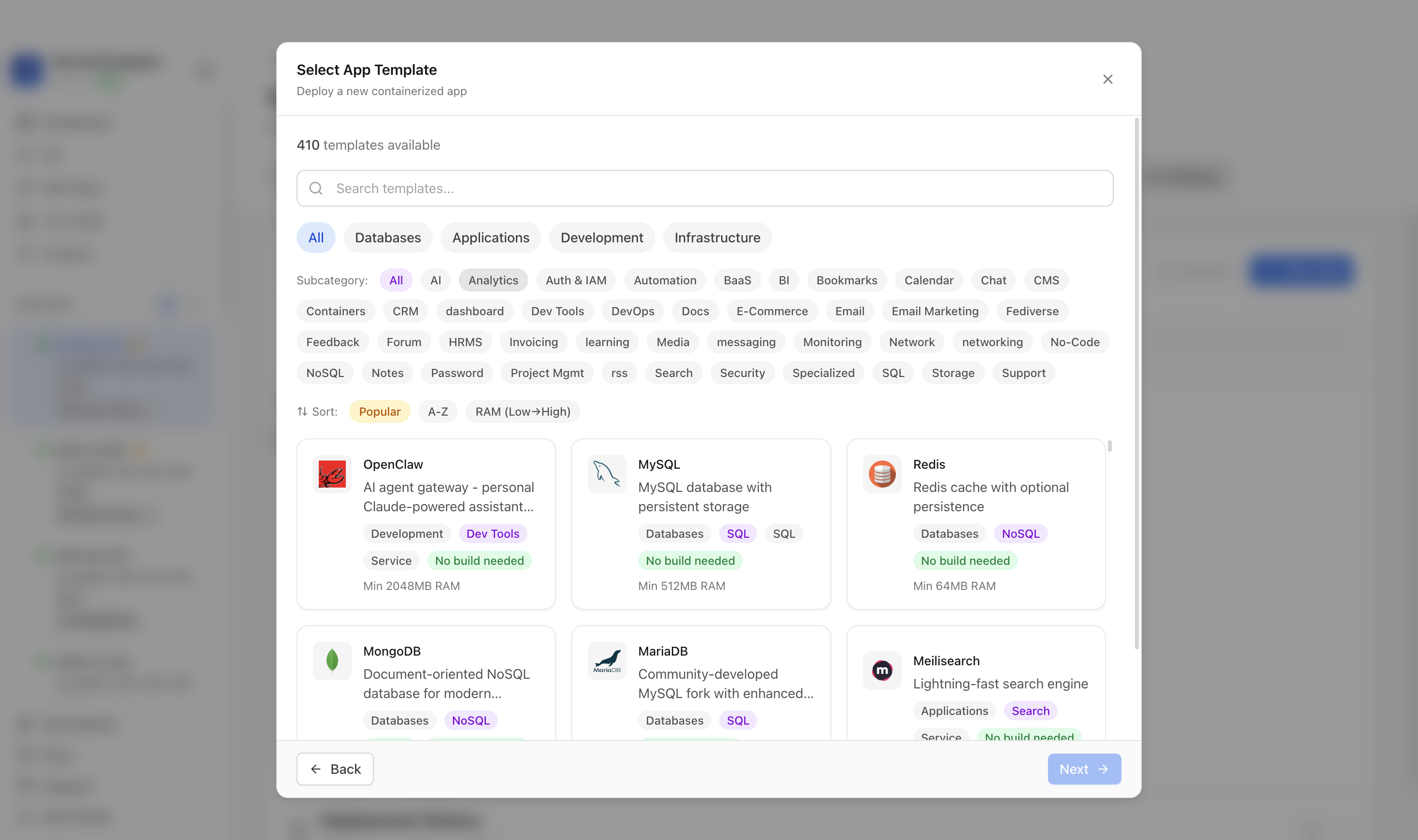

Select OrangeHRM

Choose from our template library

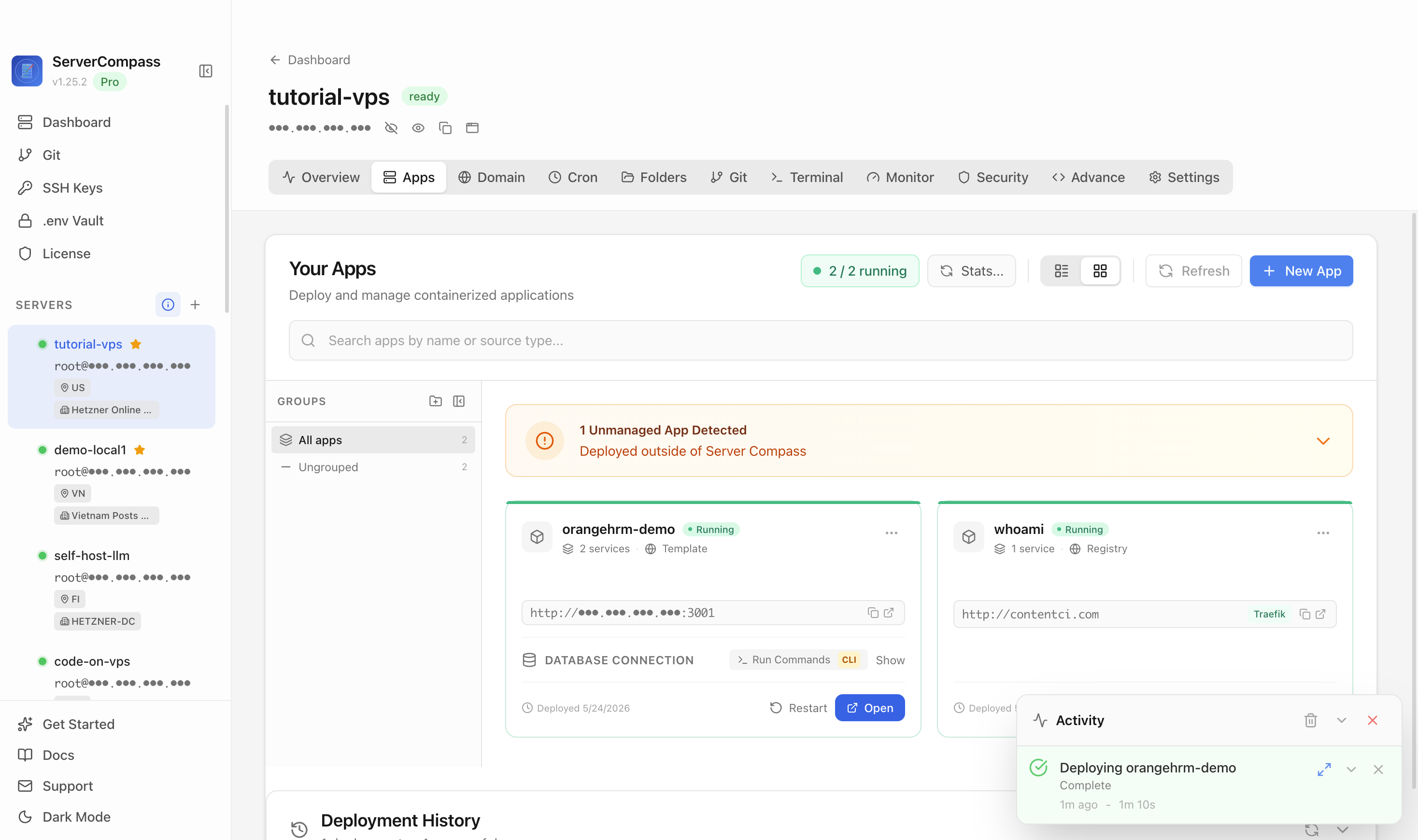

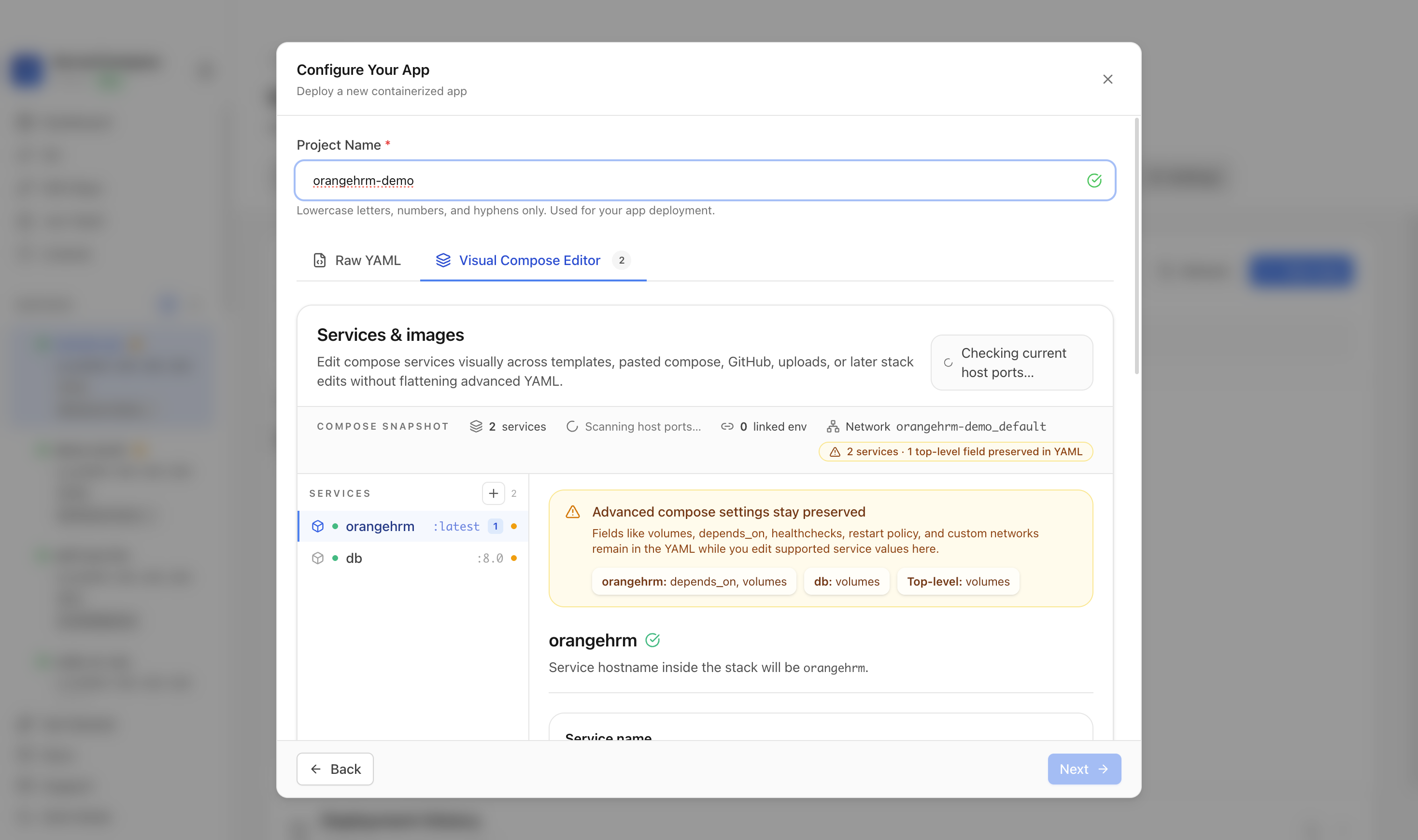

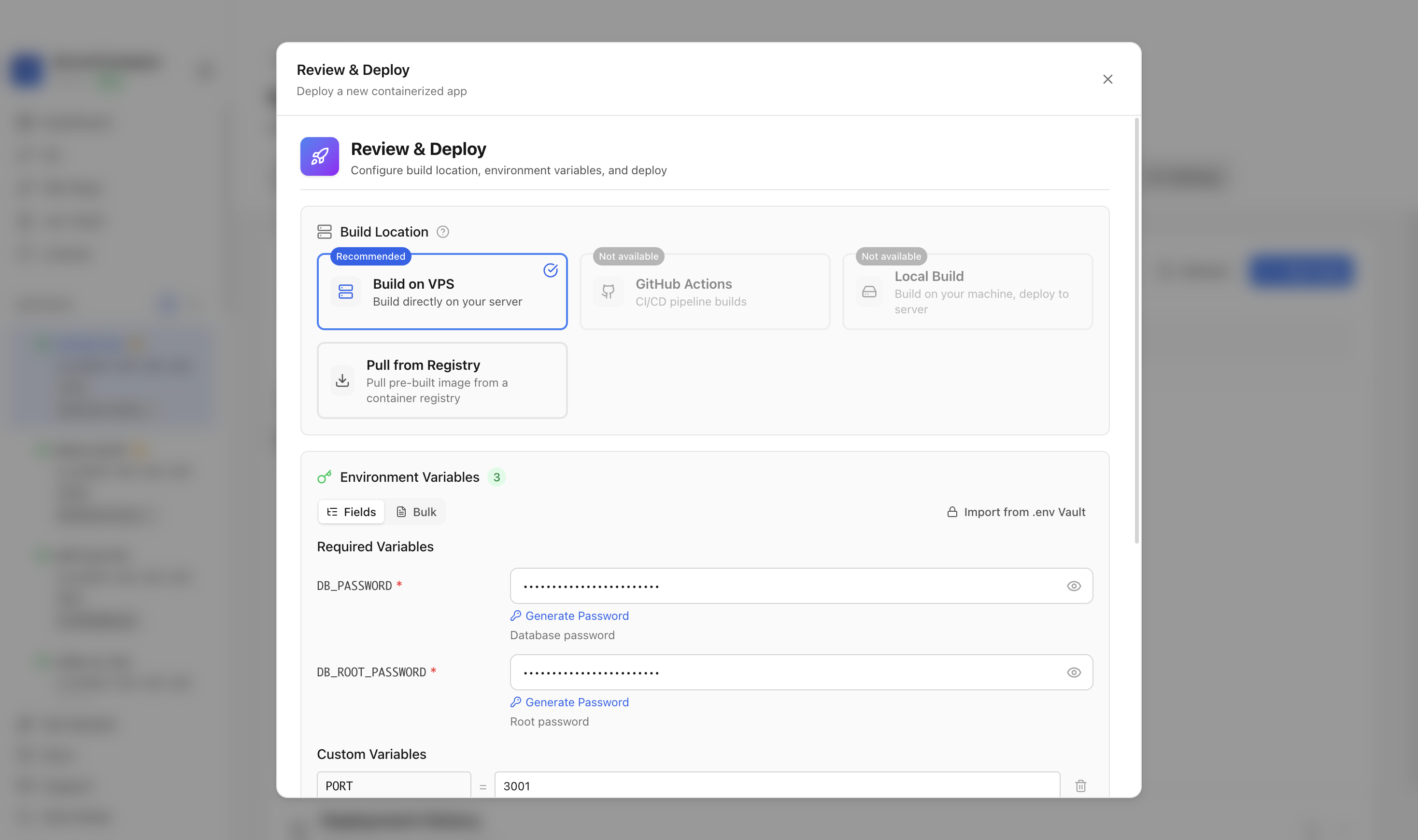

Deploy & Configure

Fill in settings and click Deploy

No Docker knowledge required

Manual Setup Guide

Set Up OrangeHRM from Terminal

Get your hands dirty: manual OrangeHRM deployment guide for developers.

Remote into Your Server

Initiate a secure shell connection to your server using the command below.

terminal

# Connect to your VPS
ssh root@your-server-ip

# Or with a specific SSH key
ssh -i ~/.ssh/your-key root@your-server-ip

First time? Docker required! Install it with: curl -fsSL https://get.docker.com | sh

Create the App Directory

Organize your deployment by creating a dedicated project folder.

terminal

# Create and navigate to project directory
mkdir -p ~/apps/orangehrm
cd ~/apps/orangehrm

Write Your docker-compose.yml

Create a new docker-compose.yml file and paste this configuration:

docker-compose.yml

services:
  orangehrm:
    image: orangehrm/orangehrm:latest
    ports:
      - "8080:80"
    environment:
      - ORANGEHRM_DATABASE_HOST=db
      - ORANGEHRM_DATABASE_USER=orangehrm
      - ORANGEHRM_DATABASE_PASSWORD=<your-db-password>
      - ORANGEHRM_DATABASE_NAME=orangehrm
    volumes:
      - orangehrm_data:/var/www/html
    restart: unless-stopped
    depends_on:
      - db

  db:
    image: mysql:8.0
    environment:
      - MYSQL_ROOT_PASSWORD=<your-db-root-password>
      - MYSQL_DATABASE=orangehrm
      - MYSQL_USER=orangehrm
      - MYSQL_PASSWORD=<your-db-password>
    volumes:
      - mysql_data:/var/lib/mysql
    restart: unless-stopped

volumes:
  orangehrm_data:
  mysql_data:

Environment Variables

PORTHost port(default: 8080)

DB_PASSWORDDB password

DB_ROOT_PASSWORDRoot password

Launch the Containers

Start the services and tail the logs to verify startup.

terminal

# Spin up containers
docker compose up -d

# Verify deployment
docker compose ps

# Check logs for errors
docker compose logs -f

Open Firewall Ports

Open the required port in your firewall to allow access.

terminal

# Allow the application port through firewall
sudo ufw allow 8080/tcp
sudo ufw reload

# Access your app at:
# http://your-server-ip:8080

Skip the Terminal

Want the easy way? Try Server Compass.

Why type commands when you can click? Deploy OrangeHRM the easy way with Server Compass.

Visual config editor
Instant deployment
Automatic HTTPS
Smooth updates
Live monitoring
Quick rollbacks

Download Server Compass$29 one-time • Lifetime license

After Deployment

After deploying OrangeHRM with Server Compass, complete these steps to finish setup

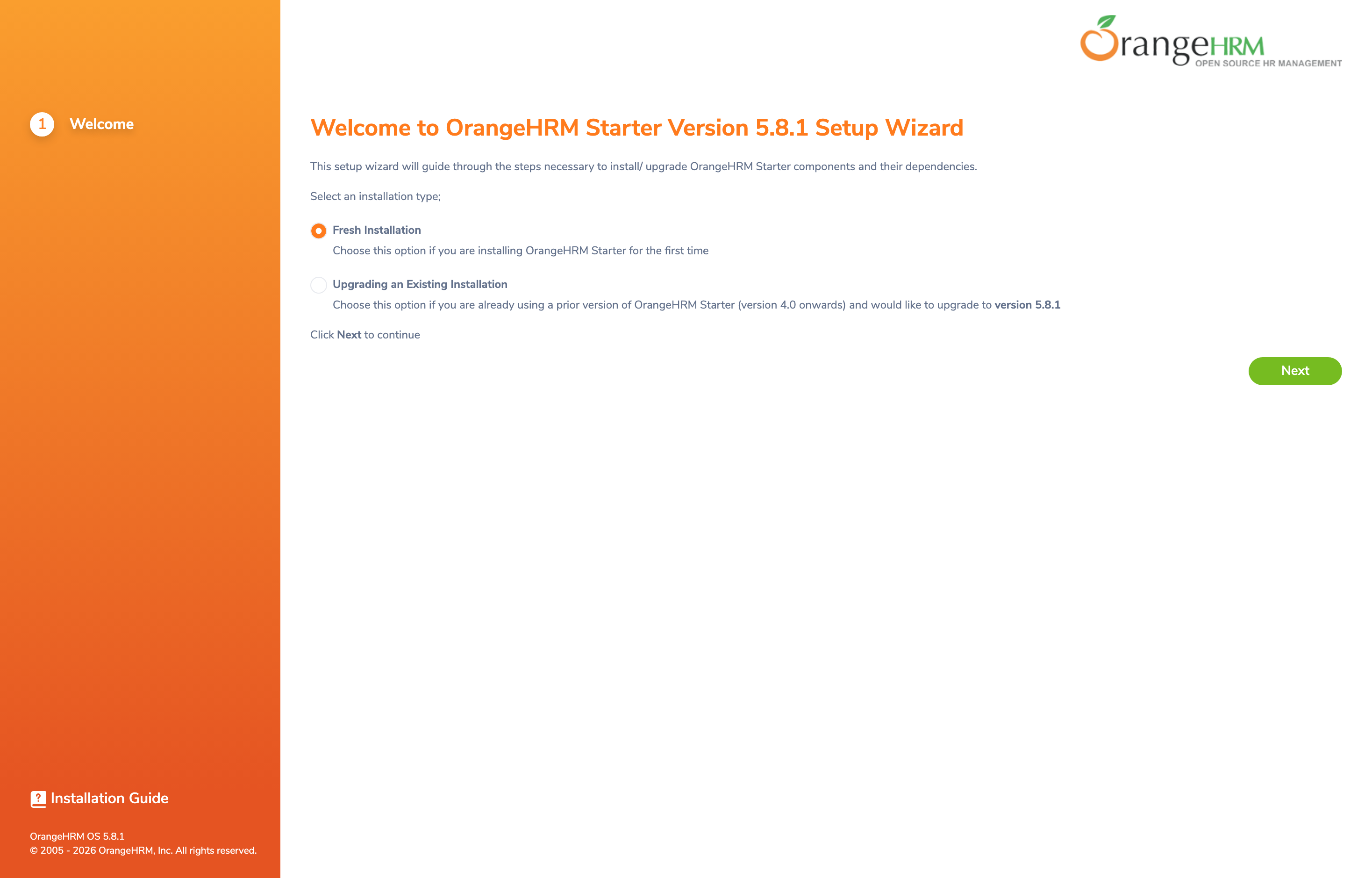

Complete installation wizard

Create admin account

Configure organization structure

Need help? Check out our documentation for detailed guides.

OrangeHRM FAQ

Common questions about self-hosting OrangeHRM

How do I deploy OrangeHRM with Server Compass?

Simply download Server Compass, connect to your VPS, and select OrangeHRM from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.

What are the system requirements for OrangeHRM?

OrangeHRM requires a minimum of 512MB RAM. We recommend a VPS with at least 1024MB RAM for optimal performance. Any modern Linux server with Docker support will work.

Can I migrate my existing OrangeHRM data?

Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard OrangeHRM backup and restore procedures.

How do I update OrangeHRM to the latest version?

Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest OrangeHRM image will be pulled and deployed with zero downtime.

Is OrangeHRM free to self-host?

OrangeHRM is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
