1

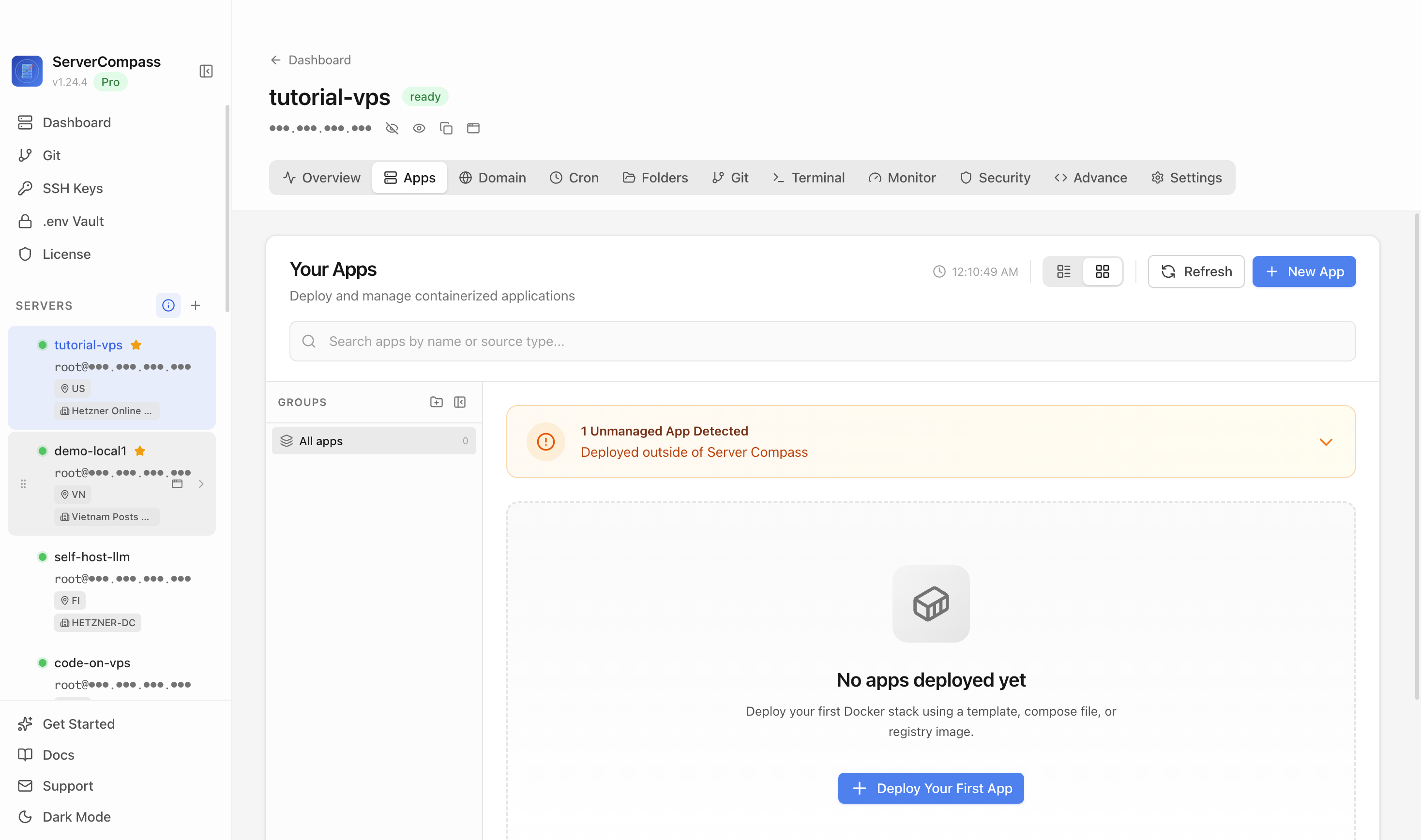

Step 1Open the server Apps tab
Select the tutorial-vps VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
Portainer
Infrastructure256MB+ RAM
Container management UI for Docker and Kubernetes
containersdockerkubernetesmanagement
Deploy Portainer in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select Portainer
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy Portainer on a VPS with Server Compass
Use the Portainer template in Server Compass to deploy a Docker management UI on your VPS, then verify the initial administrator setup screen in a browser.
About 10 minutesBrowser verified
2

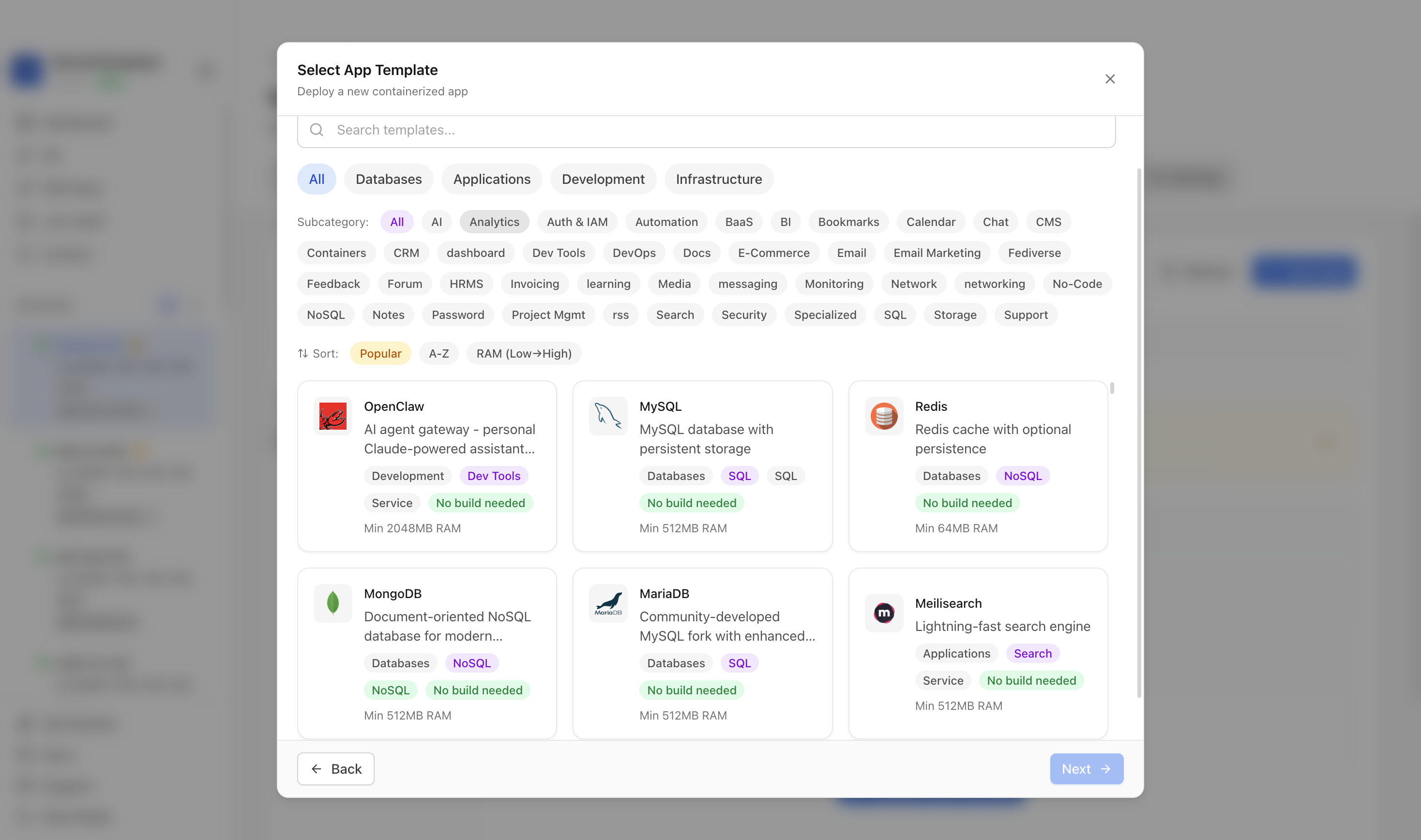

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

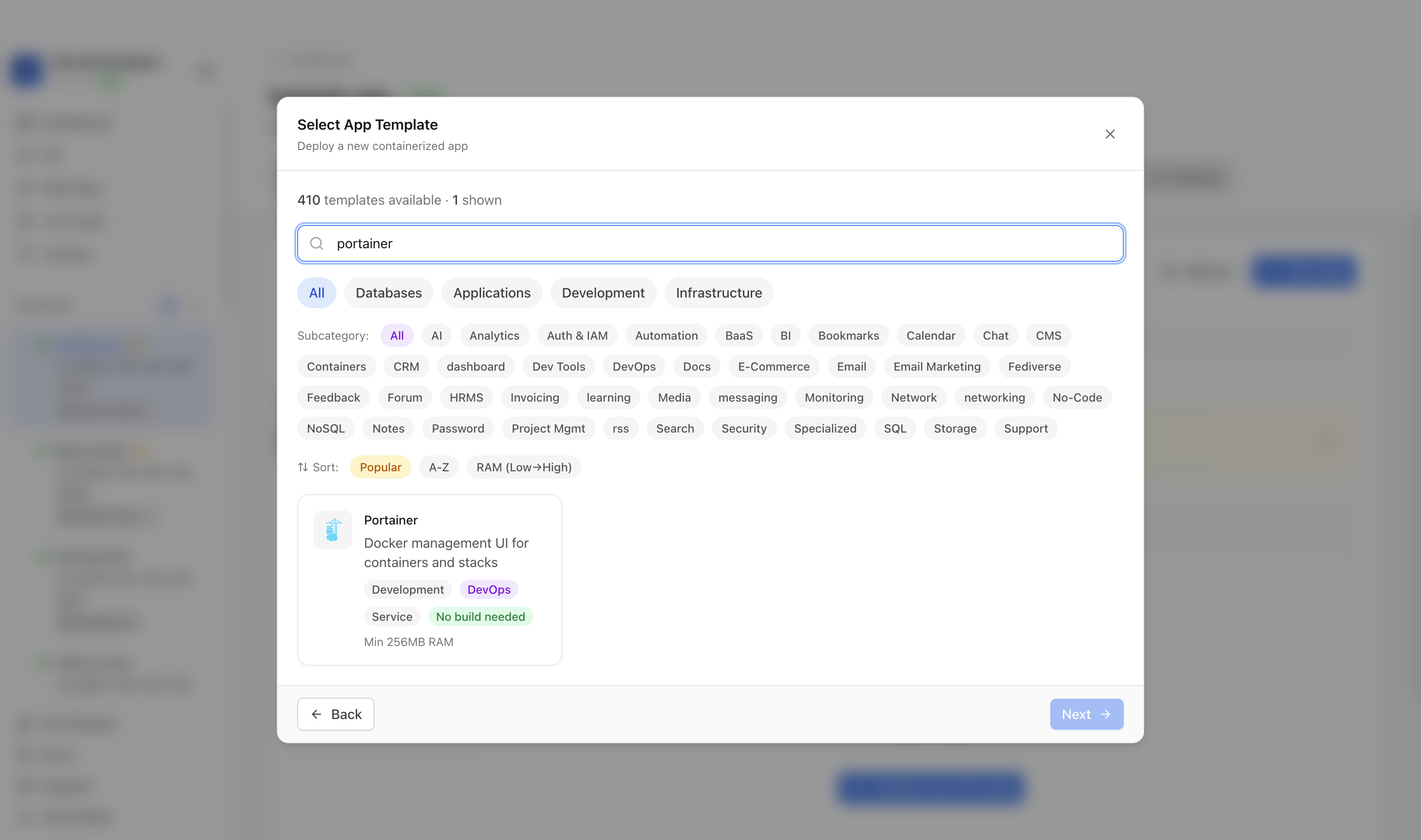

Step 3Search for Portainer
Use the template picker search to find Portainer in the Server Compass template catalog.
4

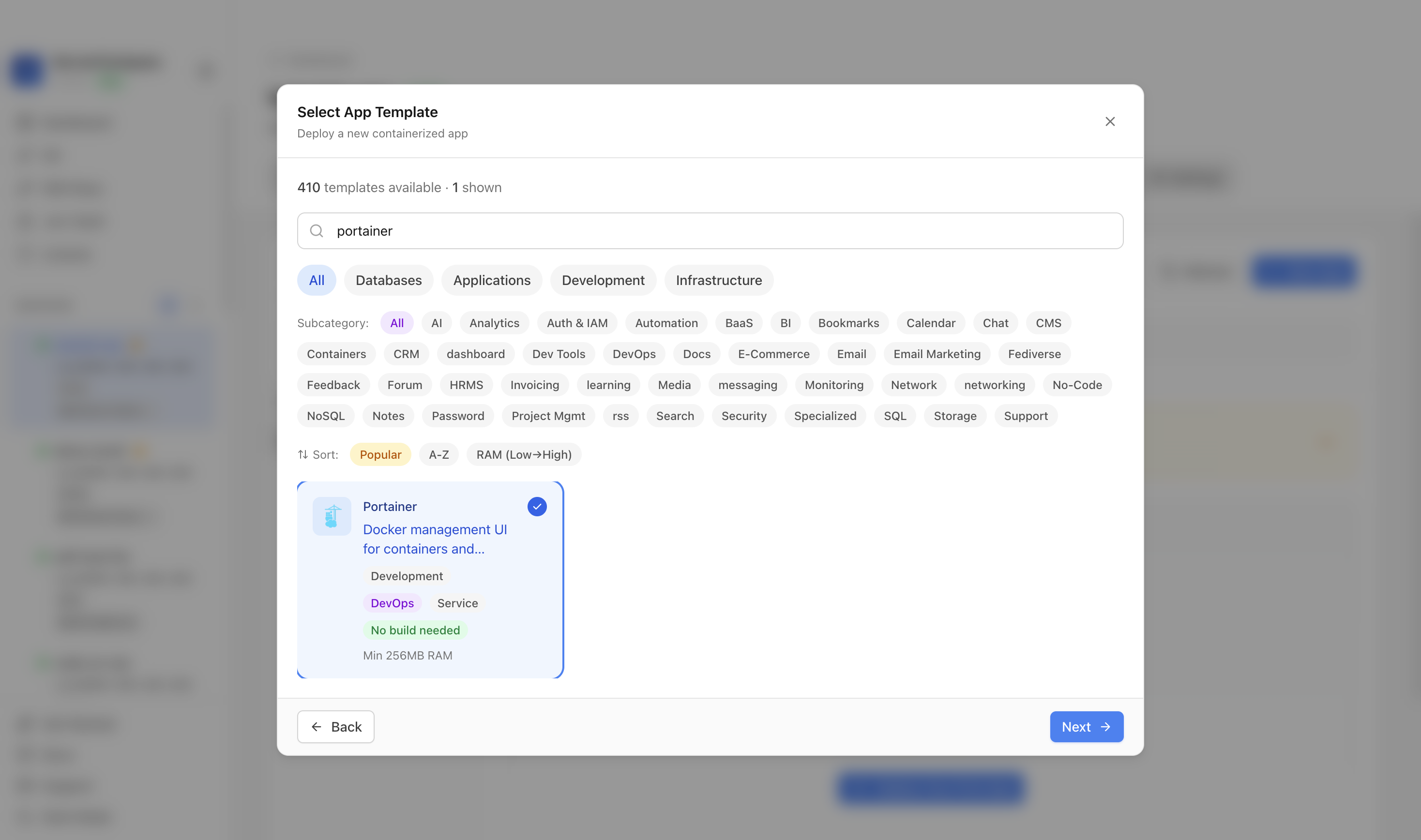

Step 4Select the Portainer template
Choose the Portainer template. Server Compass fills the Portainer service, persistent data volume, HTTP port, HTTPS port, and Docker socket mount.
5

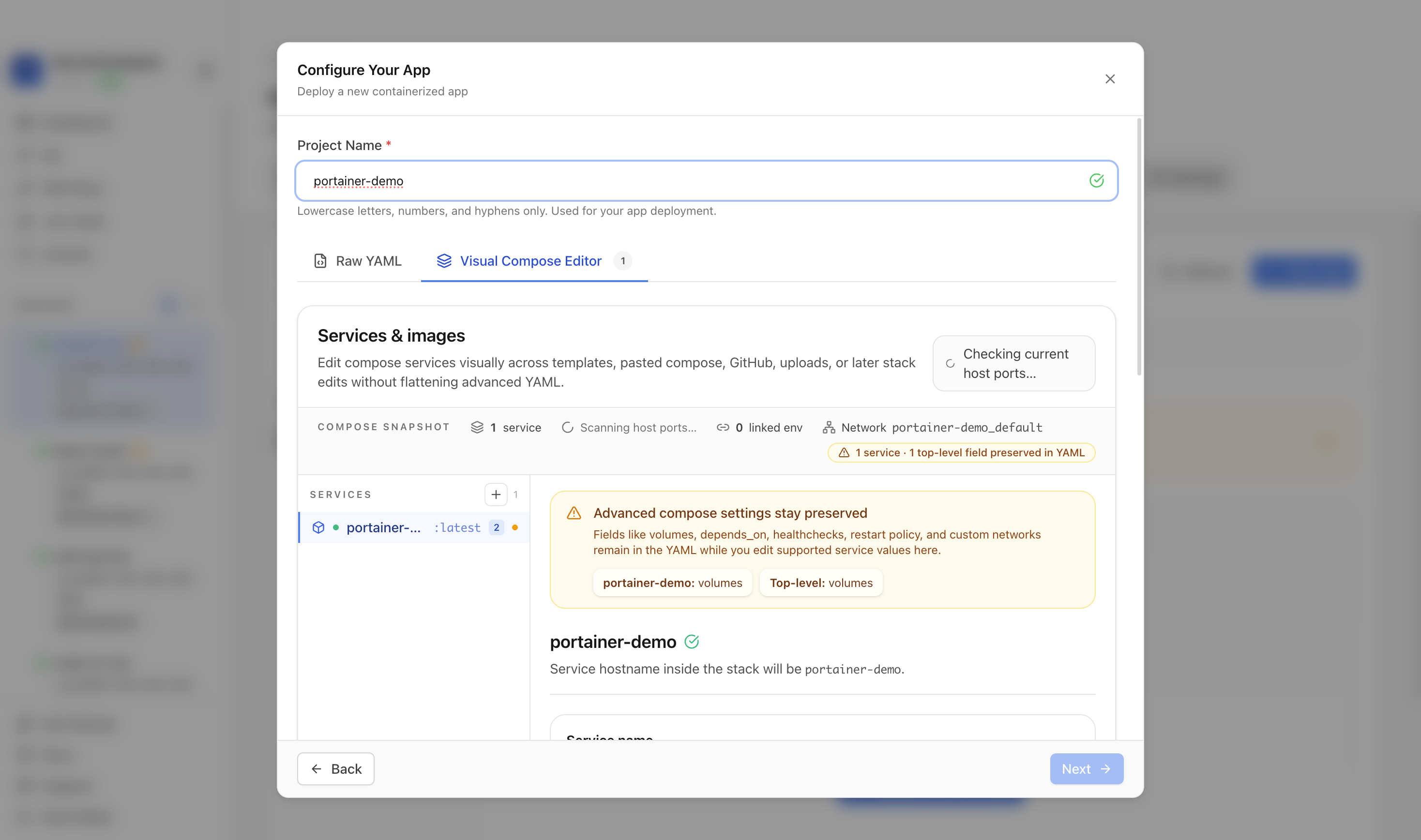

Step 5Review the Portainer settings
Confirm the app name and compose service. In this run, the app was named portainer-demo and used host port 9000.
6

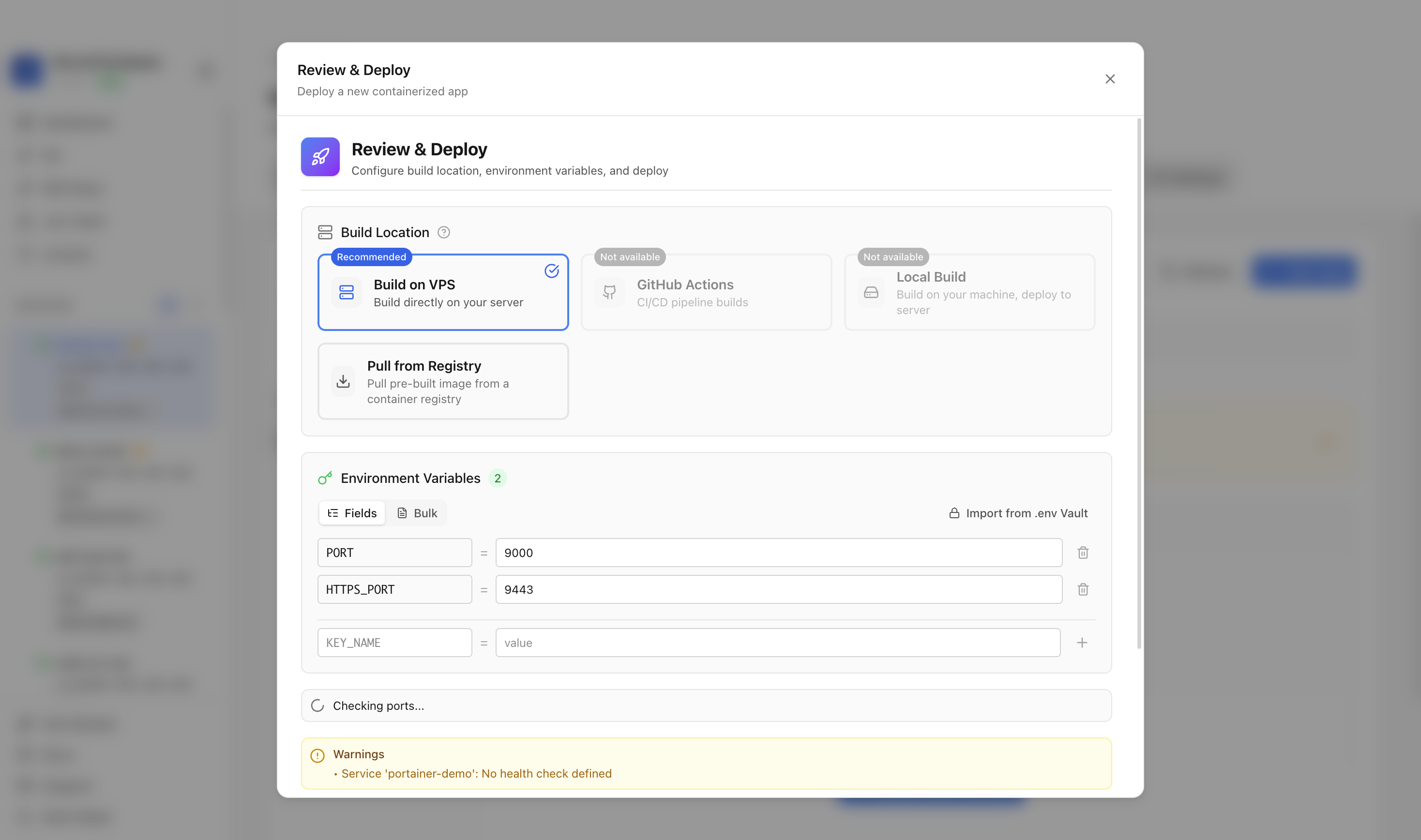

Step 6Deploy Portainer
Review the generated port bindings, confirm the HTTP and HTTPS ports are available, and click Deploy Now.
7
Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass uploads the compose file, pulls the Portainer image, starts the container, and verifies the stack.
8

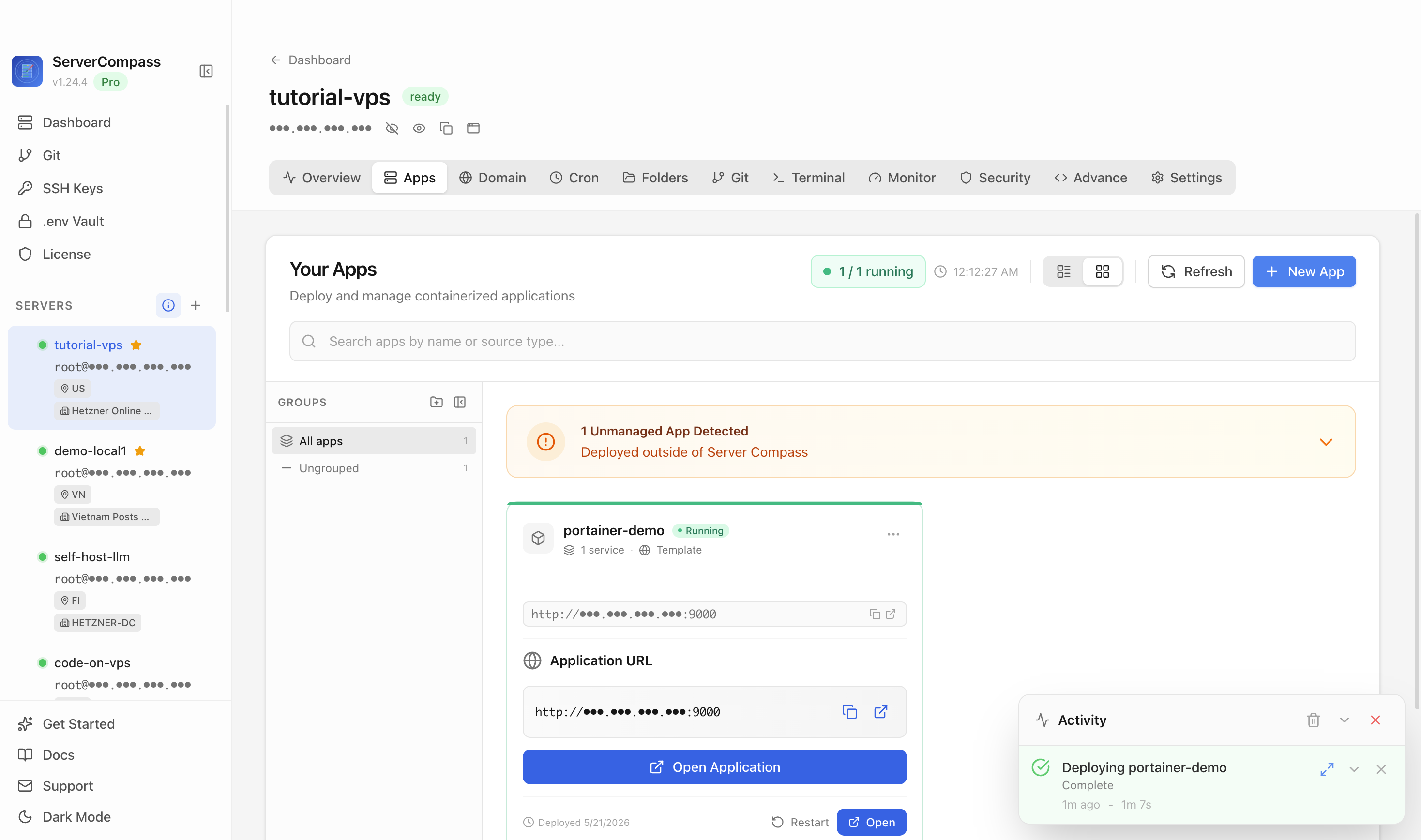

Step 8Confirm Portainer is running
After deployment finishes, return to the Apps tab and confirm the Portainer app is marked Running with its application URL available.
9

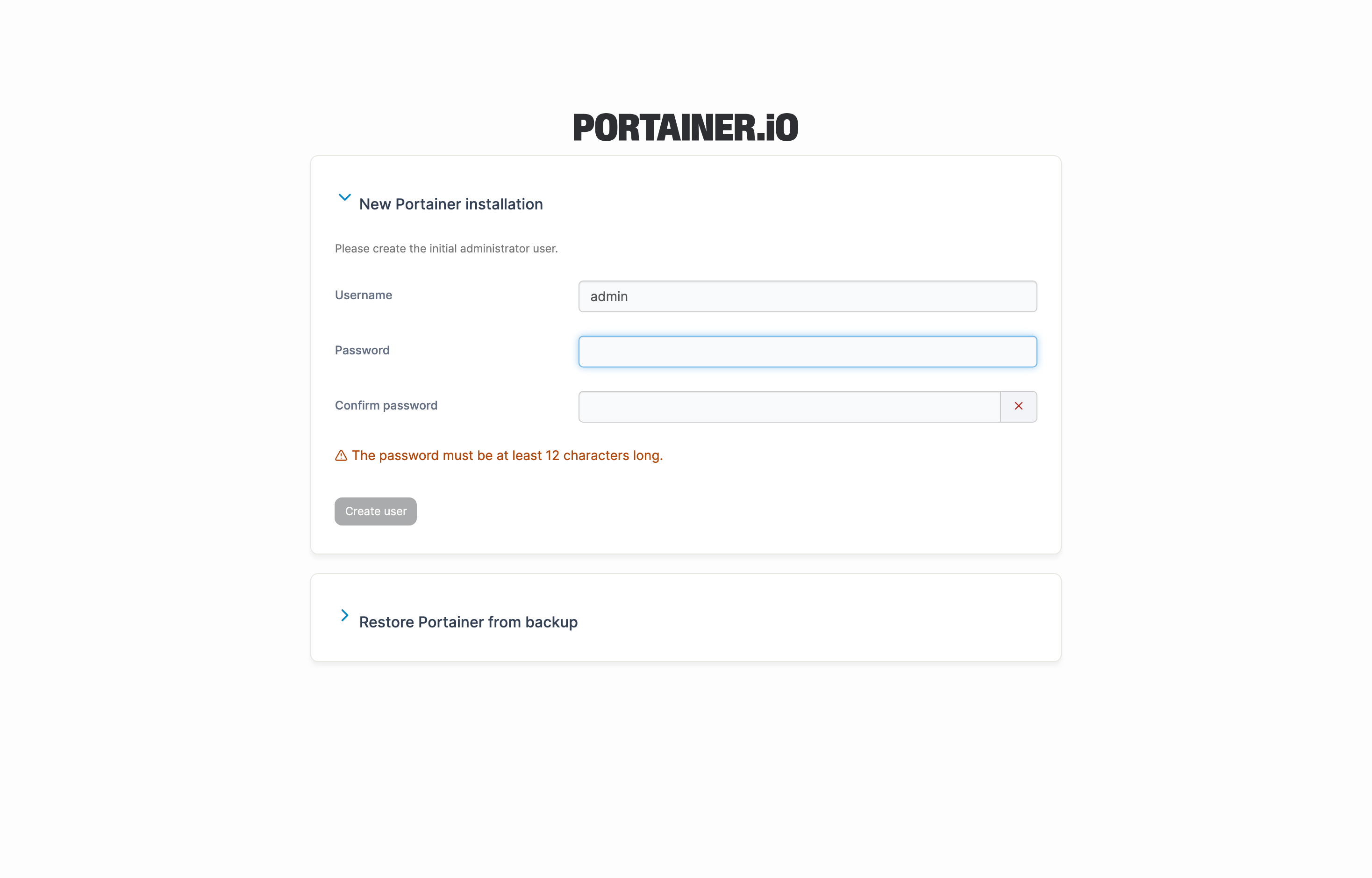

Step 9Open Portainer in the browser
Open the application URL in a browser. The Portainer initial administrator setup screen confirms the container management UI is reachable and ready for first-user setup.
After Portainer Opens
- Create the initial administrator account immediately after deployment.
- Connect Portainer to the local Docker environment when prompted.
- Use HTTPS before exposing Portainer beyond a trusted admin network.
- Limit access to the Portainer URL with firewall rules or a private network.
- Back up the Portainer data volume before relying on it for production operations.
Verified Result
The Portainer web app loaded successfully in a browser and displayed the initial administrator setup screen.
Portainer deployment questions
What does the Portainer template deploy?
It deploys the Portainer Community Edition container with a persistent data volume, the Docker socket mounted for local Docker management, and HTTP/HTTPS web ports.
Which port did the tutorial use?
The tutorial used host port 9000, which maps to the Portainer HTTP UI on container port 9000.
Why does the browser verification stop at the administrator setup screen?
A fresh Portainer deployment is considered reachable when the administrator setup screen loads. The public guide stops before creating real administrator credentials.
Should this become a blog post?
No. The deployment guide should live on the Portainer template detail page and be linked from the reusable template deployment docs page.
Self-Deploy Guide
DIY Portainer Deployment
Learn how to self-host Portainer with this hands-on deployment guide.
1
Access Your VPS via Terminal
Open a terminal session and log into your VPS. Replace the placeholder with your actual IP.
terminal
# Connect via SSH
ssh root@your-vps-ip
# Alternative with key file
ssh -i /path/to/key root@your-vps-ipFirst time? Make sure Docker is installed on your VPS. Run: curl -fsSL https://get.docker.com | sh
2
Set Up Project Folder
Create a workspace for your deployment files.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/portainer
cd ~/apps/portainer3
Create the Compose File
Configure your containers with this Docker Compose setup:
docker-compose.yml
services:
portainer:
image: portainer/portainer-ce:latest
ports:
- "9000:9000"
- "9443:9443"
volumes:
- /var/run/docker.sock:/var/run/docker.sock
- portainer_data:/data
restart: unless-stopped
volumes:
portainer_data:
Setup Variables
PORTHTTP port(default: 9000)HTTPS_PORTHTTPS port(default: 9443)4
Deploy Your Stack
Spin up the containers and verify the deployment.
terminal
# Start all services
docker compose up -d
# List running containers
docker compose ps
# Watch the logs
docker compose logs -f5
Update Firewall Settings
Allow incoming traffic on the application port.
terminal
# Allow the application port through firewall
sudo ufw allow 9000/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:9000Skip the Terminal
Skip the terminal. Use Server Compass instead.
Let Server Compass handle the complexity. Deploy Portainer with a simple, intuitive interface.
- Beautiful interface
- One-click deploys
- Let's Encrypt SSL
- Zero downtime
- Container monitoring
- Easy rollbacks
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying Portainer with Server Compass, complete these steps to finish setup
1
Create admin account
2
Add Docker environment
Need help? Check out our documentation for detailed guides.
Portainer FAQ
Common questions about self-hosting Portainer
How do I deploy Portainer with Server Compass?
Simply download Server Compass, connect to your VPS, and select Portainer from the templates list. Fill in the required configuration and click Deploy. The entire process takes under 3 minutes.
What are the system requirements for Portainer?
Portainer requires a minimum of 256MB RAM. We recommend a VPS with at least 1024MB RAM for optimal performance. Any modern Linux server with Docker support will work.
Can I migrate my existing Portainer data?
Yes! Server Compass provides volume mapping that allows you to import existing data. You can also use standard Portainer backup and restore procedures.
How do I update Portainer to the latest version?
Server Compass makes updates easy. Simply click the Update button in your deployment dashboard, and the latest Portainer image will be pulled and deployed with zero downtime.
Is Portainer free to self-host?
Portainer is open-source software. You only pay for your VPS hosting (typically $5-20/month) and optionally Server Compass ($29 one-time). No subscription fees or per-seat pricing.
