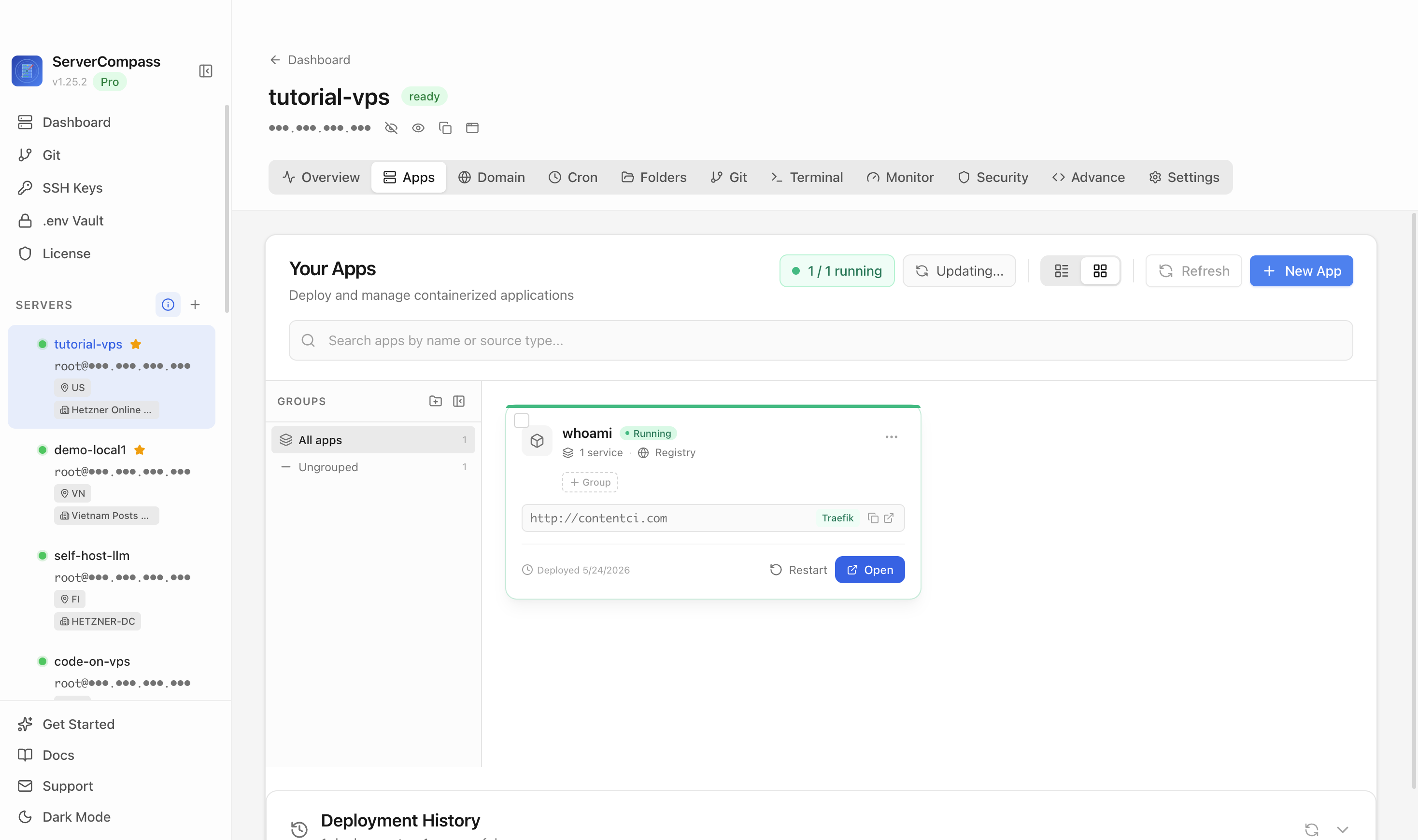

Step 1Open the server Apps tab
Select the tutorial-vps VPS, open the Apps tab, and start a new app deployment. Keep sensitive server details hidden before capturing or sharing screenshots.
Back to all templates
SonarQube
Development2048MB+ RAM
Code quality and security analysis
code-qualitysecurityanalysis
Deploy SonarQube in 3 Steps
1
Connect Your VPS
Add your server credentials to Server Compass
2
Select SonarQube
Choose from our template library
3
Deploy & Configure
Fill in settings and click Deploy
No Docker knowledge required
Step-by-step deployment guide
Deploy SonarQube on a VPS with Server Compass
Use the SonarQube template in Server Compass to deploy a self-hosted code quality and security analysis platform with PostgreSQL on your VPS, then verify the SonarQube login screen in a browser.
About 10 minutesBrowser verified
2

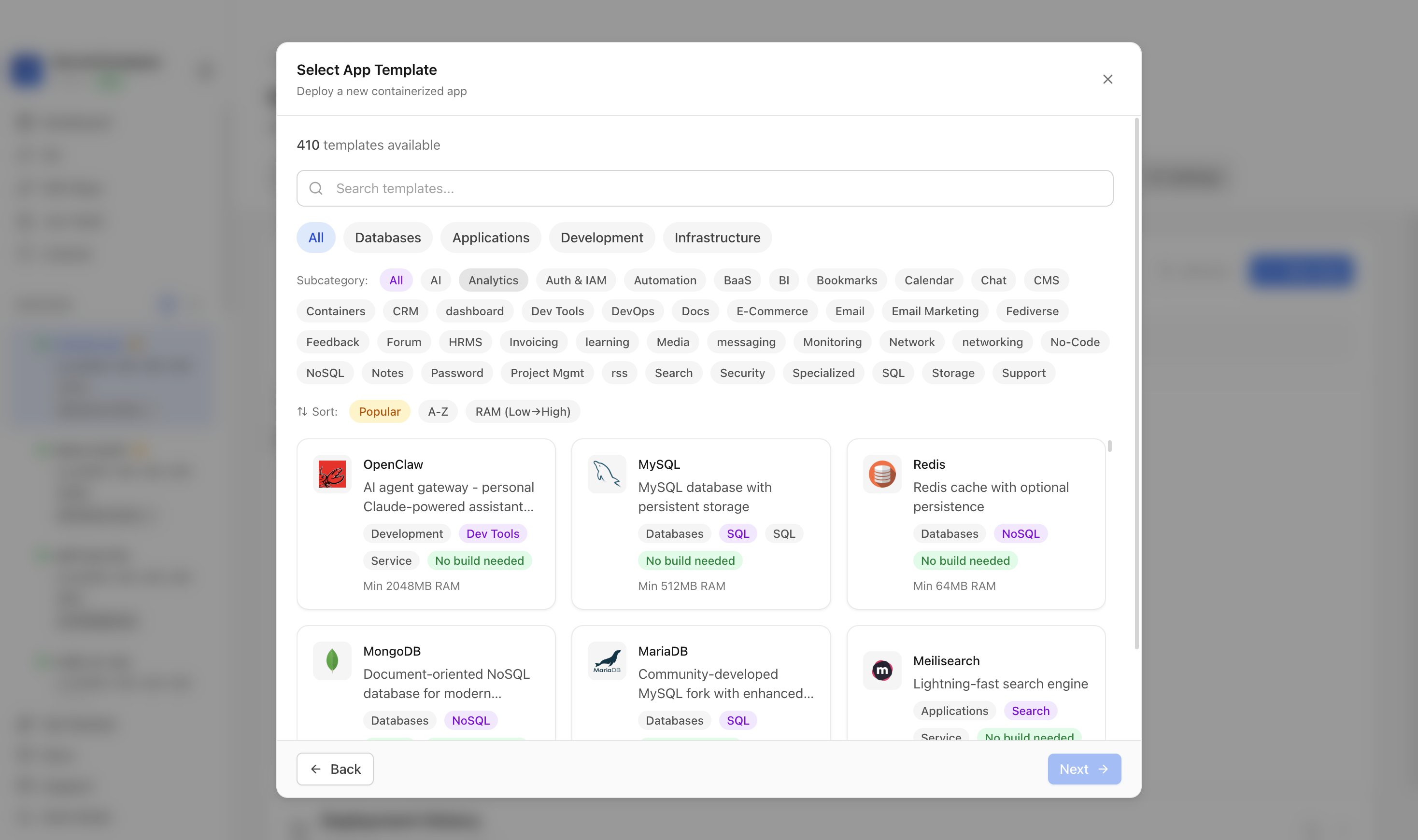

Step 2Choose an app template
Click New App and choose the template deployment path so Server Compass can load the built-in catalog.
3

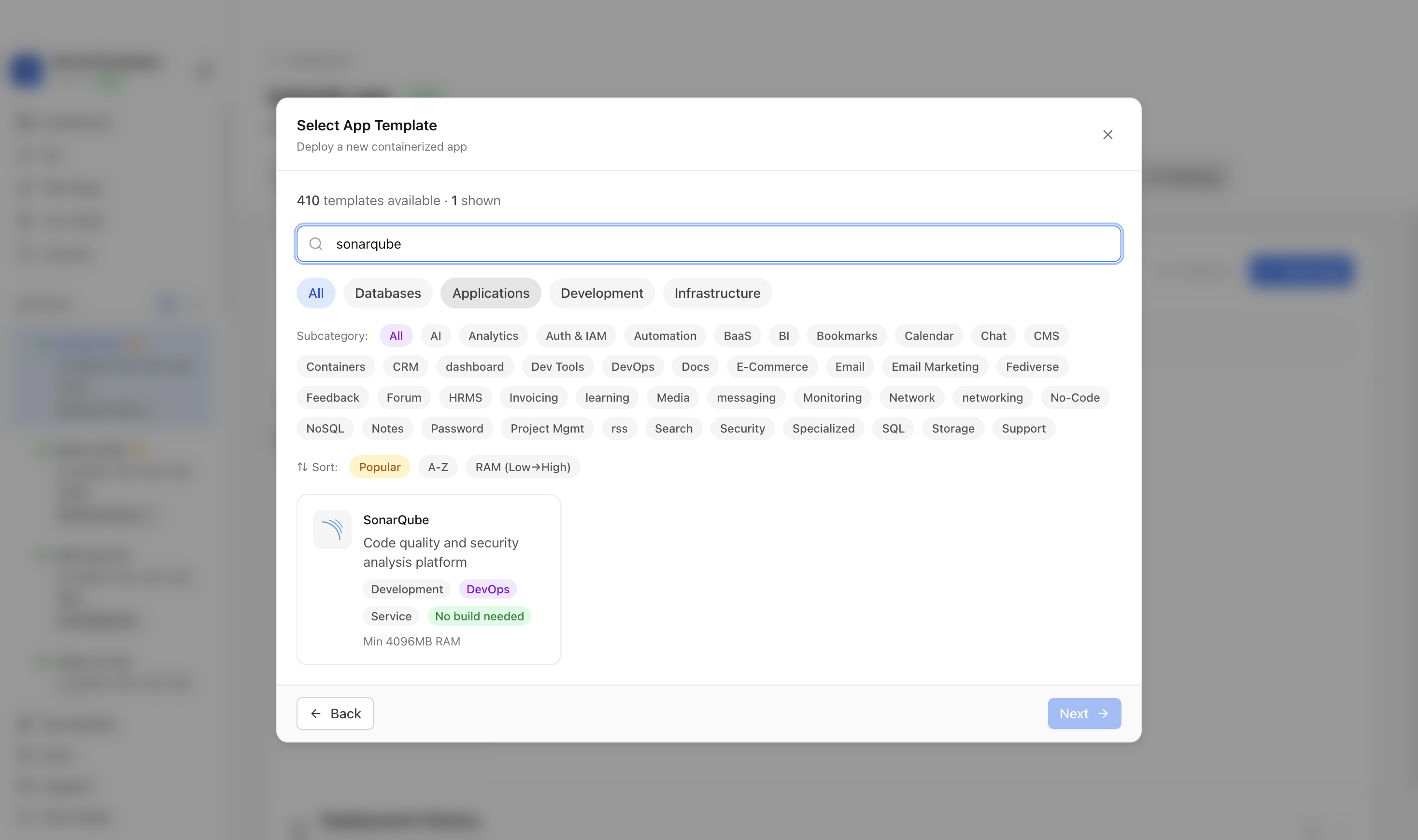

Step 3Search for SonarQube
Use the template picker search to find SonarQube in the Server Compass template catalog.
4

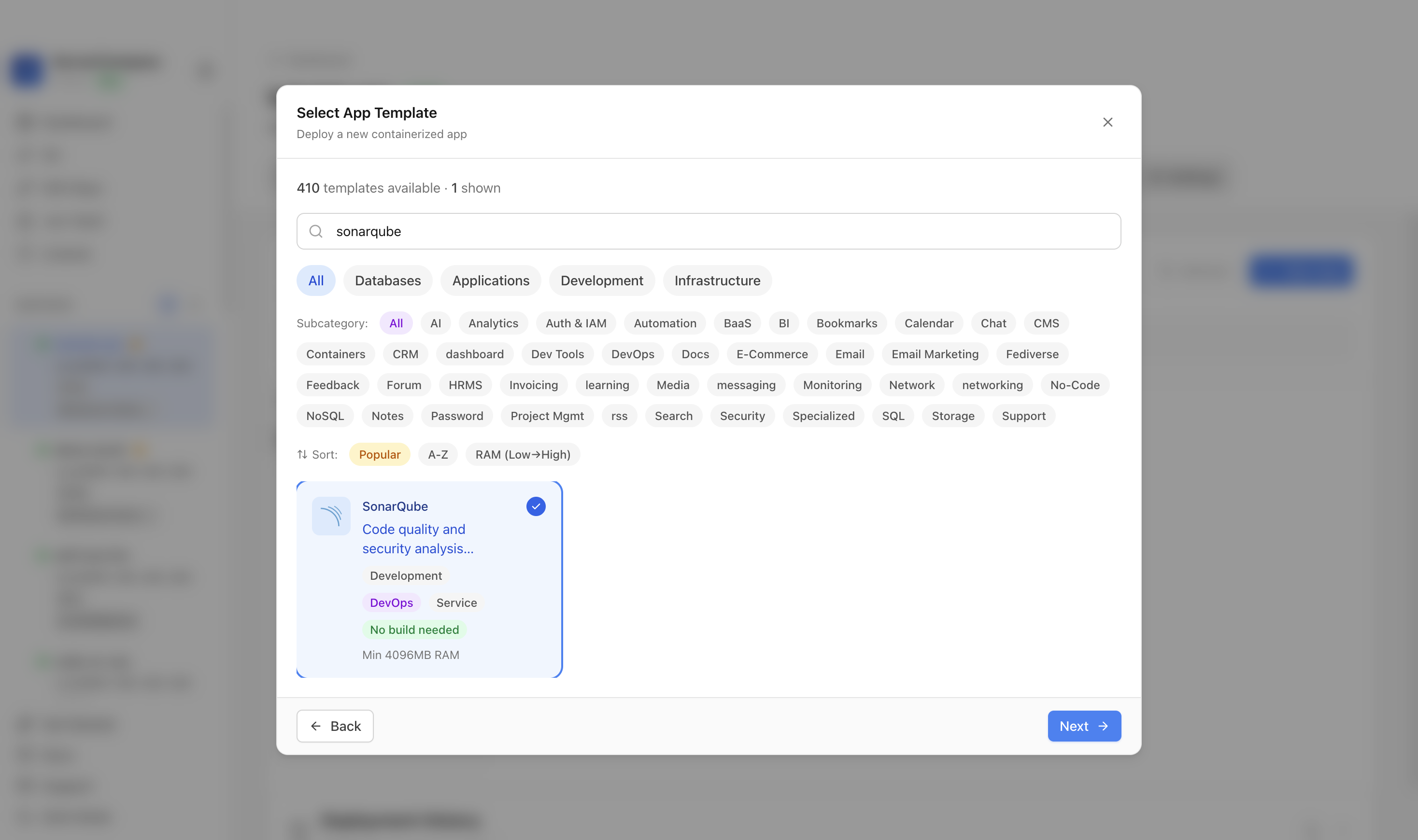

Step 4Select the SonarQube template
Choose the SonarQube template. Server Compass fills the SonarQube service, PostgreSQL service, persistent SonarQube volumes, and the required database password.
5

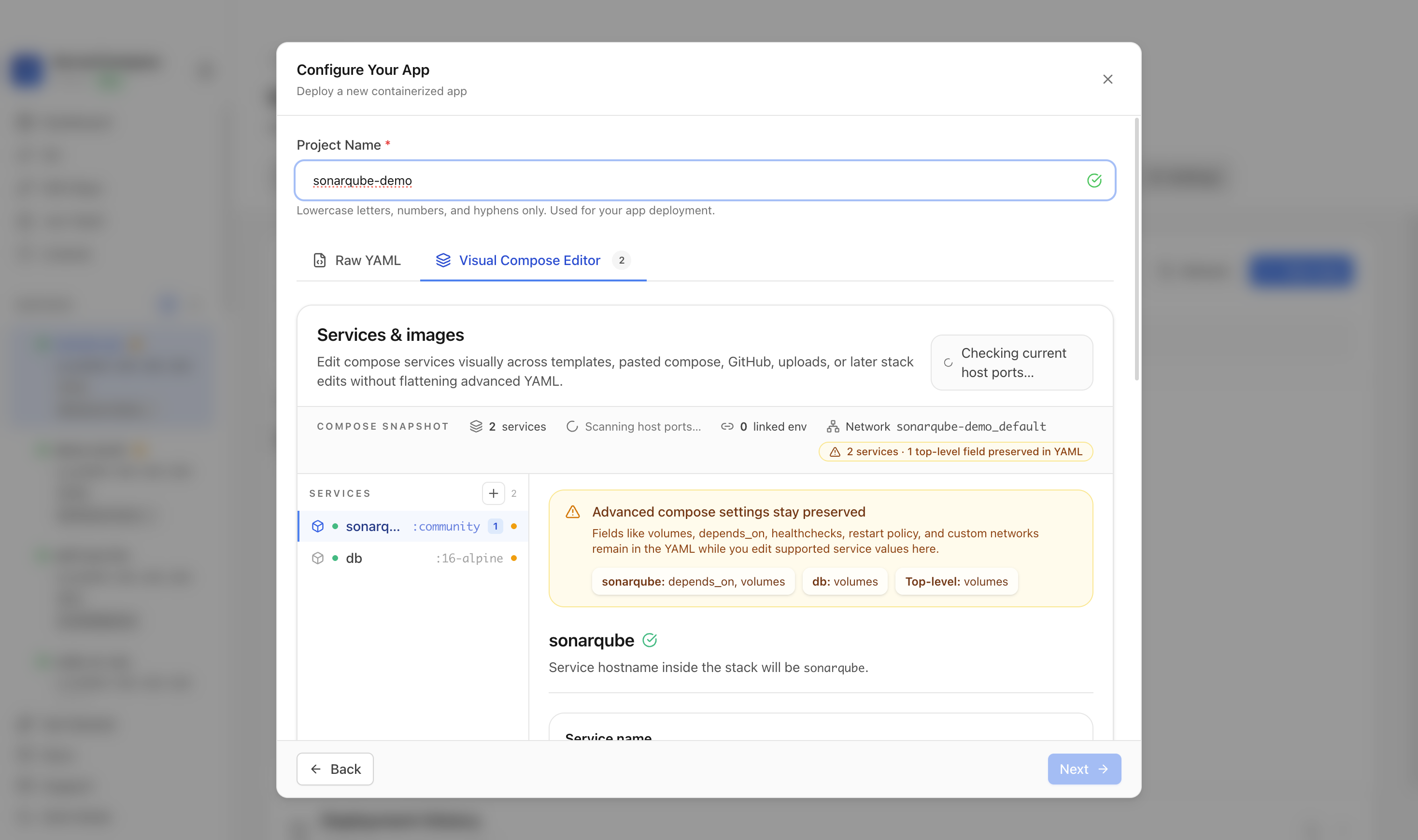

Step 5Review the SonarQube settings
Confirm the app name and compose services. In this run, the app was named sonarqube-demo and used host port 9000.
6

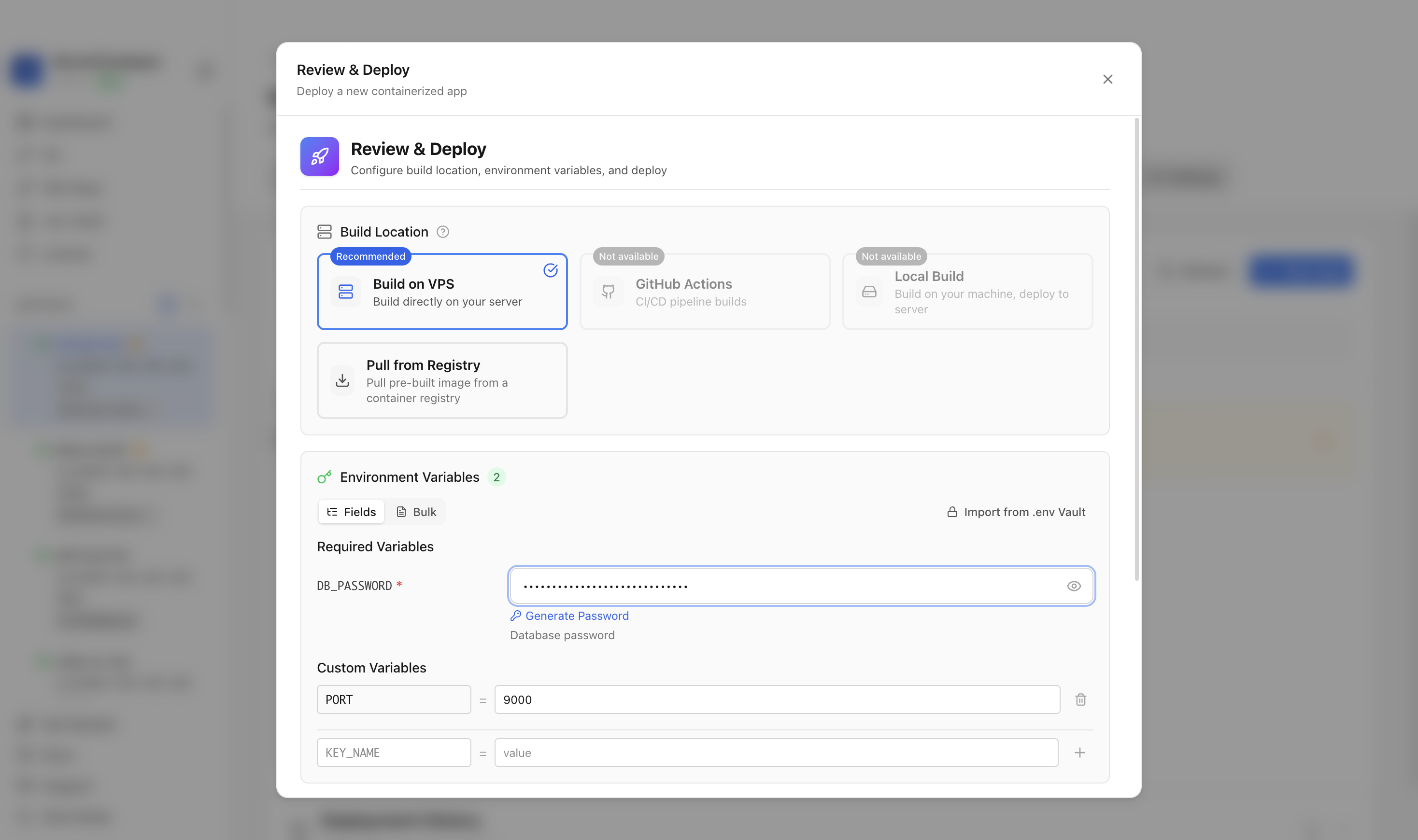

Step 6Deploy SonarQube
Review the generated environment values, keep the database password masked, confirm the web port is available, and click Deploy Now.
7

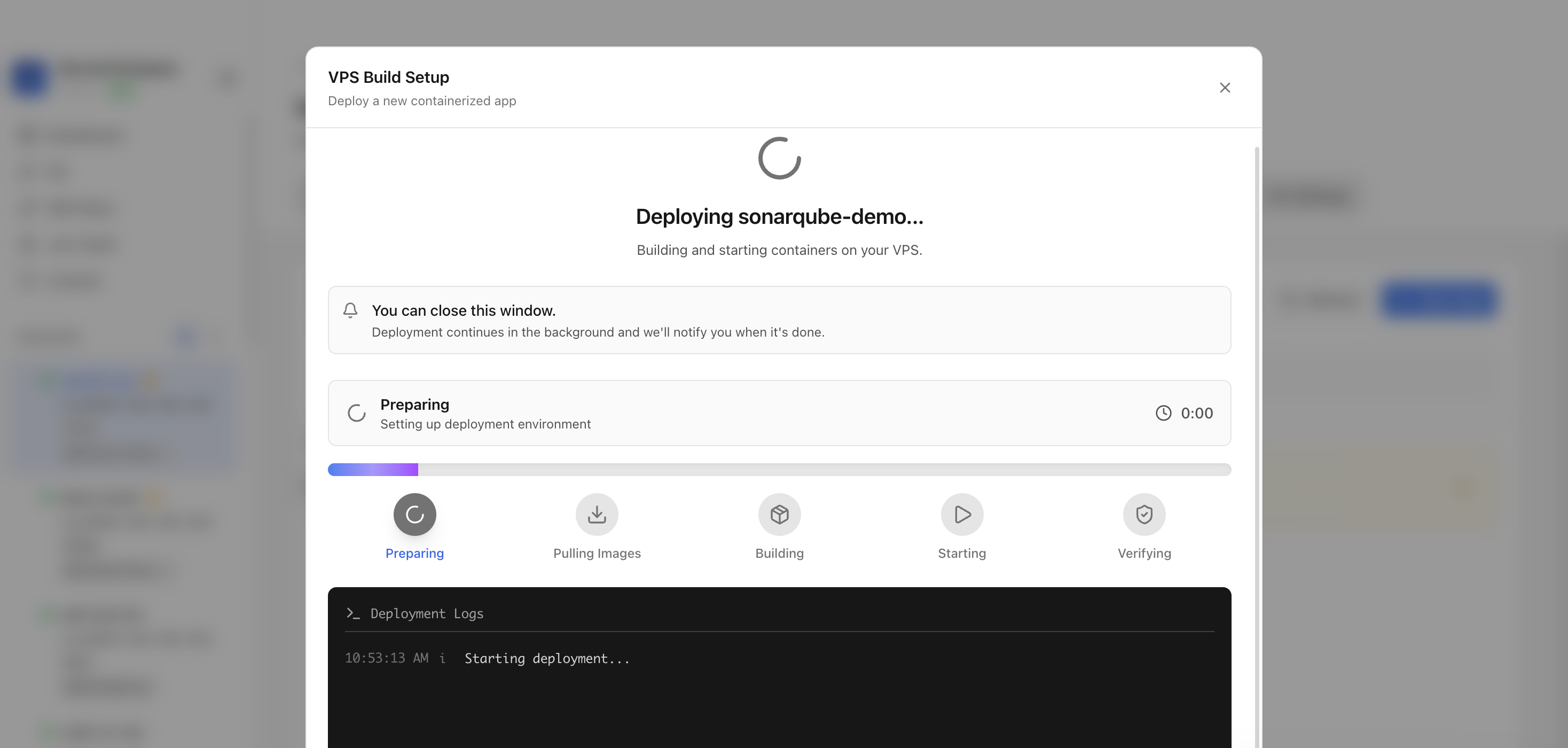

Step 7Watch the deployment progress
Keep the deployment modal open while Server Compass uploads the compose file, pulls the SonarQube and PostgreSQL images, starts the containers, and verifies the stack.
8

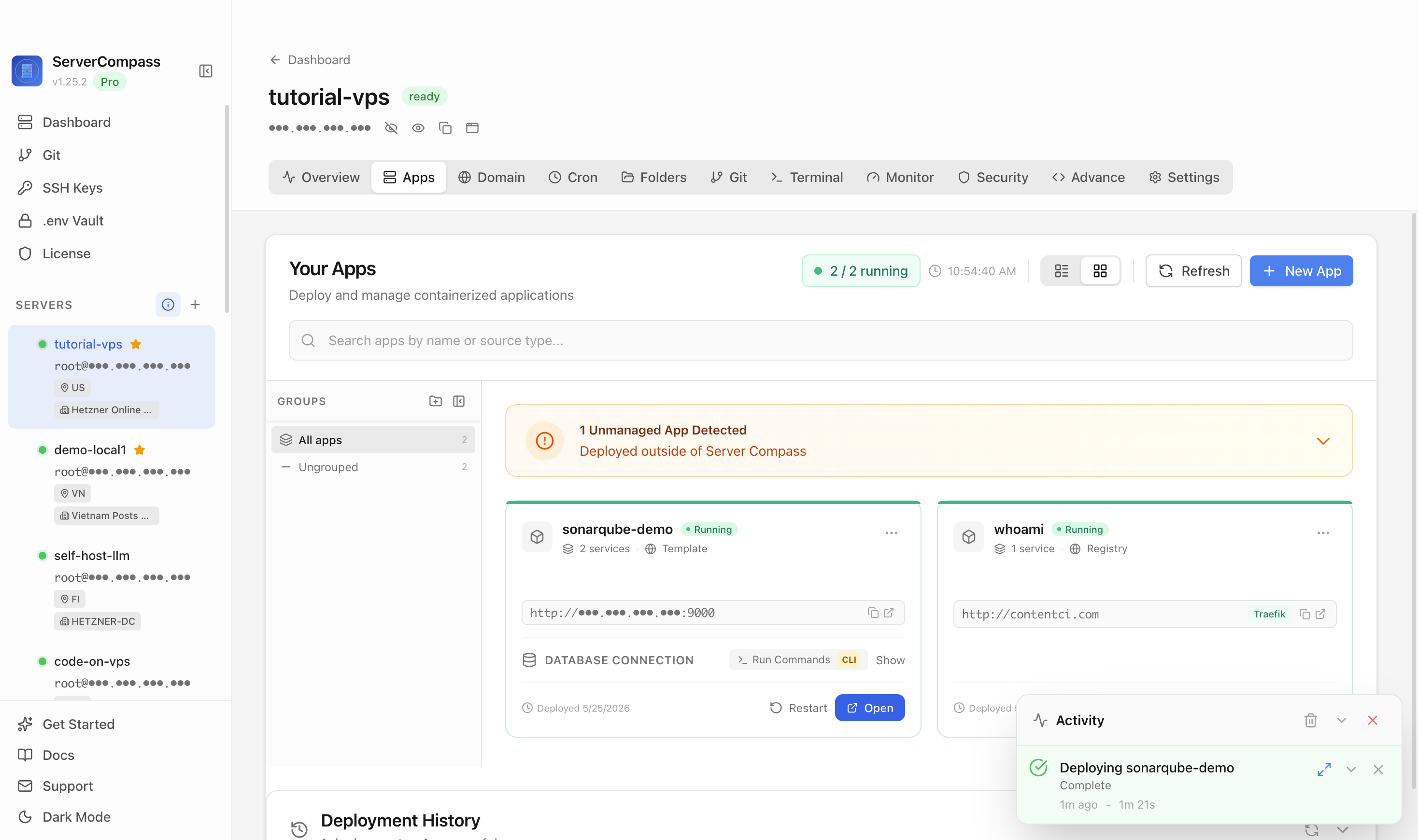

Step 8Confirm SonarQube is running
After deployment finishes, return to the Apps tab and confirm the SonarQube app is marked Running with its application URL available.
9

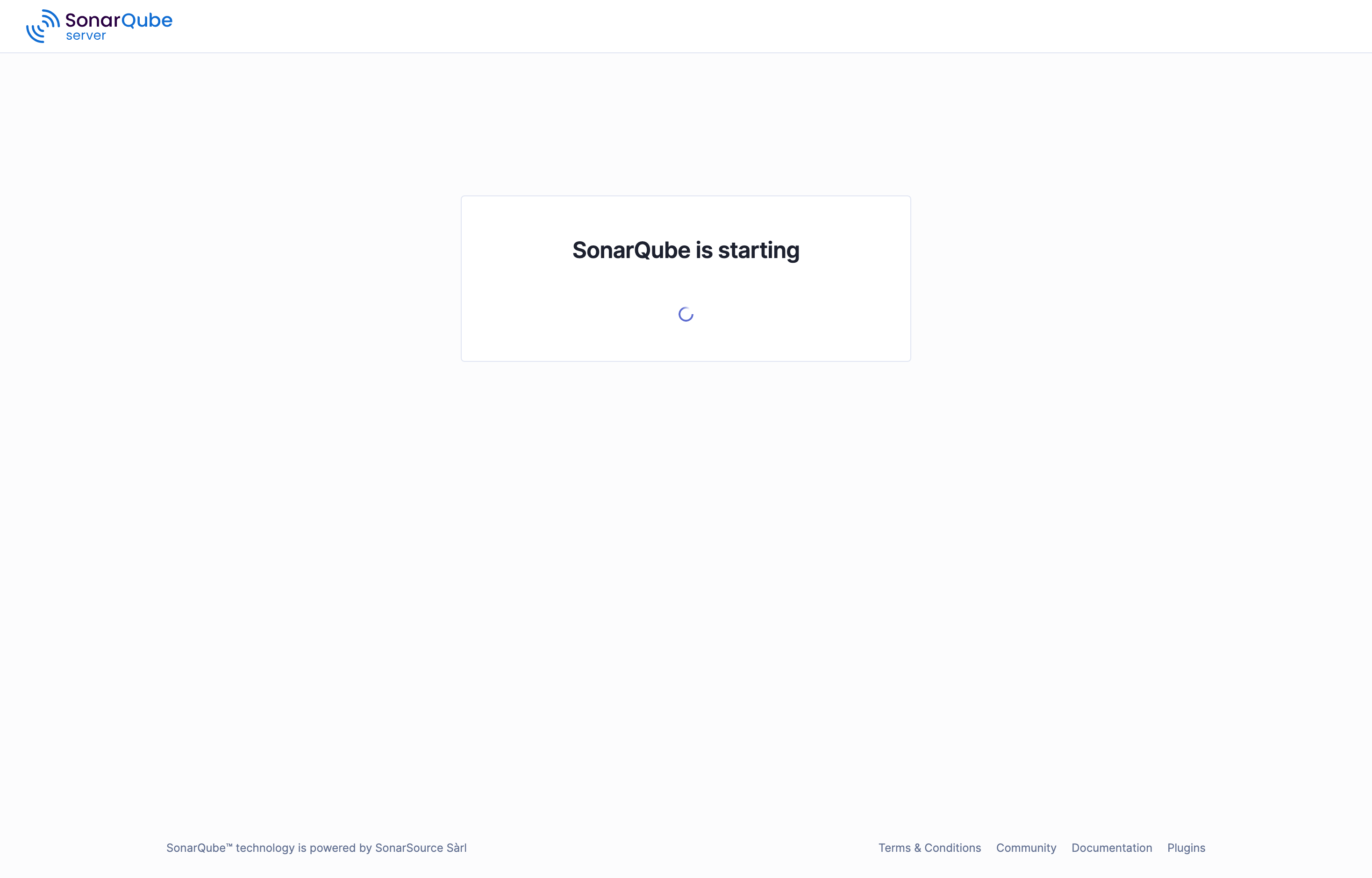

Step 9Open SonarQube in the browser
Click Open Application or open the application URL in a browser. The SonarQube login screen confirms the deployed analysis platform is reachable and ready for final setup.
After SonarQube Opens
- Sign in with the default administrator account and change the password immediately.
- Store the administrator credentials in a secure password manager.
- Keep the database password masked in screenshots and docs.
- Add a domain and HTTPS before inviting users or pushing repositories over the public internet.
- Configure projects, quality gates, scanners, and CI integration before production use.
- Back up the SonarQube data, extensions, logs, and PostgreSQL data volumes.
Verified Result
The SonarQube app loaded successfully in a browser and displayed the login screen.
SonarQube deployment questions
What does the SonarQube template deploy?
It deploys the SonarQube Community container with PostgreSQL 16, persistent SonarQube data/logs/extensions volumes, and a persistent database volume.
Which port did the tutorial use?
The tutorial used host port 9000, which maps to the SonarQube web UI on container port 9000.
Why does the browser verification stop at the login screen?
A fresh SonarQube deployment is considered reachable when the login screen loads. The public guide stops before signing in because production credentials and project setup are environment-specific.
Should this become a blog post?
No. The deployment guide should live on the SonarQube template detail page and be linked from the reusable template deployment docs page.
Self-Deploy Guide
DIY SonarQube Deployment
Learn how to self-host SonarQube with this hands-on deployment guide.
1
Open a Terminal Connection
Start by opening a terminal window and connecting to your VPS via SSH.
terminal
# Connect to your VPS
ssh root@your-server-ip
# Or with a specific SSH key
ssh -i ~/.ssh/your-key root@your-server-ipFirst time? Docker required! Install it with: curl -fsSL https://get.docker.com | sh
2
Create Application Directory
Create a dedicated space for your application deployment.
terminal
# Create and navigate to project directory
mkdir -p ~/apps/sonarqube
cd ~/apps/sonarqube3
Create Deployment Configuration
Create a docker-compose.yml file with the following configuration:
docker-compose.yml
services:
sonarqube:
image: sonarqube:community
ports:
- "9000:9000"
environment:
- SONAR_JDBC_URL=jdbc:postgresql://db:5432/sonarqube
- SONAR_JDBC_USERNAME=sonarqube
- SONAR_JDBC_PASSWORD=<your-db-password>
volumes:
- sonarqube_data:/opt/sonarqube/data
- sonarqube_logs:/opt/sonarqube/logs
- sonarqube_extensions:/opt/sonarqube/extensions
restart: unless-stopped
depends_on:
- db
db:
image: postgres:16-alpine
environment:
- POSTGRES_USER=sonarqube
- POSTGRES_PASSWORD=<your-db-password>
- POSTGRES_DB=sonarqube
volumes:
- postgres_data:/var/lib/postgresql/data
restart: unless-stopped
volumes:
sonarqube_data:
sonarqube_logs:
sonarqube_extensions:
postgres_data:
Setup Variables
PORTHost port(default: 9000)DB_PASSWORDDB password4
Launch Your Application
Deploy the stack and monitor the startup process.
terminal
# Spin up containers
docker compose up -d
# Verify deployment
docker compose ps
# Check logs for errors
docker compose logs -f5
Enable External Access
Set up firewall rules to permit incoming connections.
terminal
# Allow the application port through firewall
sudo ufw allow 9000/tcp
sudo ufw reload
# Access your app at:
# http://your-server-ip:9000Skip the Terminal
Skip the command line. Deploy visually.
Let Server Compass handle the complexity. Deploy SonarQube with a simple, intuitive interface.
- Visual config editor
- Instant deployment
- Automatic HTTPS
- Smooth updates
- Live monitoring
- Quick rollbacks
Download Server Compass$29 one-time • Lifetime license
After Deployment
After deploying SonarQube with Server Compass, complete these steps to finish setup
1
Set vm.max_map_count on host
2
Log in (admin/admin)
3
Change password
4
Create projects
Need help? Check out our documentation for detailed guides.
